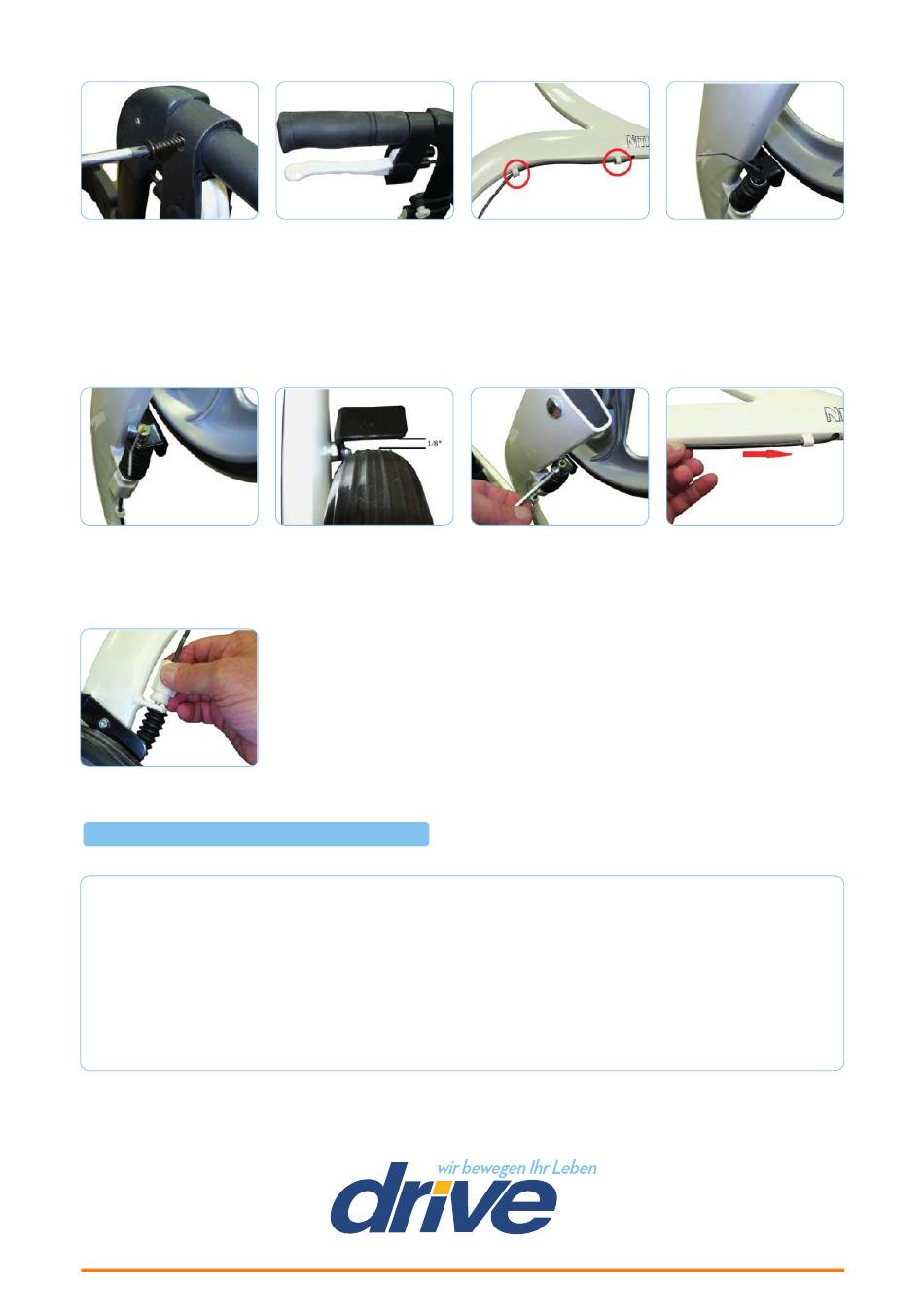

Slide the brake handle
on to the handle hous-
ing. As the brake is slide
forward pull on the brake
cable coming out of the
lower frame. Screw the
brake handle in place.
23
Slide the cable fastener on to the cable until the brake
blade is about 1/8" from the wheel.
27
Ihr Fachhändler – Your specialist Dealer:
dealerdealer
8
All manuals and user guides at all-guides.com
20
Slide the hand grip on to
the handle bar.
24
Use the cable adjuster to make any needed adjust-
ments to the brake. If the brake can not be adjusted
to engage the wheel, loosen the cable faster and re-
position as needed.
Stand / As per: 13. Oktober 2014 - Irrtum und Änderungen vorbehalten / Subject to error and change
Drive Medical GmbH & Co. KG • Leutkircher Straße 44 • D-88316 Isny/Allgäu • Germany
info@drivemedical.de • Tel.: +49 7562 9724-0 • Fax: +49 7562 9724-25
21
Slide the brake cable
thought the two lower
cable guides.
25
Tighten the cable fas-
tener.
22
Slide the brake cable
through the cable adjust-
er and spring.
26
Push any excess brake
cable in to the hole in the
lower frame.
