Drive Nitro Bedienungsanleitung Seite 7

Methode 2
1
4
Loosen the cable fastener with a 4mm Allen wrench
and remove.
7
Remove the cable from the cable guides.
11
Remove the screw holding the brake handle onto the
handle bar using a Phillips screw driver. Remove the
brake handle.
15
Push the new brake ca-
ble down until the brake
cable can be seen in the
cable hole in the bottom
of the frame.

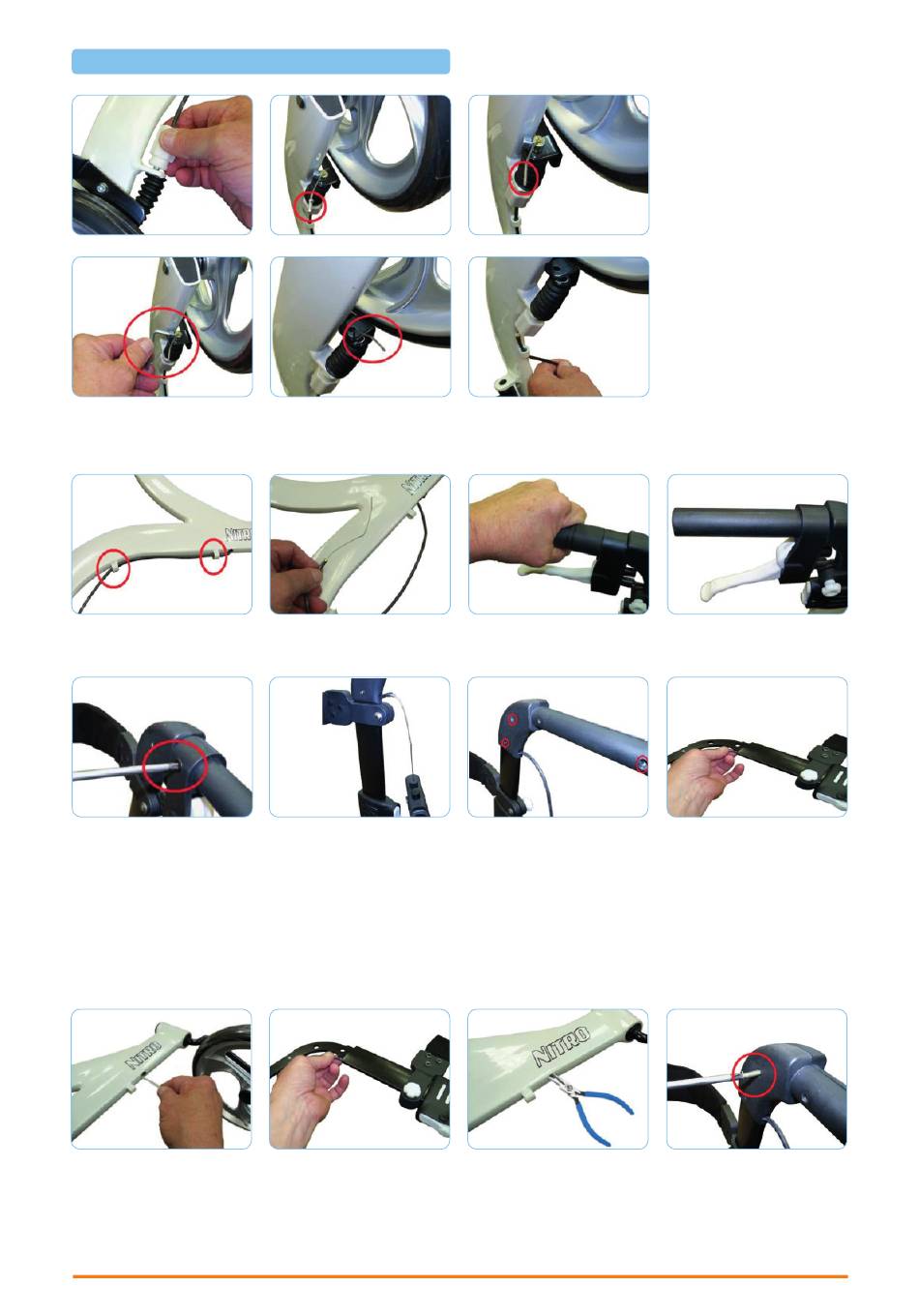

Replacing brake cable - Rollator Nitro
All manuals and user guides at all-guides.com
2
5
8
12
16
Using a long needle nose pliers grasp the brake ca-
ble through the cable hole and pull the cable out of
the frame.
3
6
Remove the brake cable
from the cable adjuster
and spring.
9
Grasp the handgrip and twist left and right to remove.
13
Remove the three screws
holding the handle bar
housing to the handle
bar frame using a Phil-
lips screw driver. Sepa-
rate the two half's of the
brake handle to remove
them from the hand bar.
17
Remove the crimp fitting
at the end of the brake
cable.
10
14
Pull up on the cable and
guide it through the hole
in the lower frame. Con-
tinue pulling until it is out
of the frame.
18
Attach the handle bar
housing back onto the
frame. The largest of the
three screws goes into
the center hole.
