13
Remove the three screws
holding the handle bar
housing to the handle
bar frame using a Phil-
lips screw driver. Sepa-
rate the two half's of the
brake handle to remove
them from the hand bar.
17
Attach the handle bar
housing back onto the
frame. The largest of the
three screws goes into
the center hole.
21
Slide the brake cable
through the cable adjust-
er and spring.
25
Push any excess brake
cable in to the hole in the
lower frame.
6

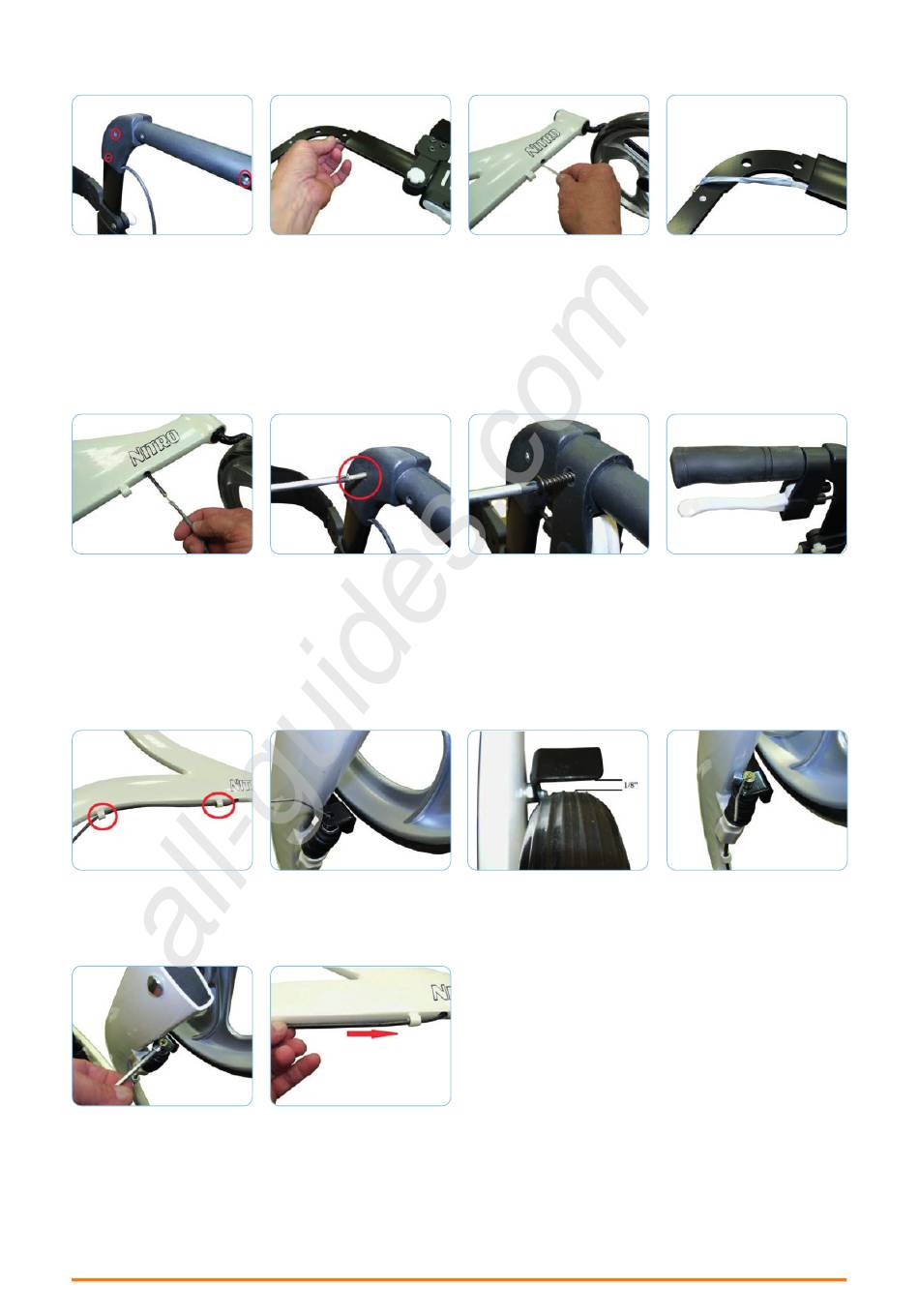

Replacing brake cable - Rollator Nitro
All manuals and user guides at all-guides.com
14
Pull up on the cable and
guide it through the hole
in the lower frame. Con-
tinue pulling until it is out
of the frame. Make sure
the cord is not pulled into
the frame.
18
Slide the brake handle
on to the handle hous-
ing. As the brake is slide
forward pull on the brake
cable coming out of the
lower frame. Screw the
brake handle in place.
22
Slide the cable fastener on to the cable until the brake
blade is about 1/8" from the wheel.
26
15
Remove the cord from
the old brake and tape
the cord to the cable of
the new brake. Do not
tape the cord to the cable
housing. Do not make
the taped section wider
then the cable housing.
19
Slide the hand grip on to
the handle bar.
23
Use the cable adjuster to make any needed adjust-
ments to the brake. If the brake can not be adjusted
to engage the wheel, loosen the cable faster and re-
position as needed.
16
Pull the cord until the brake
cable comes through the
bottom of the frame.
20
Slide the brake cable
thought the two lower
cable guides.
24
Tighten the cable fas-
tener.
