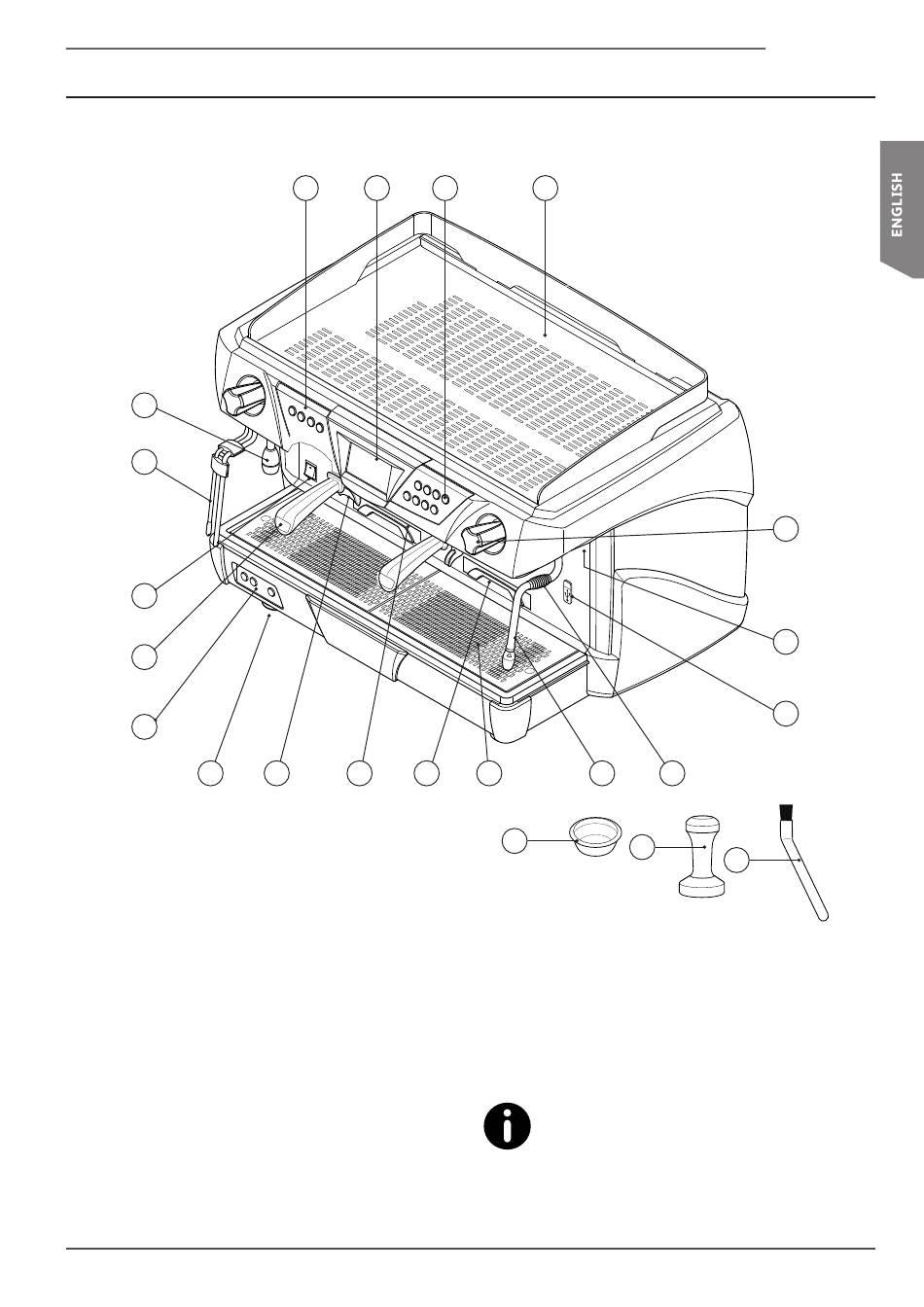

2.5 Machine diagram

13
14
4
12
16
15
1. Cup warmer shelf
2. Pushbutton panel for coffee and tea selections
3. Touchscreen display
4. Machine ON switch
5. Steam knob
6. Anti-burn rubber seal
7. USB port
8. Steam dispensing nozzle
9. Tray and cup support grille
10. Pull-out cup support grille
11. Automatic steam wand air regulator
12. Filter holder
13. hot water dispensing spout
14. Automatic steam wand nozzle (optional)
User Manual
2 3 2
17 18 10
1
9 8
19
20
15. Adjustable foot
16. Automatic steam wand pushbutton panel (optional)
17. Dispensing spouts
18. Dispensing compartment light
19. Blind filter
20. Presser
21. Cleaning brush
The only stick that can be used in the USB port (7)
is the USB stick provided exclusively to the Techni-
cian. Do not connect external devices (iPhones,
iPads, PCs, etc.) to the USB port because it could create seri-
ous machine software problems.
Plus4YouTS
5
11
7
6
21
