Refrigerant
(CE) N 842/2006: This unit contains the refrigerant R290. The amount of
refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant
does have zero ozone depletion potential, but is a so-called greenhouse
gases under the Kyoto Protocol and may thus contribute to global warming,
if it is released to the atmosphere. Therefore only trained technicians with
refrigerant certificate make a filling or emptying. Your appliance does not
have be refilled with refrigerant if used properly and has an undamaged
coolant circuit. GWP: R290: 3

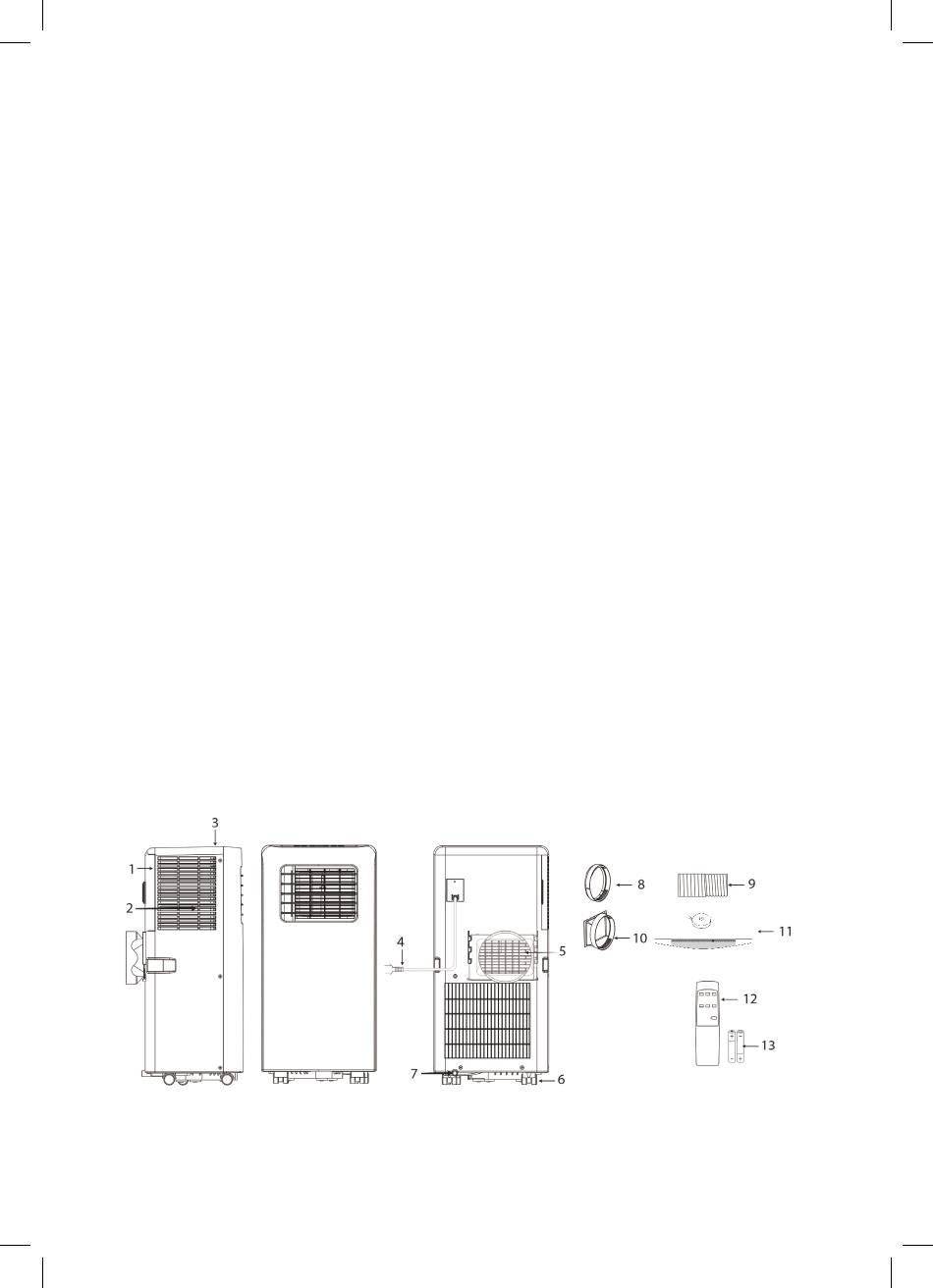

PARTS DESCRIPTION

1. Air inlet
2. Air filter
3. Control panel
4. Power cord
5. Air outlet
6. Castor
7. Drainage hole
8. Hose connector (window end)
9. Hot-air exhaust hose
10. Hose connector (Air conditioner end)
11. Window seal + Velcro
12. Remote control
13. Batteries
