Functional Description - Lindemann LIMETREE BRIDGE II Bedienungsanleitung

20 EN

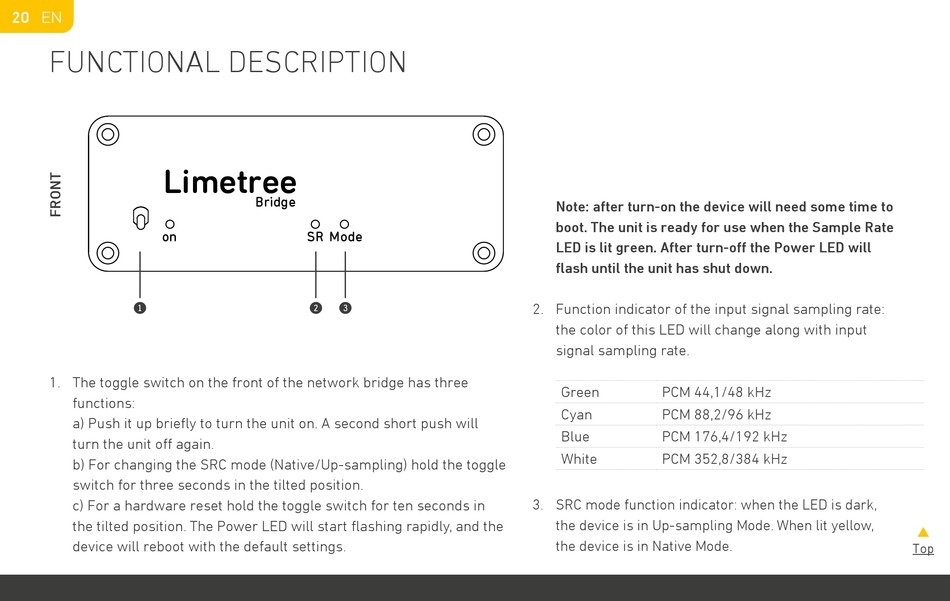

FUNCTIONAL DESCRIPTION

Limetree
on
1
1. The toggle switch on the front of the network bridge has three
functions:
a) Push it up briefly to turn the unit on. A second short push will
turn the unit off again.
b) For changing the SRC mode (Native/Up-sampling) hold the toggle
switch for three seconds in the tilted position.
c) For a hardware reset hold the toggle switch for ten seconds in
the tilted position. The Power LED will start flashing rapidly, and the
device will reboot with the default settings.
Bridge
SR Mode
2 3
Note: after turn-on the device will need some time to
boot. The unit is ready for use when the Sample Rate
LED is lit green. After turn-off the Power LED will
flash until the unit has shut down.
2. Function indicator of the input signal sampling rate:
the color of this LED will change along with input
signal sampling rate.
Green PCM 44,1/48 kHz
Cyan PCM 88,2/96 kHz
Blue PCM 176,4/192 kHz
White PCM 352,8/384 kHz
3. SRC mode function indicator: when the LED is dark,
the device is in Up-sampling Mode. When lit yellow,
the device is in Native Mode.

