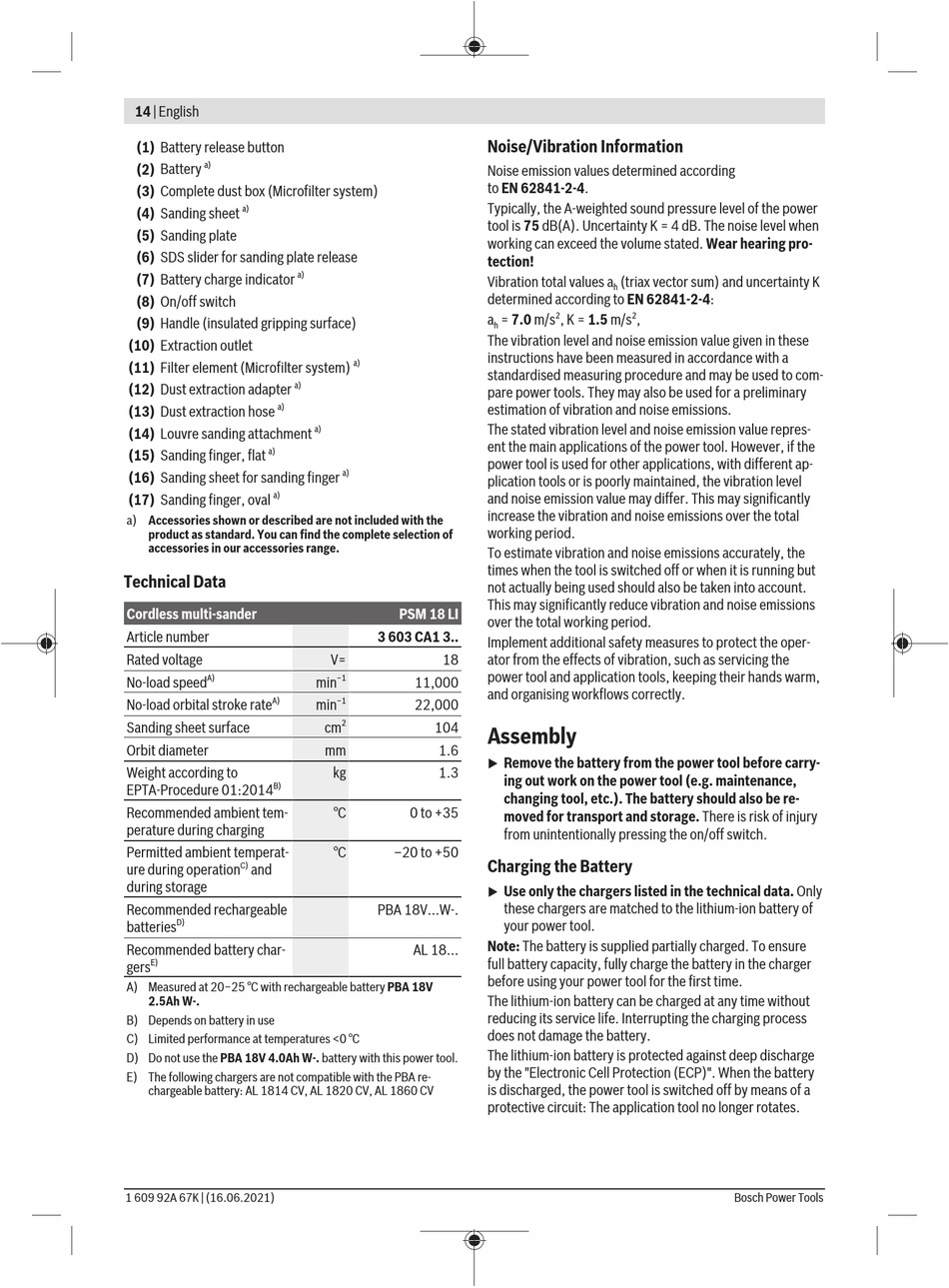

14 | English
(1) Battery release button
a)
(2) Battery
(3) Complete dust box (Microfilter system)
a)
(4) Sanding sheet
(5) Sanding plate
(6) SDS slider for sanding plate release
a)
(7) Battery charge indicator
(8) On/off switch
(9) Handle (insulated gripping surface)
(10) Extraction outlet
(11) Filter element (Microfilter system)
a)
(12) Dust extraction adapter
a)
(13) Dust extraction hose
(14) Louvre sanding attachment
a)
(15) Sanding finger, flat
(16) Sanding sheet for sanding finger
a)
(17) Sanding finger, oval
a) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.

Technical Data

Cordless multi-sander
Article number
Rated voltage
A)
No-load speed
A)
No-load orbital stroke rate
Sanding sheet surface
Orbit diameter
Weight according to
B)
EPTA-Procedure 01:2014
Recommended ambient tem-
perature during charging
Permitted ambient temperat-
C)
ure during operation and
during storage
Recommended rechargeable
D)
batteries
Recommended battery char-
E)
gers
A) Measured at 20−25 °C with rechargeable battery PBA 18V
2.5Ah W-.
B) Depends on battery in use
C) Limited performance at temperatures <0 °C
D) Do not use the PBA 18V 4.0Ah W-. battery with this power tool.
E) The following chargers are not compatible with the PBA re-
chargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV
1 609 92A 67K | (16.06.2021)

Noise/Vibration Information

Noise emission values determined according
to EN 62841-2-4.
Typically, the A-weighted sound pressure level of the power
tool is 75 dB(A). Uncertainty K = 4 dB. The noise level when
working can exceed the volume stated. Wear hearing pro-
tection!
Vibration total values a
determined according to EN 62841-2-4:
a
The vibration level and noise emission value given in these
instructions have been measured in accordance with a
a)
standardised measuring procedure and may be used to com-
pare power tools. They may also be used for a preliminary
estimation of vibration and noise emissions.
The stated vibration level and noise emission value repres-
a)
ent the main applications of the power tool. However, if the
power tool is used for other applications, with different ap-
a)
plication tools or is poorly maintained, the vibration level
and noise emission value may differ. This may significantly
increase the vibration and noise emissions over the total
working period.
To estimate vibration and noise emissions accurately, the
times when the tool is switched off or when it is running but
not actually being used should also be taken into account.
This may significantly reduce vibration and noise emissions
PSM 18 LI
over the total working period.
3 603 CA1 3..
Implement additional safety measures to protect the oper-
ator from the effects of vibration, such as servicing the
V= 18
power tool and application tools, keeping their hands warm,
−1
min 11,000
and organising workflows correctly.
−1
min 22,000
2
cm 104
Assembly
mm 1.6
u
kg 1.3
°C 0 to +35
°C –20 to +50

Charging the Battery

u
PBA 18V...W-.
Note: The battery is supplied partially charged. To ensure
AL 18...
full battery capacity, fully charge the battery in the charger
before using your power tool for the first time.
The lithium-ion battery can be charged at any time without
reducing its service life. Interrupting the charging process
does not damage the battery.
The lithium-ion battery is protected against deep discharge
by the "Electronic Cell Protection (ECP)". When the battery
is discharged, the power tool is switched off by means of a
protective circuit: The application tool no longer rotates.
(triax vector sum) and uncertainty K
h
2 2
= 7.0 m/s , K = 1.5 m/s ,
h
Remove the battery from the power tool before carry-
ing out work on the power tool (e.g. maintenance,
changing tool, etc.). The battery should also be re-
moved for transport and storage. There is risk of injury
from unintentionally pressing the on/off switch.
Use only the chargers listed in the technical data. Only
these chargers are matched to the lithium-ion battery of
your power tool.
