1 Connect

Depending on the hardware, the Securepoint NextGen UTM and VPN
gateways are equipped with a different number of network cards LAN 1, LAN 2
to LAN n. The various hardware types and their properties can be found as an
overview in the Securepoint Wiki.
http://wiki.securepoint.de
Positioning in the network

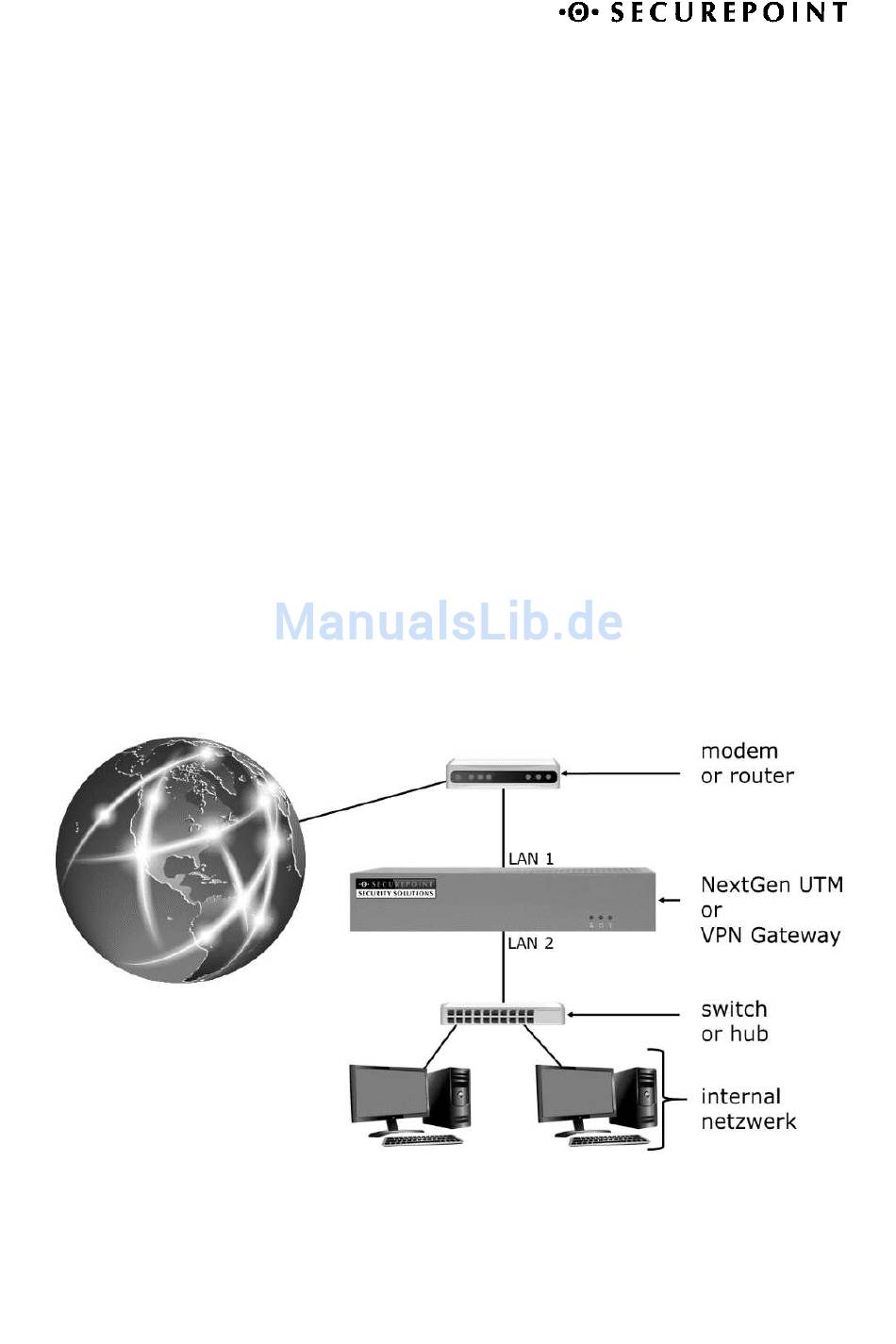

An appliance is placed behind the modem or router in the network structure. If
a network is run behind the appliance, a switch or hub must be connected. The
modem or router is connected to port LAN 1 of the appliance. The switch or, as
the case may be, the individual computer is connected to port LAN 2. The ports
LAN 3 to LAN n are intended for further networks. RJ45 cables are used for the
connections.
Note: If your computer does not have a Gigabit interface and you connect
directly to LAN 2 without a switch or hub, please use a crossover cable.
