Visualization:
The instrument can control many different measures, for shown every measure is possible to select three
different screens with the key Up and Down. In the default screen are shown the Chlorine measure, the
Redox measure, the temperature measure and the pH measure. In the second screen are shown the
resettable totalizer and the date from the last reset, if the date is not set the display will write "install". In the
third screen there are the Flow rate measure and the value of the permanent totalizer.
Functions:
•
Calibration (Press Cal Key for 3 Seconds):
Select the calibration routine for: Redox, pH, Chlorine or Flow rate by Up or Down key.
o
enter
Standard Routine calibration pH probe is 7 and 4 buffer solution and Redox 465 mV buffer
o
cal
solution.
•
Press Cal and Set Key (both) for 5 Seconds and run Program Setup:
Program_Menu
o
enter
§
cal
prog
esc
§
set
§
§
§
0000137936

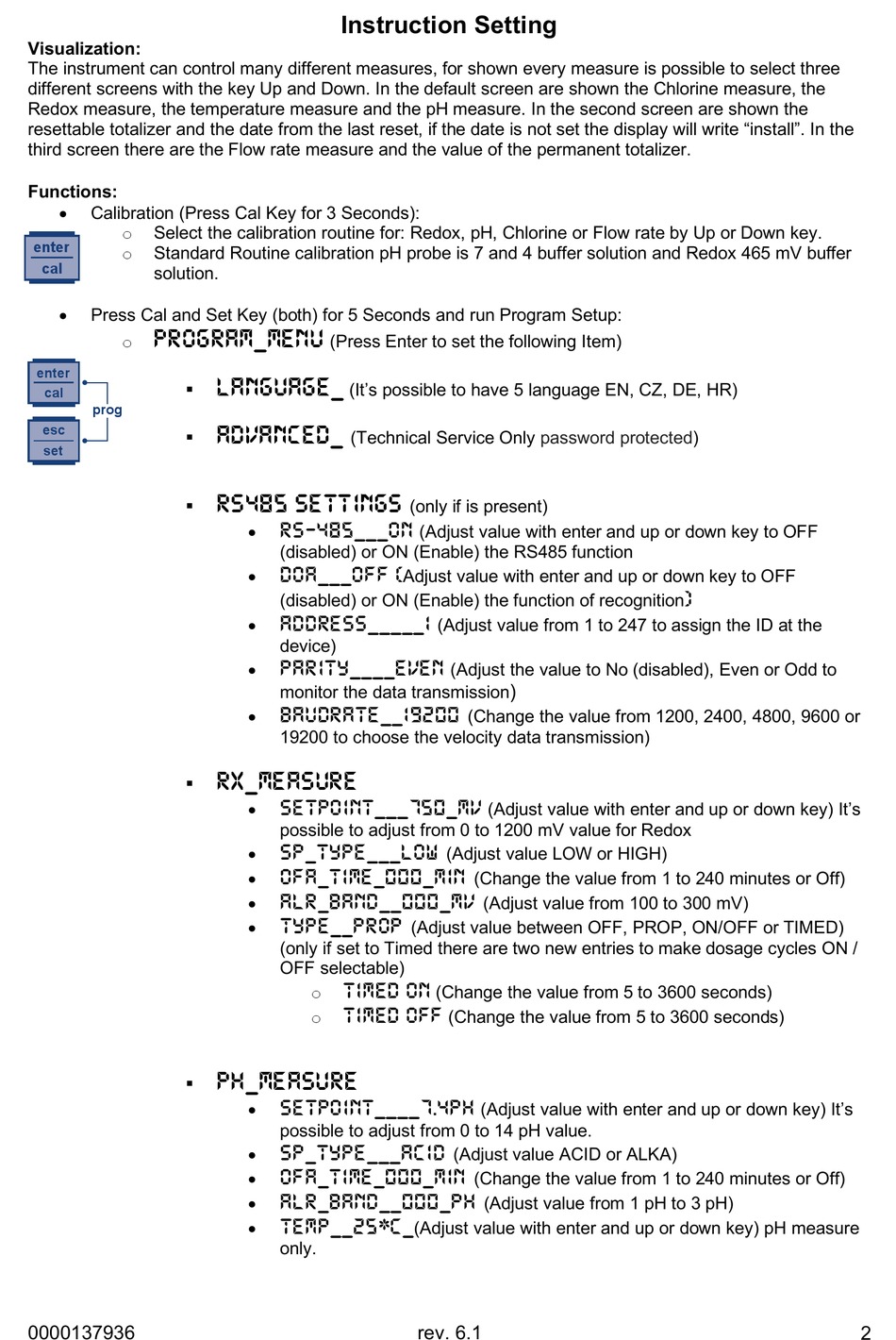

Instruction Setting
(Press Enter to set the following Item)
Language_
(It's possible to have 5 language EN, CZ, DE, HR)
Advanced_
(Technical Service Only
RS485 SETTINGS
RS-485___ON
•
(disabled) or ON (Enable) the RS485 function
DOA___OFF (
•
(disabled) or ON (Enable) the function of recognition
Address_____1
•
device)
Parity____EVEN
•
monitor the data transmission
BaudRate__19200
•
19200 to choose the velocity data transmission)
Rx_Measure
setpoint___750_mv
•
possible to adjust from 0 to 1200 mV value for Redox
sp_type___low
•
ofa_time_000_min
•
alr_band__000_mV
•
Type__PROP
•
(only if set to Timed there are two new entries to make dosage cycles ON /
OFF selectable)
Timed ON
o
Timed OFF
o
ph_Measure
setpoint____7.4ph
•
possible to adjust from 0 to 14 pH value.
sp_type___acid
•
ofa_time_000_min
•
alr_band__000_ph
•
Temp__25*C_
•
only.
password
(only if is present)
(Adjust value with enter and up or down key to OFF
Adjust value with enter and up or down key to OFF
(Adjust value from 1 to 247 to assign the ID at the
(Adjust the value to No (disabled), Even or Odd to
)
(Change the value from 1200, 2400, 4800, 9600 or
(Adjust value with enter and up or down key) It's
(Adjust value LOW or HIGH)
(Change the value from 1 to 240 minutes or Off)
(Adjust value from 100 to 300 mV)
(Adjust value between OFF, PROP, ON/OFF or TIMED)
(Change the value from 5 to 3600 seconds)
(Change the value from 5 to 3600 seconds)
(Adjust value with enter and up or down key) It's
(Adjust value ACID or ALKA)
(Change the value from 1 to 240 minutes or Off)
(Adjust value from 1 pH to 3 pH)
(Adjust value with enter and up or down key) pH measure
rev. 6.1
protected)
)
