REMOTE CONTROLLER (optional)

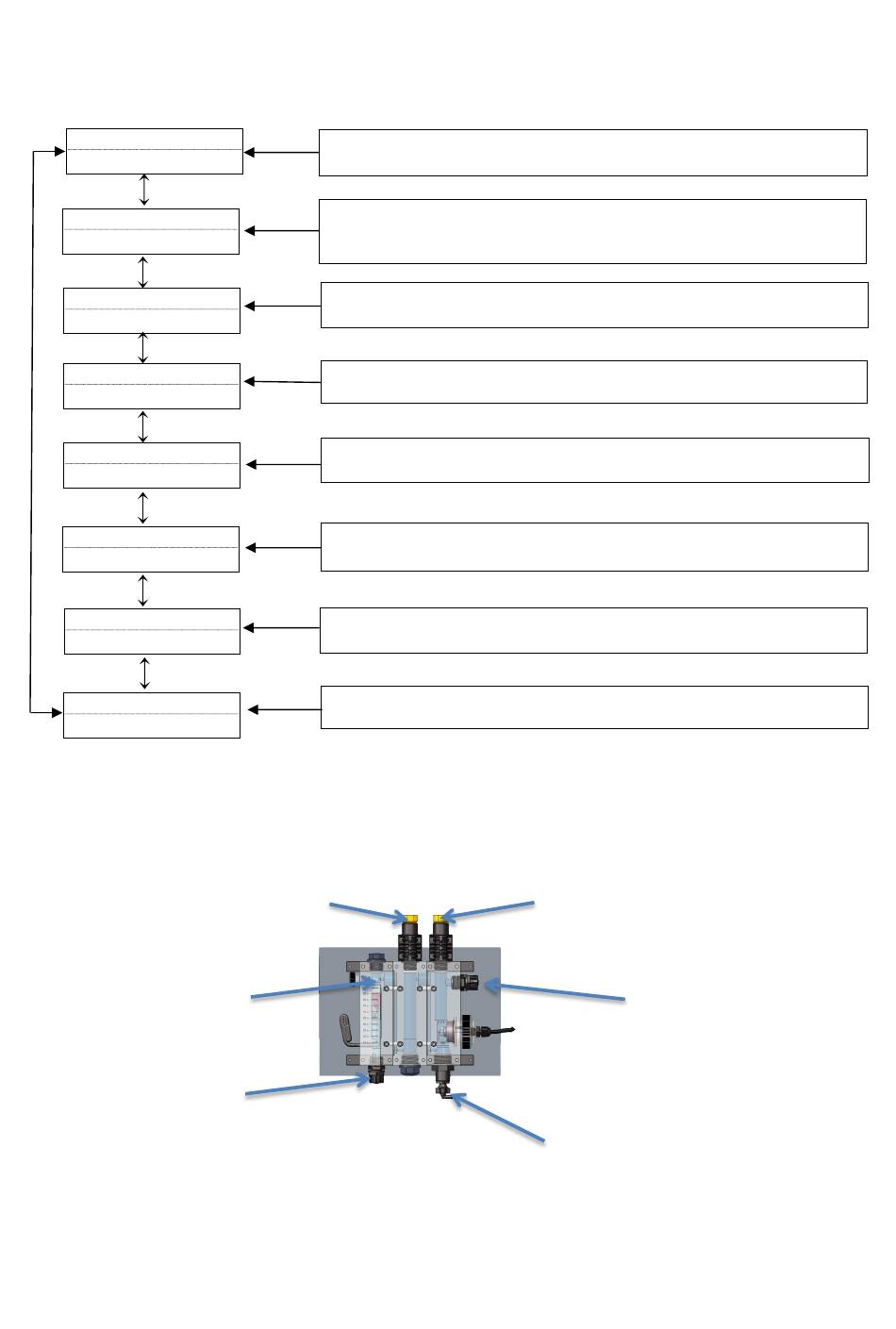

If a remote controller is connected to this system, the display of controller shows the following "Device
Menu":
Device Addr:
________________
Device
Language
pH Mesure
SetPoint: 7.4pH
pH Mesure
Alr Band:
Chlorine Mesure
SetPoint: 1.2ppm
Chlorine Mesure
Alr Band: 1.0ppm
Rx Mesure
SetPoint: 750mV
Rx Mesure
Alr Band: 300mV

Hydraulic Connection:

Flow-meter
Inlet
0000137936
This screen shows the device address. Pressing Enter and the Up and Down key is
possible to assign a name at the device and confirm with Enter.
Press Enter and the Up and Down key to choose the language of the system, and
confirm with Enter.
En
Press Enter and the Up and Down key to change the pH SetPoint, and confirm with
Enter.
Press Enter and the Up and Down key to change the pH Alarm Band, and confirm
with Enter.
3pH
Press Enter and the Up and Down key to change the Chlorine SetPoint, and
confirm with Enter.
Press Enter and the Up and Down key to change the Chlorine Alarm Band, and
confirm with Enter.
Press Enter and the Up and Down key to change the Redox SetPoint, and confirm
with Enter.
Press Enter and the Up and Down key to change the Redox Alarm Band, and confirm
with Enter.
pH Probe
RX Probe
Sample faucet
tapping
rev. 6.1
Outlet
