TUBELED_40 Element
5 | Connection
Suitable connection material, cables and accessories can be found in the accessory
range of LED2WORK.
TUBELED_40 Element DC
On the luminaire is an input for an M12 con-
nector A-coded. This socket is used to con-
nect the luminaire with 24V DC fixed voltage,
starting from an operating device.

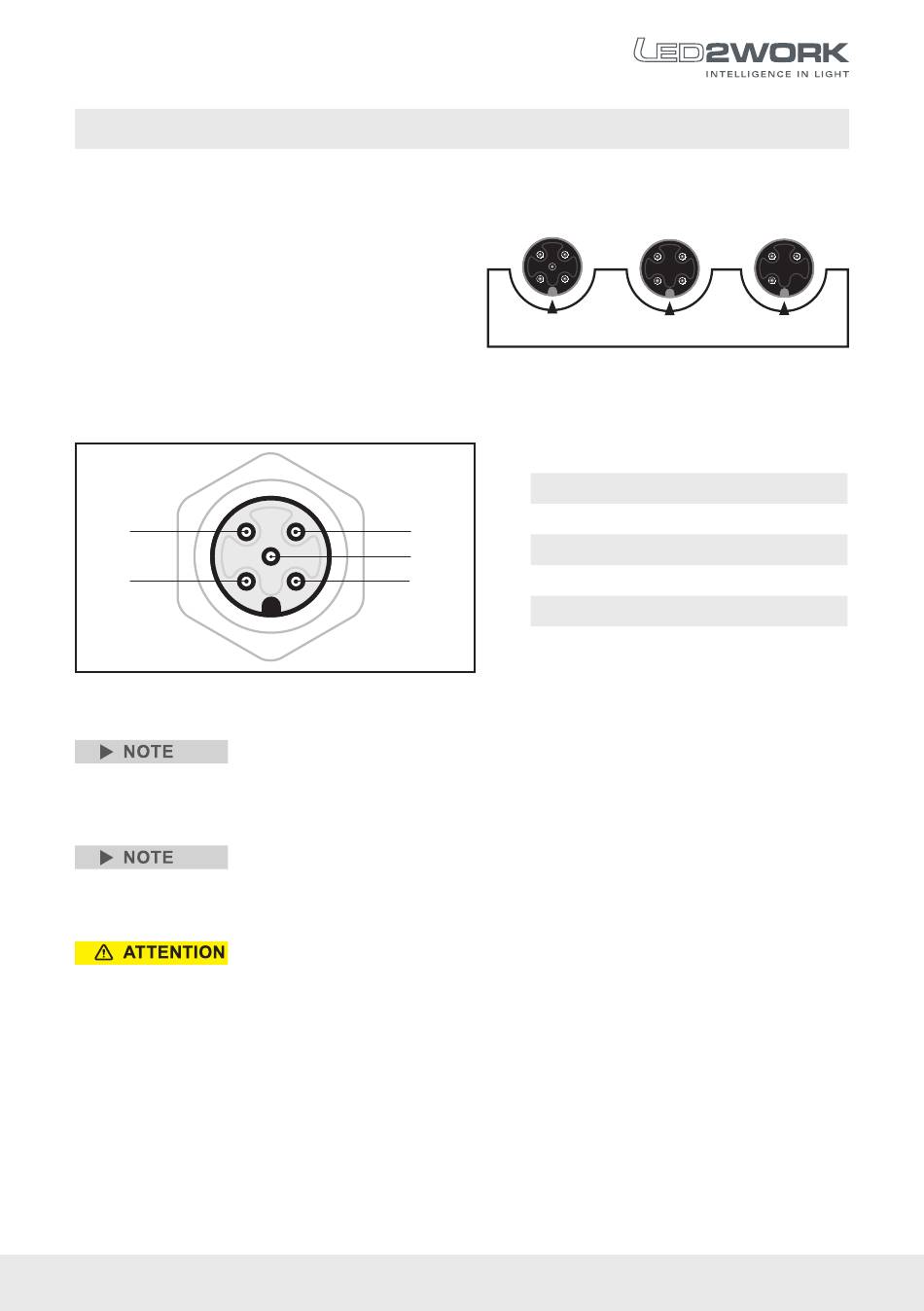

PIN assignment of the M12 connector is as follows:
4
1
Schematic drawing of M12 A-coded
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN 1 or
PIN 4. It is not necessary to assign both PINs (PIN 1 and PIN 4) at
once!
Through-wiring (cascadable):
Through-wiring (cascadable) can be used to link several luminaires
electrically to one another.
The total current consumption must not exceed 8 A DC at t
max. (or 7 A DC at t
Possible variants of the M12 A-coded
PIN allocation
PIN 1
PIN 2
3
PIN 3
5
PIN 4
2
PIN 5
+40°C max.).
a
= 24V DC
= not used
= GND
= 24V DC
= not used
+30°C
a
