Honeywell MI-DMM2IE Installationsanleitung

Fig./Abb. 1
1:2 DIN
1:1 M200E-SMB
Sollevare
Levantar
Anheben
Fig./Abb. 2
Fig./Abb. 3
Fig./Abb. 4
MI-DMMIE: DOP-IOD082
0905
MI-DMM2IE: DOP-IOD083
21
MI-D2ICMOE: DOP-IOD084
EN54-17: 2005, EN54-18: 2005
M200-500-00
MI-DMMIE MI-DMM2IE MI-D2ICMOE
22 mm
60°C
-20°C
2 1
Rotate
Ruotare
Girar
Drehen
Clip / Agganciare
3
Acoplar / Einrasten
3 1
Lift
2 Rotate / Ruotare
Girar / Drehen
MI-DMMIE
MI-DMM2IE
MI-D2ICMOE
(i)
+
(iii)
Fig./Abb. 5
Honeywell Morley-IAS
Pittway Tecnologica S.r.l
Via Caboto 19/3
34147 Trieste, Italy
Honeywell Morley-IAS, 140 Waterside Road, Hamilton Industrial Estate, Leicester, LE5 1TN, UK
EN
INSTALLATION INSTRUCTIONS - MI-DMMIE / MI-DMM2IE
INPUT MODULES, MI-D2ICMOE INPUT /OUTPUT MODULE
This manual is intended as a quick reference installation guide. Please refer to the
control panel manufacturers installation manual for detailed system information.
The Morley series of modules are a family of microprocessor controlled interface
devices permitting the monitoring and/or control of auxiliary devices.

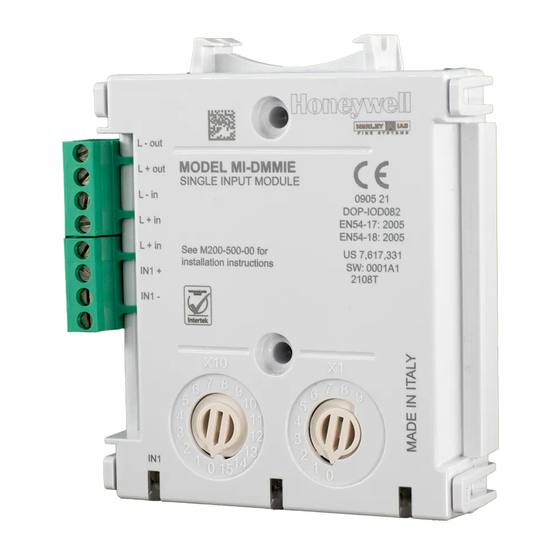

MI-DMMIE SINGLE CHANNEL INPUT MODULE
Provides single channel monitoring of normally open contact fire alarm and
supervisory devices.
The MI-DMMIE has a single tri-colour green/red/yellow LED, which can be set by
panel command to pulse green each time the module is polled. In case of an alarm the
panel can switch the red indicator on continuously. The Yellow LED is controlled by the
module and blinks to indicate an open circuit on the input circuit. This fault indication
is overridden by a panel command to turn the red LED on.
MI-DMM2IE DUAL CHANNEL INPUT MODULE
This is a dual channel module used for the monitoring of normally open contact fire
Plug
Inserire
alarm and supervisory devices.
Conectar
It has two tri-colour LED's, one referring to each channel. Each LED can be set by
Einhaken
panel command to pulse green each time the module channel is polled. In case of
an alarm the panel can switch the red indicator on continuously. The Yellow LED is
controlled by the module and blinks to indicate an open circuit on the input circuit.
This fault indication is always overridden by a panel command to turn the red LED on.
MI-D2ICMOE DUAL INPUT, SINGLE OUTPUT MODULE
This module provides dual channel monitoring of normally open contact fire alarm
and supervisory devices, and also provides single pole changeover contacts for the
Push down
Premere control of auxiliary devices such as fire shutters and sounders.
Precionar
Three tri-colour LED's are provided to indicate the status of each channel.
hacia abajo
LED's IN1 and IN2 refer to the two input channels. Each LED can be set by panel
Runterdrücken
command to pulse green each time the module channel is polled. In case of an alarm
the panel can switch the red indicator on continuously.
LED OUT refers to the output channel. The LED can be set by panel command to
pulse green each time the channel is polled. The LED will be switched continuously
on green by command from the control panel when the relay contacts are in the
energised state.
The MI-D2ICMOE relay contact ratings are 30VDC, 2A (Resistive load).
SPECIFICATIONS
Operating Voltage Range:
Maximum Standby Current:
LED Current (Red):
LED Current (Yellow):
Isolator features:
Humidity:
Maximum Wire Gauge
INSTALLATION
Note: These modules must only be connected to control panels using compatible
proprietary analogue addressable communication protocols for monitoring and control.
Morley series modules can be mounted in several ways (See Figure 1):
1:1 An M200E-SMB custom low profile surface-mounting box. The SMB Base is
affixed to mounting surface, and then the module and cover are screwed onto
the base using the two screws supplied. Box dimensions: 132 mm (H) x 137 mm
(W) x 40 mm (D)
1:2 The DIN bracket on top allows mounting onto standard 35 mm x 7.5 mm "Top Hat"
DIN rail inside a control panel or other suitable enclosure. Install and remove as
shown in Figure 1:2.
Wiring to all series Morley modules is via plug in type terminals capable of supporting
conductors up to 2.5 mm²
Disconnect loop power before installing modules or sensors.
The module address is selected by means of rotary decade address switches (see
Figure 4). A screwdriver should be used to rotate the wheels to select the desired
address, either from the front or the top of the module.
(ii)
For modules having more than one channel, the address selected will refer to the first
input channel, the module will automatically assign the next one or two addresses
as appropriate to the second input channel and output channel. As a result, address
159 will be invalid for dual channel modules, and addresses 158 and 159 are invalid
for three channel modules. If these addresses are selected, no response will be seen
from the module (not relevant if using Advanced Protocol - consult panel manufacturer
if in doubt).
Note: Some control panels are only able to use 99 addresses. If this is the case, 99
will be invalid for dual channel modules, and addresses 98 and 99 are invalid for three
channel modules.
15 to 32VDC (Min 16.5VDC for LED operation)
140 µA @24 V and 25 C (no communication)
o
1.5 mA
5.5 mA
see S00-7100
5% to 95% relative humidity (non-condensing)
2.5 mm²
CAUTION
I56-4406-001
