with a maximum of 400 Watt. However, the total connected load must not
exceed approx. 1.6 KW. The output voltage amounts to 230 VAC.

Position

Direct insolation should be avoided, since this will falsify the measurement of
indoor temperature. The sensor for measuring the indoor temperature is fitted in
the area of the keypad. For the same reason, the control should not be fitted
above a heater. Please also make sure that no direct draught from windows or
doors will falsify the measured values. Avoid condensation.

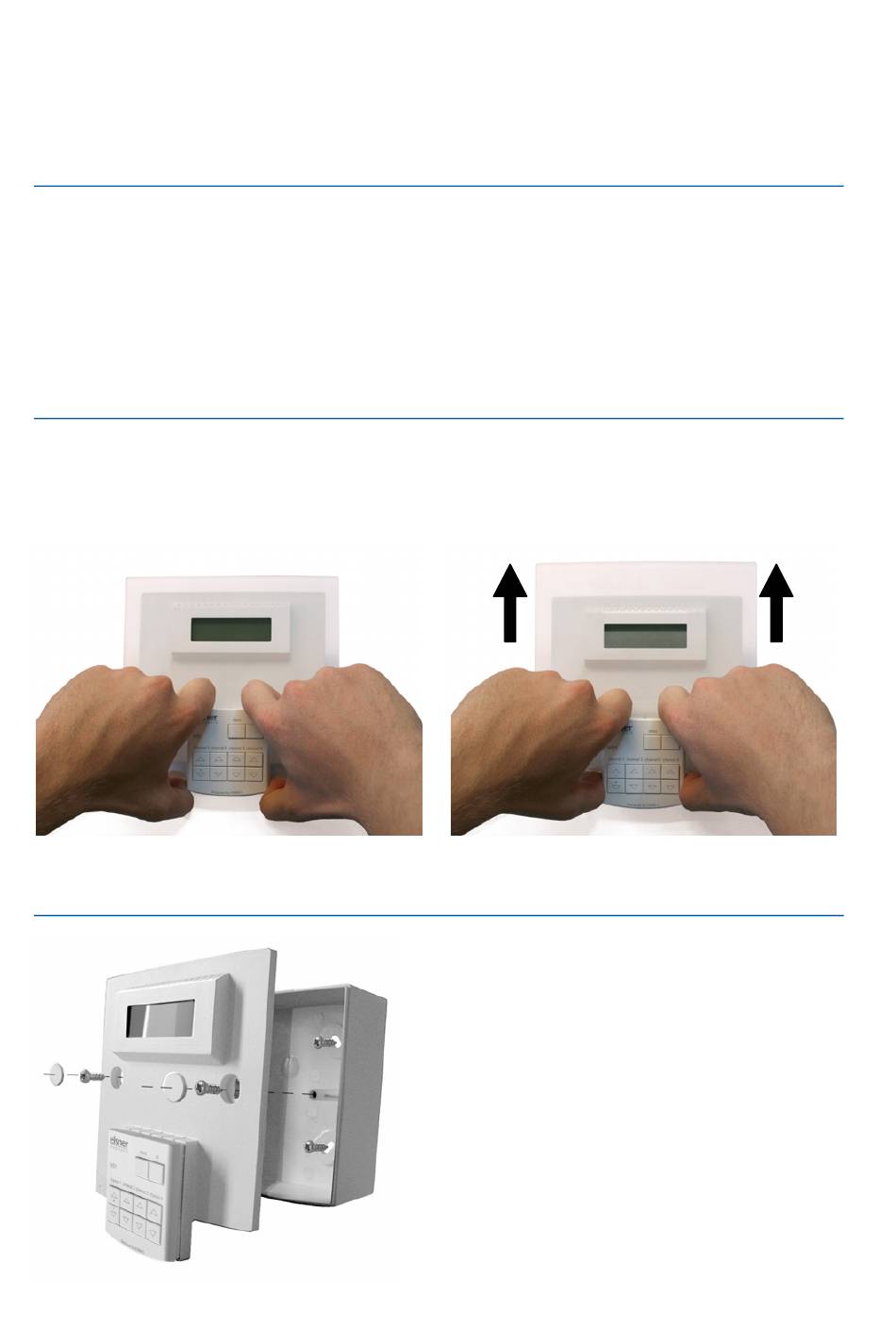

Removal of the glass pane

The glass pane is arrested at the keypad of the front panel. It must be made sure
that the matt side is facing the control, and the clear side is facing you.
To detach the glass pane from the control, slide the pane carefully from the
bottom to the top, as you can see in the illustrations.

Exploded view of the housing

104
To open the housing, proceed as
shown in the illustration. The plastic
covers for the mounting bolts of the
front panel will be pressed into the
milling holes during final assembly.
Therefore it is very difficult to
remove them, and the covers will be
damaged during disassembly. The
housing therefore contains 3
additional replacement covers.
To reach the bolts, drill or stab
(using a screwdriver or a pointed
