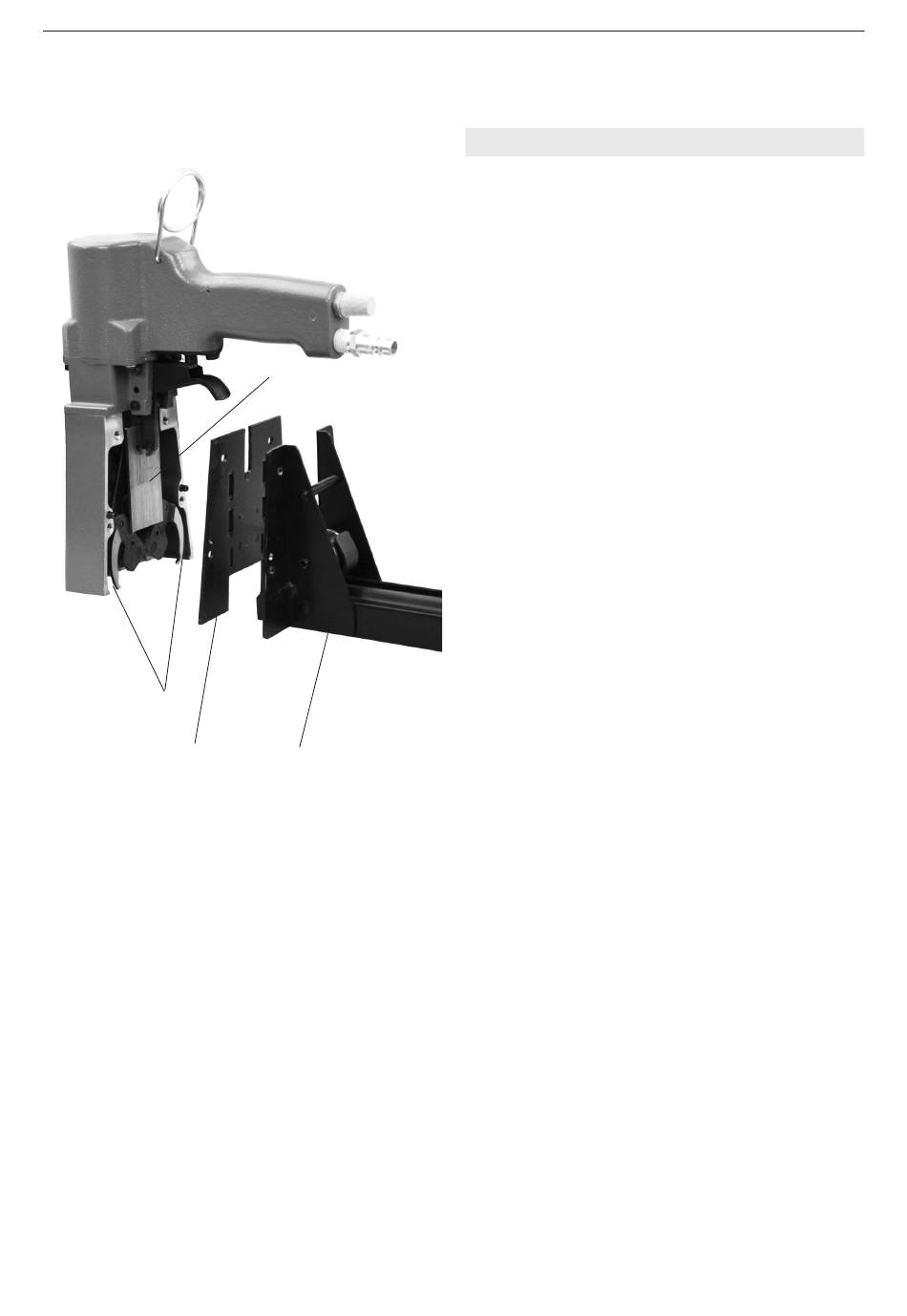

7.3 REPLACE THE DRIVER BLADE/ANVILS

– Disconnect tool from air supply.
– Remove four screws holding the magazine to the
front section.
– Remove the magazine (Fig. 11/1) and the back
plate (11/2).
– Replace the driver blade (11/3).
– Assemble parts in reverse order.
If changing the anvils always change both at the same
time:
– Remove the driver blade (11/3).
– Remove the screw.
– Replace the anvils (11/4).
– Assemble parts in reverse order.
