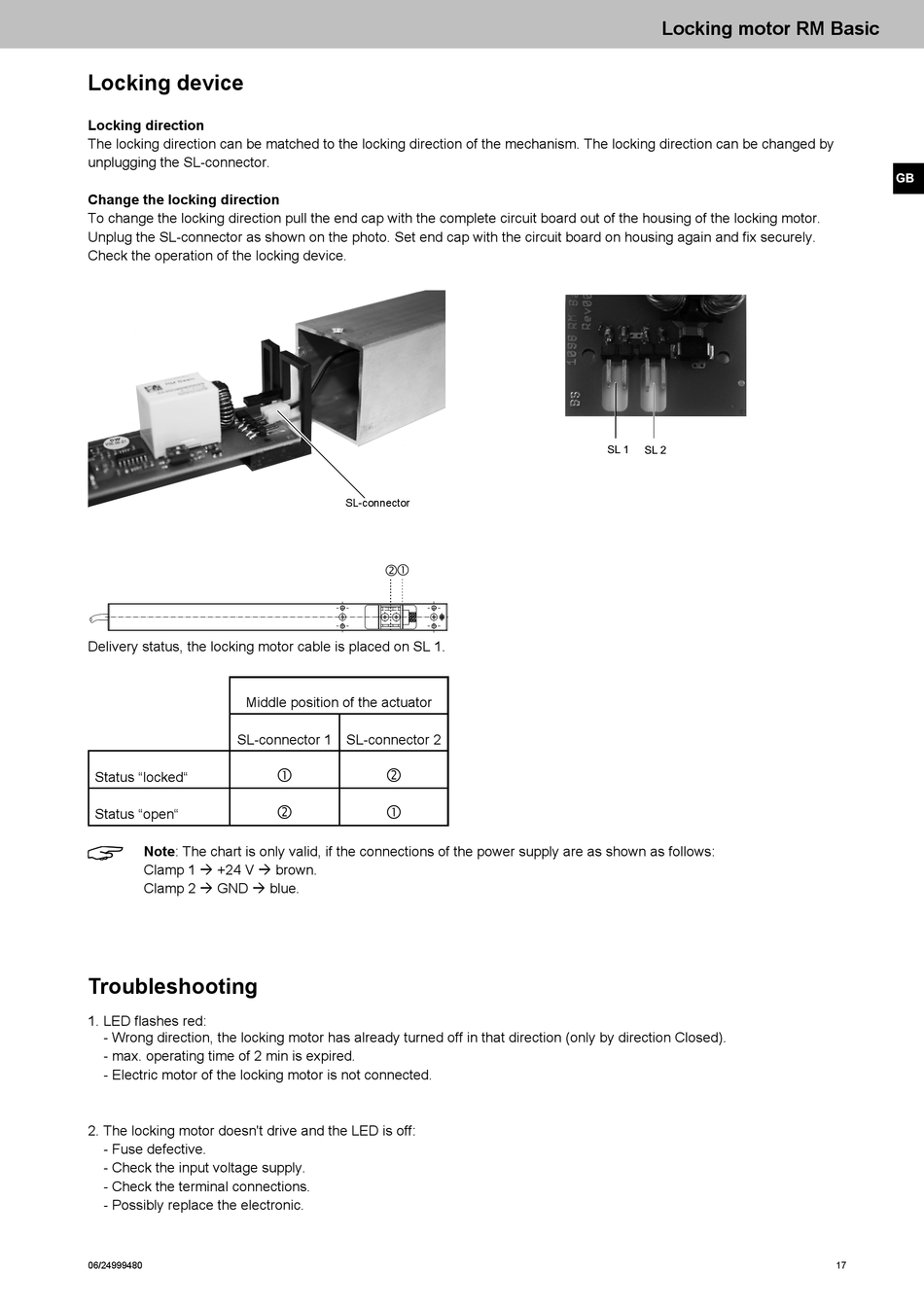

Locking device

Locking direction
The locking direction can be matched to the locking direction of the mechanism. The locking direction can be changed by
unplugging the SL-connector.
Change the locking direction
To change the locking direction pull the end cap with the complete circuit board out of the housing of the locking motor.
Unplug the SL-connector as shown on the photo. Set end cap with the circuit board on housing again and fix securely.
Check the operation of the locking device.
Delivery status, the locking motor cable is placed on SL 1.
Middle position of the actuator
SL-connector 1 SL-connector 2
Status "locked"
Status "open"
Note: The chart is only valid, if the connections of the power supply are as shown as follows:
Clamp 1  +24 V  brown.
Clamp 2  GND  blue.
Troubleshooting
1. LED flashes red:
- Wrong direction, the locking motor has already turned off in that direction (only by direction Closed).
- max. operating time of 2 min is expired.
- Electric motor of the locking motor is not connected.
2. The locking motor doesn't drive and the LED is off:
- Fuse defective.
- Check the input voltage supply.
- Check the terminal connections.
- Possibly replace the electronic.
06/24999480
SL-connector
 
 
Locking motor RM Basic
