Locking motor RM Basic
Locking motor RM Basic
Locking motor for locking and unlocking of windows via the fittings

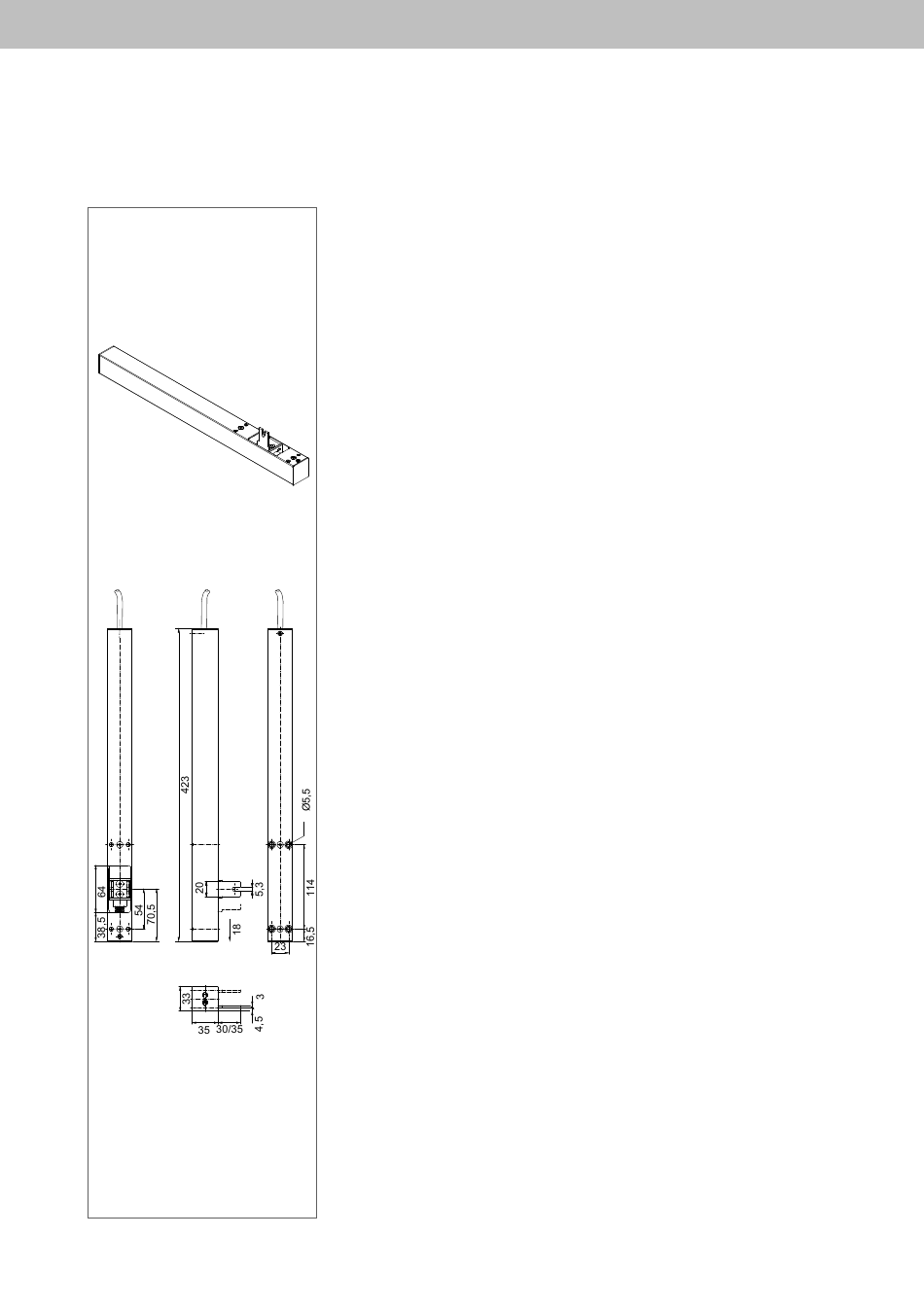

Please keep these operating instructions for future reference and maintenance. Subject to technical modifications. Diagram is not binding.
06/24999480
Function
The locking motor is a motorized locking device used on inward opening top-,
bottom- and side-hung window, serving as an additional lock via the fittings in
combination with chain motors on the same window.

Special features

• compatible with the chain motors of the series LM/2, EM/2, OM/2, CM and
FM*
• optionally up to max. 600 N or max. 1200 N push force
• integrated power cut off and sequential control unit
• installation on the casement or concealed in the profile
• actuator can be inserted on the left or right as required
• actuation of drive rod fittings
• automatic load-dependent switch-off when end position is reached
• housing made from corrosion resistant, drawn aluminium
* with status signal
