Mounting

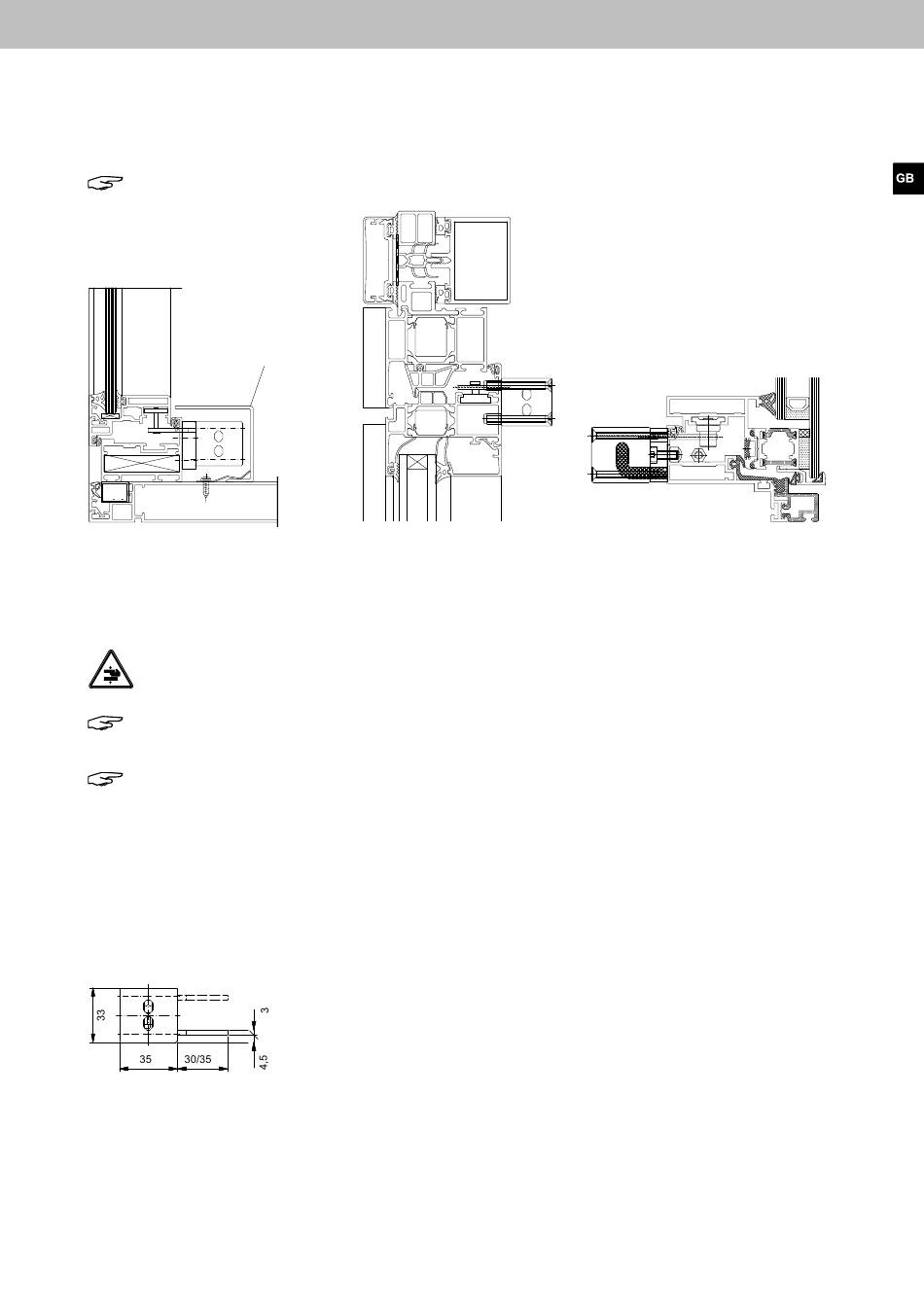

Mounting options
Examples of different profiles
Note: The installation position will depend on the profile; it therefore makes sense to agree on the installation
position with the system manufacturer.
Cover
Installation example 1
Mounting
Caution: Risk of injury due to the window falling open. A shear arm must be fitted.
Note: Do not exceed the power line length to the next junction box. Cable diameter requirements - length vs.
current flow! Monitoring of power supply cable takes place to the last junction box.
Note: Pay close attention to the enclosed wiring diagram when connecting the motors. Use the appropriate
instructions for the particular motors, tandem power cut-off and the control panels in use.
Actuator
The actuator required depends on the fittings and profile and must therefore be ordered separately. Actuator can be
inserted on the left or right-hand side as required and available in two versions with 30 or 35 mm length.
06/24999480
Installation example 2
Locking motor RM Basic Locking motor RM Basic
Installation example 3
