3.2 Setting the actuators during commissioning (cover closed)

For actuation of the actuator during adjustment work in potentially explosive atmospheres (end position
adjustment), an electrical manual override by means of a push-button is provided in the cover (see chapter 7.3). To
reach the manual override, the screw plugs must be opened. The operating status (status display LED in the Ex d
control housing) is indicated by a sight glass in the cover (see figure 2) (see chapter 7.4).

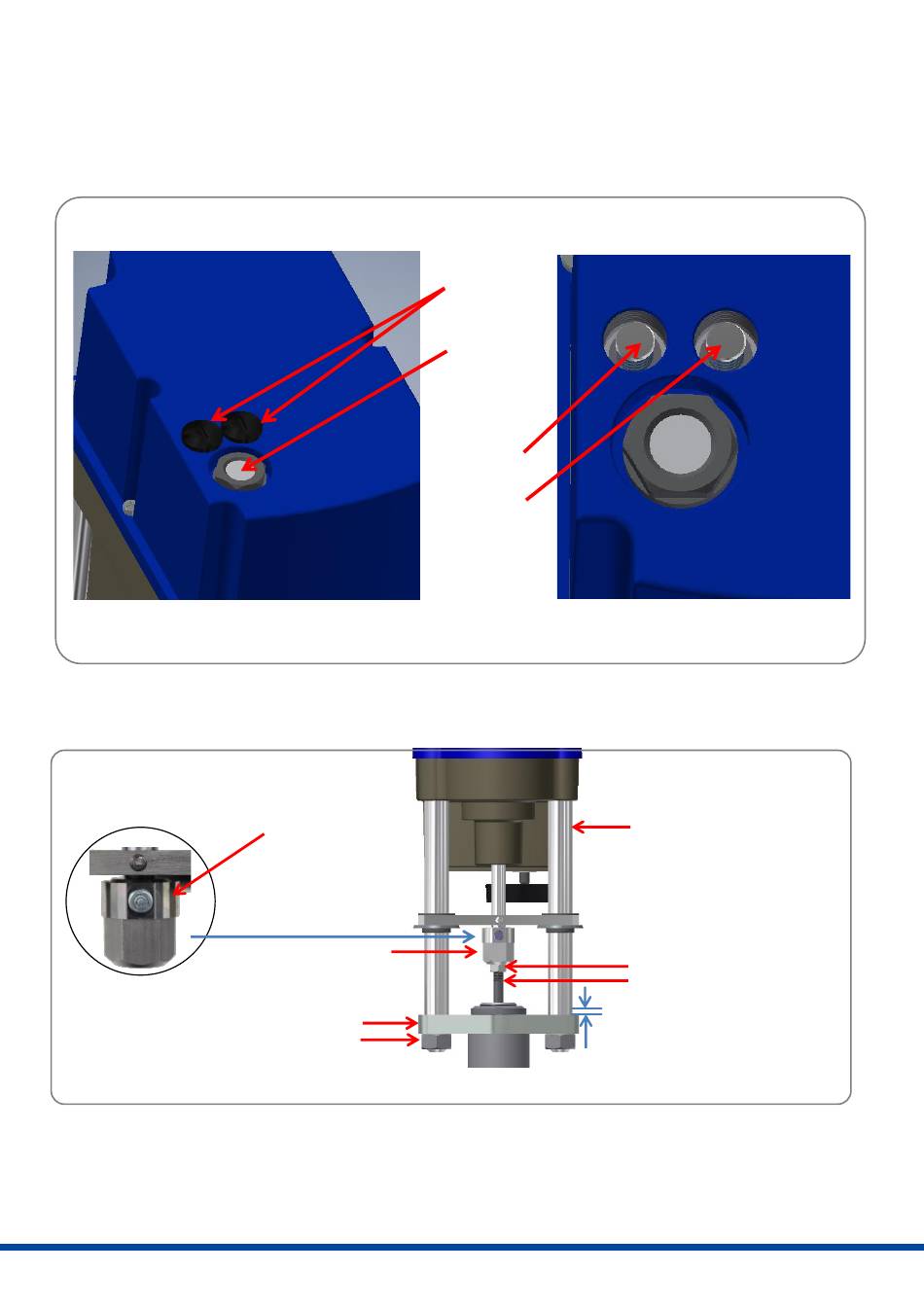

Abbildung 2: Manual operation for setting work in potentially explosive atmospheres

4. Valve mounting

Spring clamp with
coupling pin
Figure 3: Valve mounting
Fastening
screw
Sight glas
Button B1
Button B2
Coupling
Bracket
Pillar nut
Screw plugs removed
Pillar
Locking nut
Valve stem
1 mm
5
