Placing the support plates(fixtures) on the Plotter
There are eight pin stops on the plotting area where up to four different support plates
can be loaded. Different support plates are available depending on the size of the
marking elements. They can occupy one, two or four segments on the plotting area.

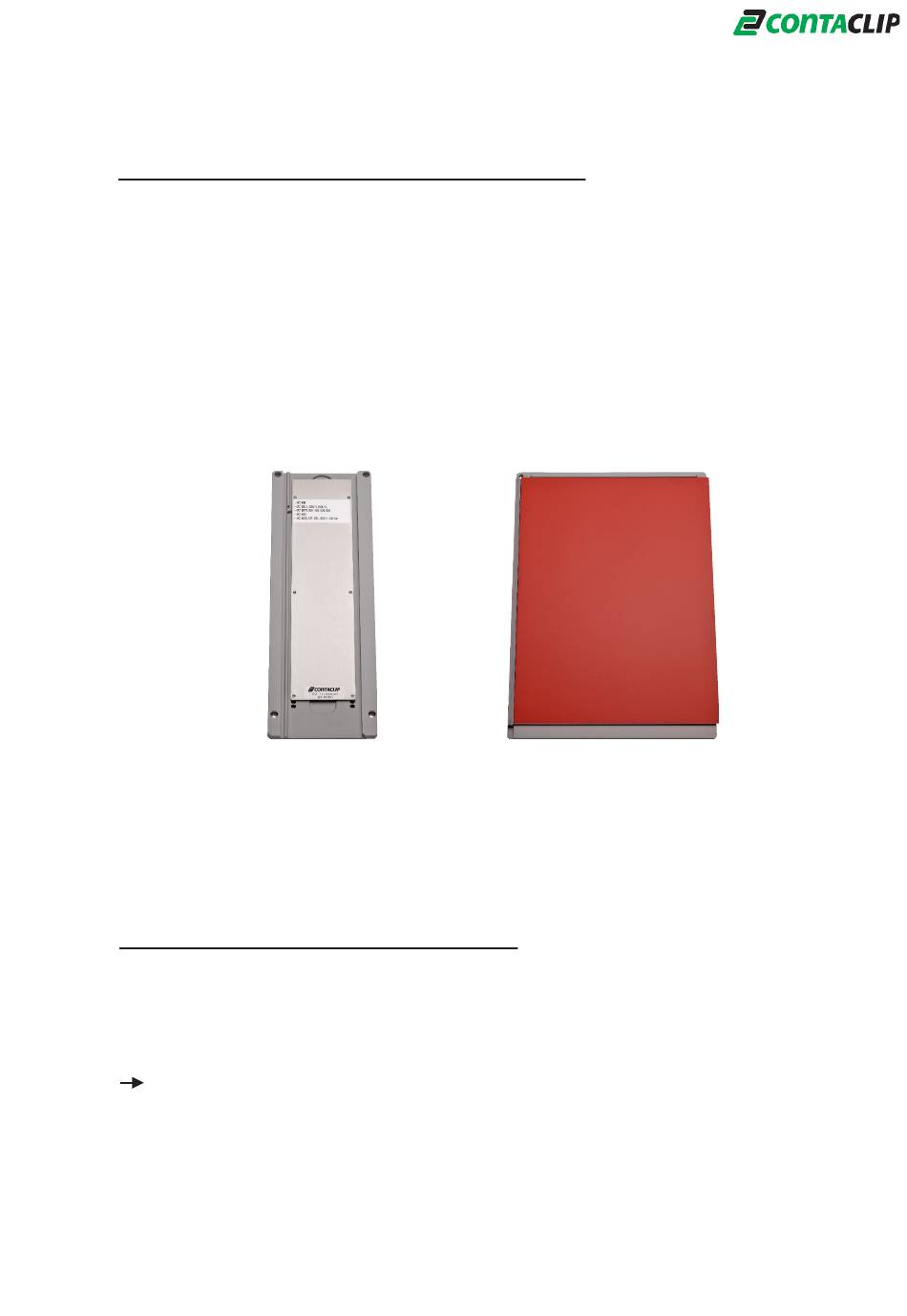

Different sized support plates (fixtures):
1 segment
Placing the elements in the support plates
Choose the appropriate support plates for the elements to be labelled and insert the
elements carefully into the support plate. You can also add the elements first and then
place the support plate on the plotter.
Please note: The plotter always re-calibrates prior to first plotting.
2 segments
