3. Product overview
5
2
6
4
5
Segment 1 Segment 2
3
2
14

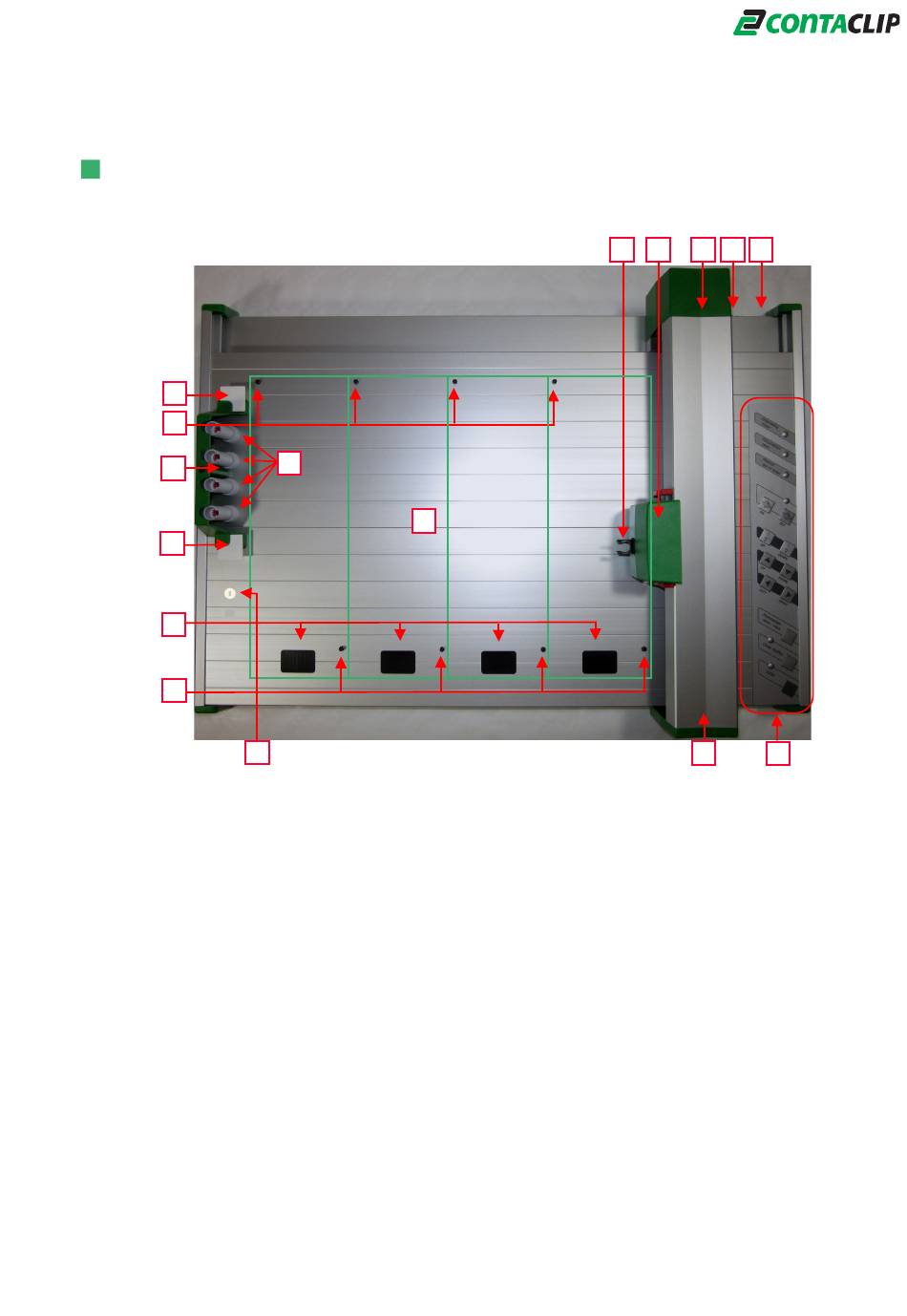

1) Plotting area
2) Pin stops for fixtures
3) Fixture recognition sensors
4) Pen station
5) Start-up writing area, priming plates
6) Sealed storage holders in pen station
7) Clip adaptor for holding the plotter pen
8) Pen holder
9) USB port
10) Interface for optional external devices
11) Power supply connection
12) Control panel/control keys
13) Plotter arm
14) Plug for positioning stud for zero setting engraving tool
1
Segment 4
Segment 3
7
8
9 10
11
13
12
5
