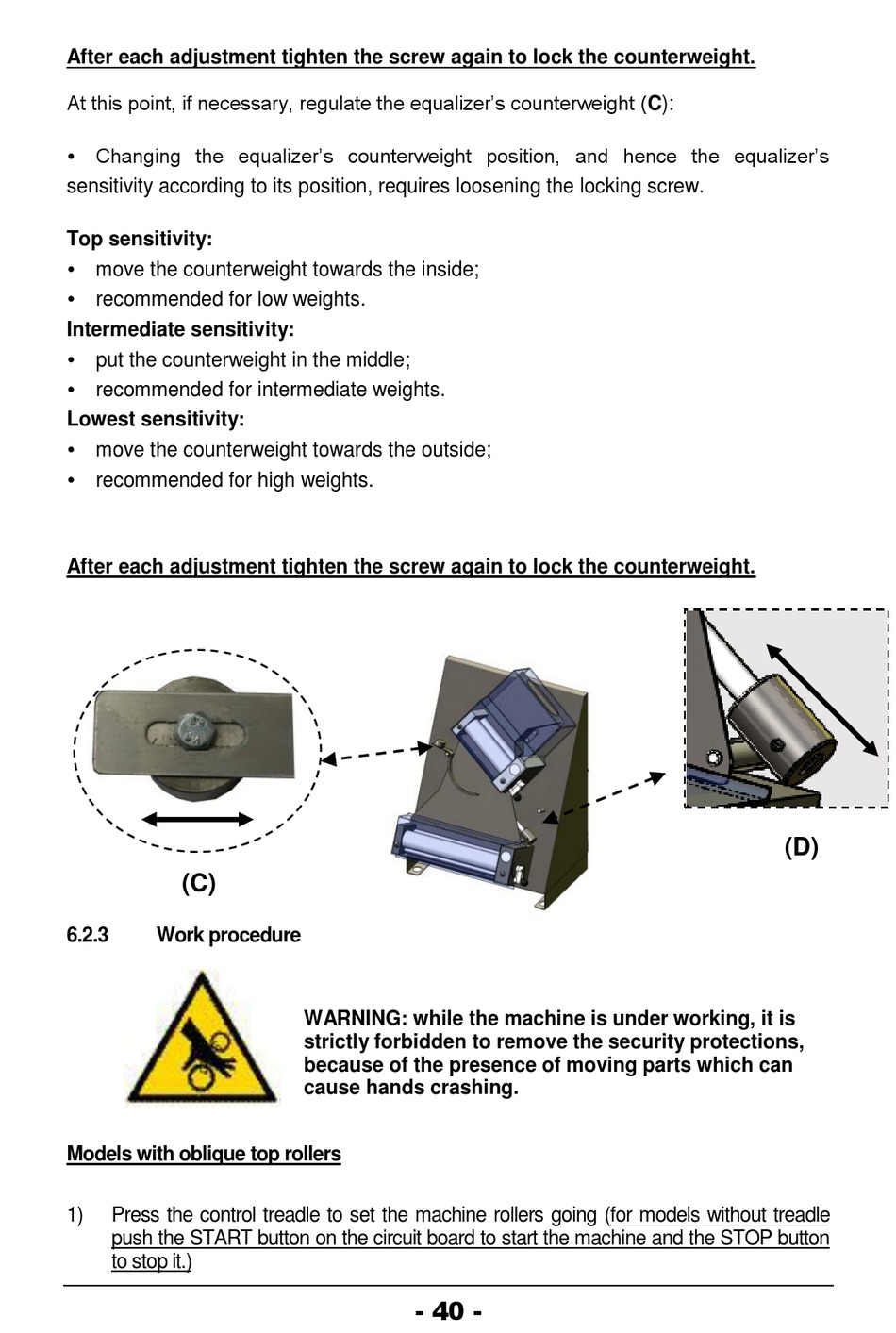

CHEFOOK CHDLR32A Gebrauchsanweisungen Seite 40

After each adjustment tighten the screw again to lock the counterweight.
At this point, if necessary, regulate the equalizer's counterweight (C):
Changing the equalizer's counterweight position, and hence the equalizer's
sensitivity according to its position, requires loosening the locking screw.
Top sensitivity:
move the counterweight towards the inside;
recommended for low weights.
Intermediate sensitivity:
put the counterweight in the middle;
recommended for intermediate weights.
Lowest sensitivity:
move the counterweight towards the outside;
recommended for high weights.
After each adjustment tighten the screw again to lock the counterweight.
(C)
6.2.3 Work procedure
Models with oblique top rollers
1) Press the control treadle to set the machine rollers going (for models without treadle
push the START button on the circuit board to start the machine and the STOP button
to stop it.)
WARNING: while the machine is under working, it is
strictly forbidden to remove the security protections,
because of the presence of moving parts which can
cause hands crashing.
- 40 -
(D)
