Instructions for installation and use

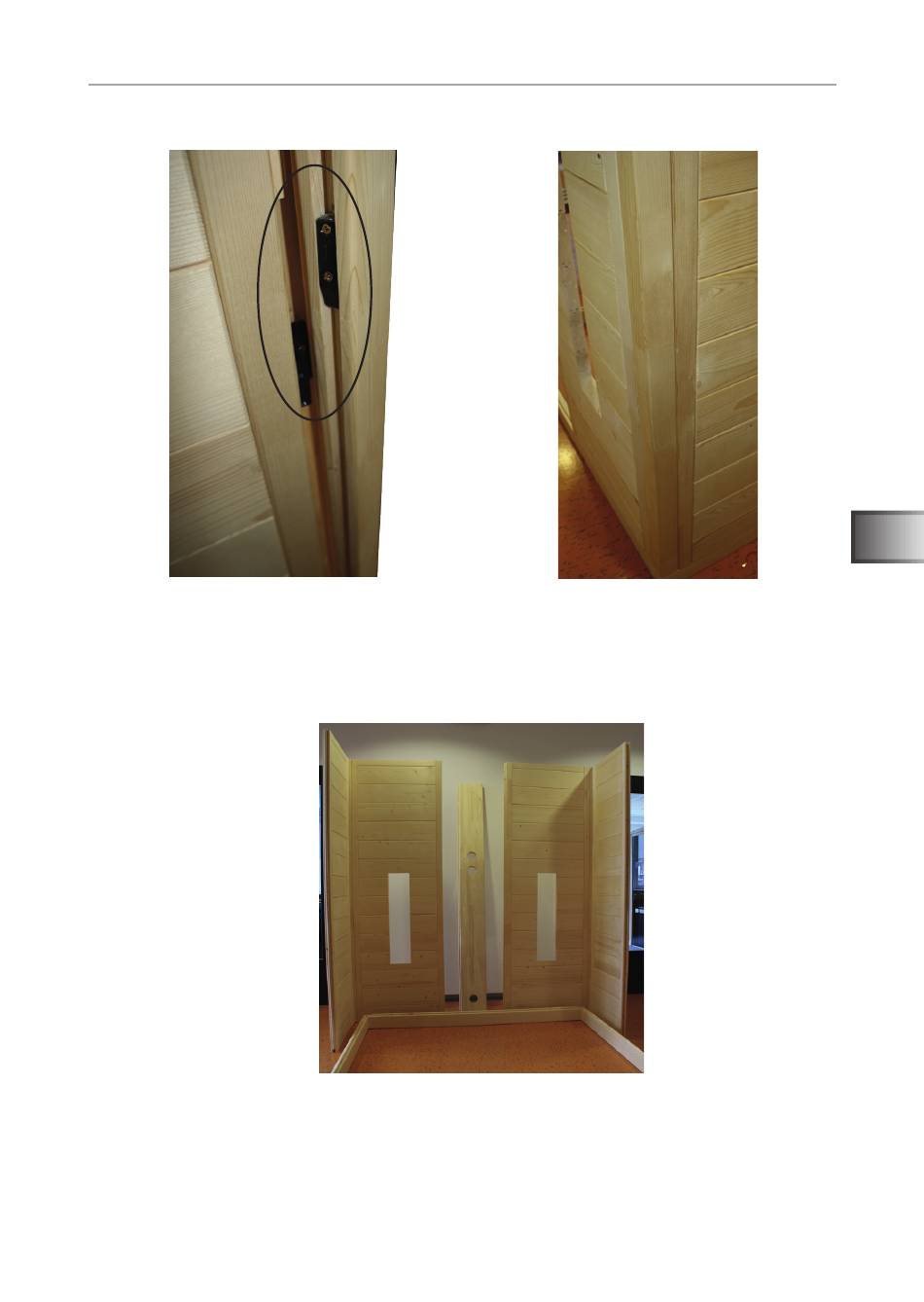

Fig. 4: Connect the wall element with the corner post
Insert the corner post from top to bottom on the wall elements. When doing so,
pay attention to the correct alignment of the "multi-clips" (see Fig. Abb. 4). The
corner post has to be flush with the wall elements.
Fig. 5: Installation on the floor frame
Place a pre-assembled corner on the floor frame, this is connected loosely with
a notch and spring.
