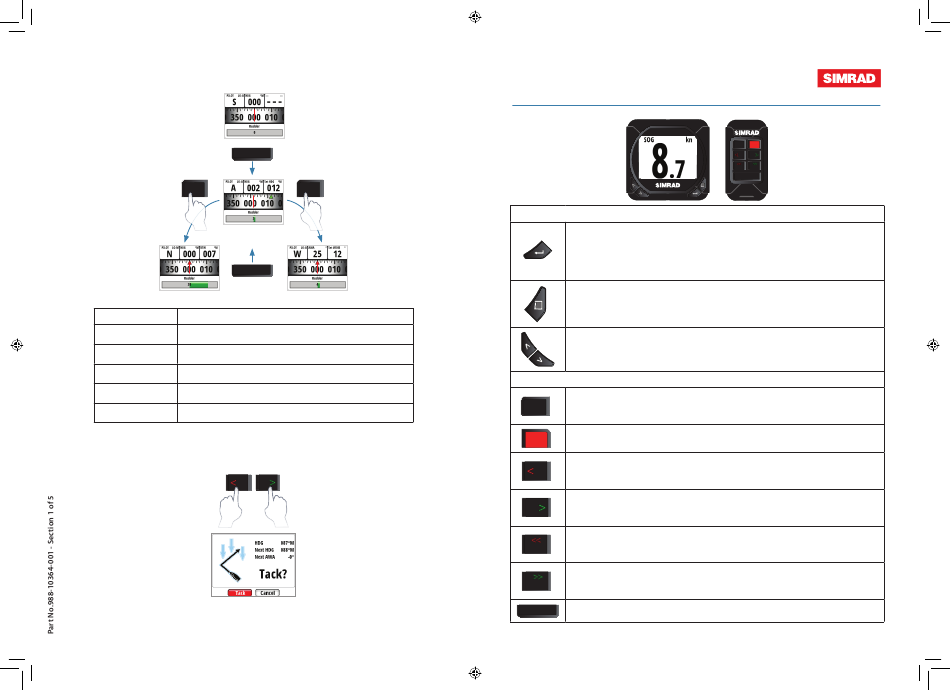

Simrad IS40 Kurzbedienungsanleitung Seite 2

Changing the Pilot mode
3 SEC
MODE
Mode Symbol Function / Mode
S
Standby
A
Auto (Compass)
W
Wind
N
Navigation
NFU
Non Follow Up (Power steer)
Tack & Gybe in Wind mode
To tack or gybe in Wind mode press both 1º course keys on the Pilot controller.
IS40_QG_01-EN_988-10364-001.indd 1
AUTO
MODE
AUTO
1
1
IS40 Display & Pilot Controller
Quick Reference Guide
Display Keys
Menu / Enter / Lighting: Used to enter the main menu, select sub menus and
confirm selection. Note: Press and hold the Enter key for 3 seconds takes you directly
to the display setup lighting level screen. If the lighting level is set below 5 it will
automatically increase to 5. Use the up and down keys to set the desired level and
press Enter to confirm.
Page: Scrolls through the eight default display pages and navigates back a step in
menus. Note: the eight default display pages including the autopilot page can be
customized to display the required data.
Directional keys: Scrolls up and down through selected menus / set values.
Pilot Controller Keys
Mode: Changes the autopilot mode. When in Auto mode pressing the mode key will
change the autopilot to Wind mode. A long key press will change to Navigation mode
MODE
which will require confirmation via the display before it is engaged.
Off: Disengages the autopilot. Places the autopilot into Standby mode.
OFF
Left 1º: Adjust the set course or wind angle 1 degree / steer to Port in Non Follow Up
1
mode. When pressed in Standby mode this will enter the autopilot into Non Follow Up
mode.
Right 1º: Adjust the set course or wind angle 1 degree / steer to Starboard in Non
1
Follow Up mode. When pressed in Standby mode this will enter the autopilot into Non
Follow Up mode.
Left 10º: Adjust the set course or wind angle 10 degrees / steer to Port in Non Follow
Up mode. When pressed in Standby mode this will enter the autopilot into Non Follow
10
Up mode.
Right 10º: Adjust the set course or wind angle 10 degree / steer to Starboard in Non
Follow Up mode. When pressed in Standby mode this will enter the autopilot into Non
10
Follow Up mode.
AUTO
Auto: Engage the autopilot / Switch the autopilot to Auto mode.
EN
MODE OFF
1 1
10 10
AUTO
