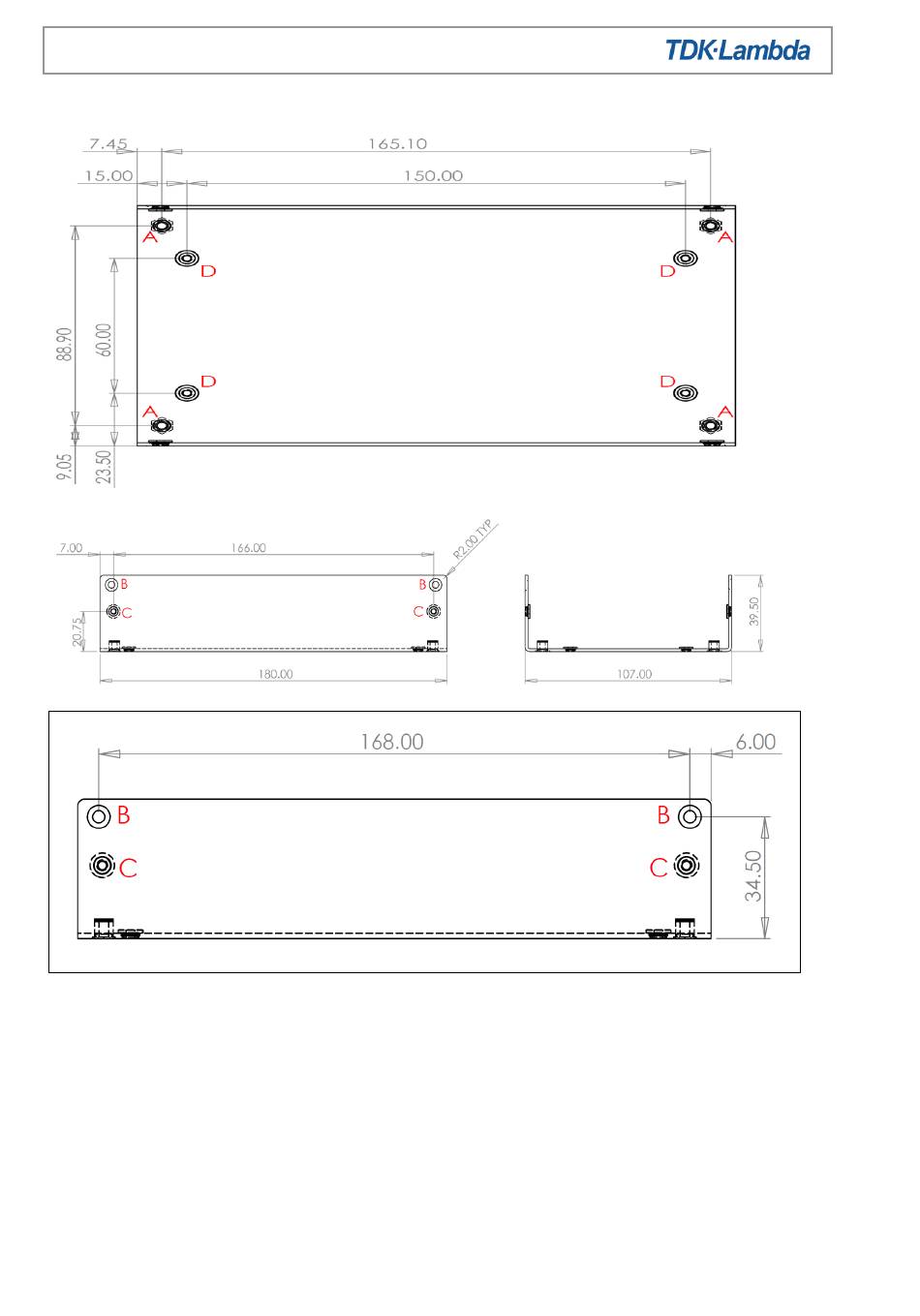

XMS S Chassis (standard) Outline.
C 2 OFF FIXING HOLES FOR M3 MAXIMUM PENETRATION OF 3MM
D 4 OFF FIXING HOLES FOR M3 MAXIMUM PENETRATION 2.4mm
ALL TOLERANCES +/-0.5mm.
MAXIMUM TORQUE 0.5-0.6Nm
