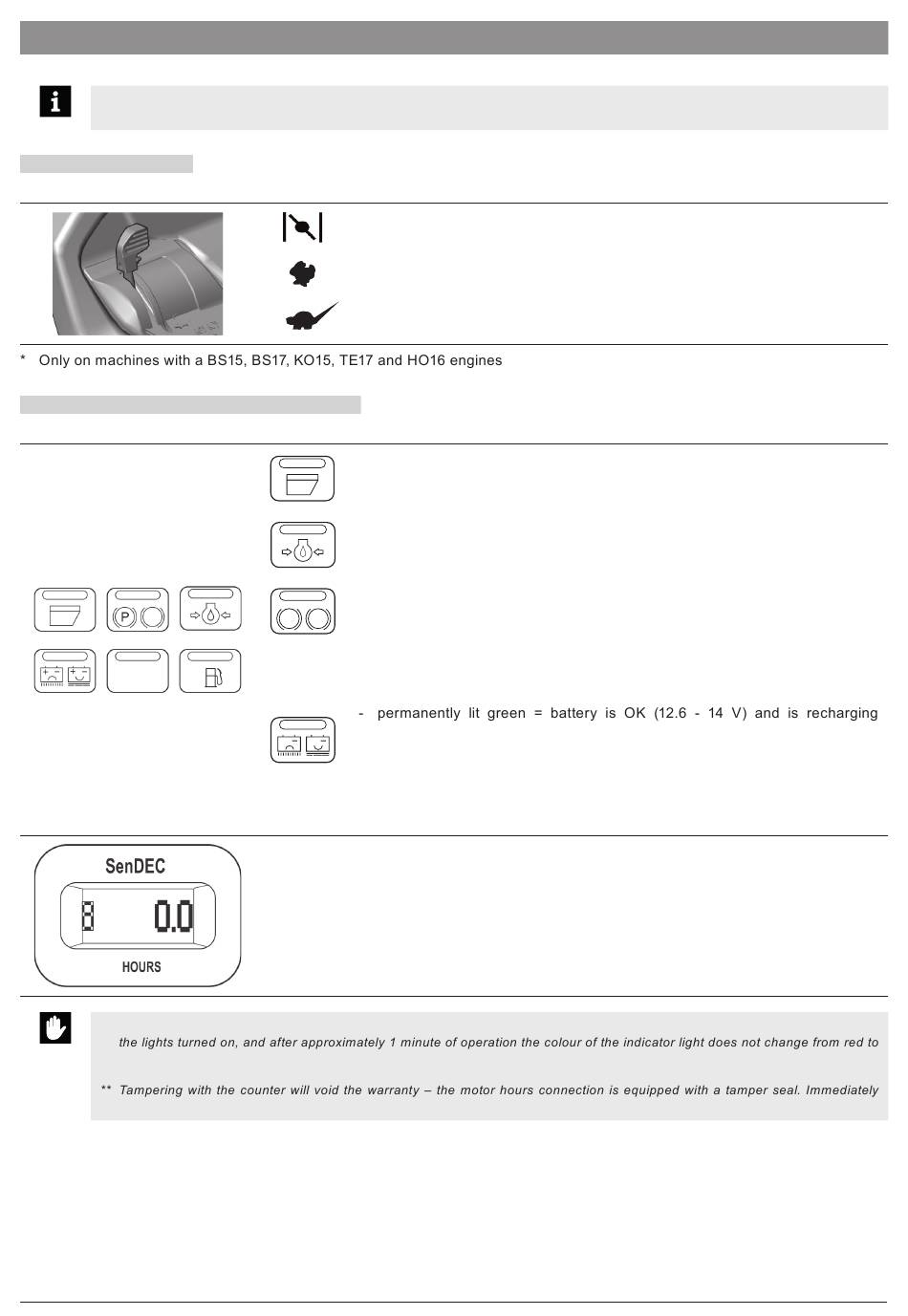

4.2 DESCRIPTION AND FUNCTIONS OF THE CONTROL ELEMENTS
The shown locations of control elements may differ from their actual locations depending on the selected configuration of the
machine.

(1) THROTTLE LEVER

Serves to regulate the engine speed. It has the following three positions:
(2) INFORMATION PANEL (optional accessory)
The information panel contains indicator lights, that serve to signal the status of the machine's basic functions.
* In the event that after starting the engine and running the machine at maximum rpm without the mowing deck engaged and
green, possibly blue, then this indicates a malfunction of the recharging circuit and it is necessary to seek out a professional
service centre.
contact your service centre if the motor hours counter malfunctions.
CHOKE*
MAX
MIN
Indicator light for the presence and full level of the grass catcher
Is lit:
Is flashing: the grass catcher is full of grass
Motor oil pressure
When oil pressure in the engine falls, the indicator light is lit red
Park brake and driving brake
When the brake pedal is pushed or the hand brake engaged, the indicator light
P
is lit red
Charging the battery*
The colour of the indicator light changes depending on the battery voltage. It
can have the following states:
correctly
+ +
- quickly flashing red = low battery voltage (below 12.6 V)*
- slowly flashing blue colour is lit = battery voltage is over 14V - if it remains
lit for a long time while the machine is in operation, check the motor's
recharging system
* Check the motor's recharging system
Counter of motor hours**
Displays the number of motor hours.
Starting a cold engine
Maximum engine speed
Minimum engine speed (idle)
the grass catcher is not mounted on the machine
