to continue mixing. To reset stirrer turn power off, allow stirrer to cool and
then turn back on.

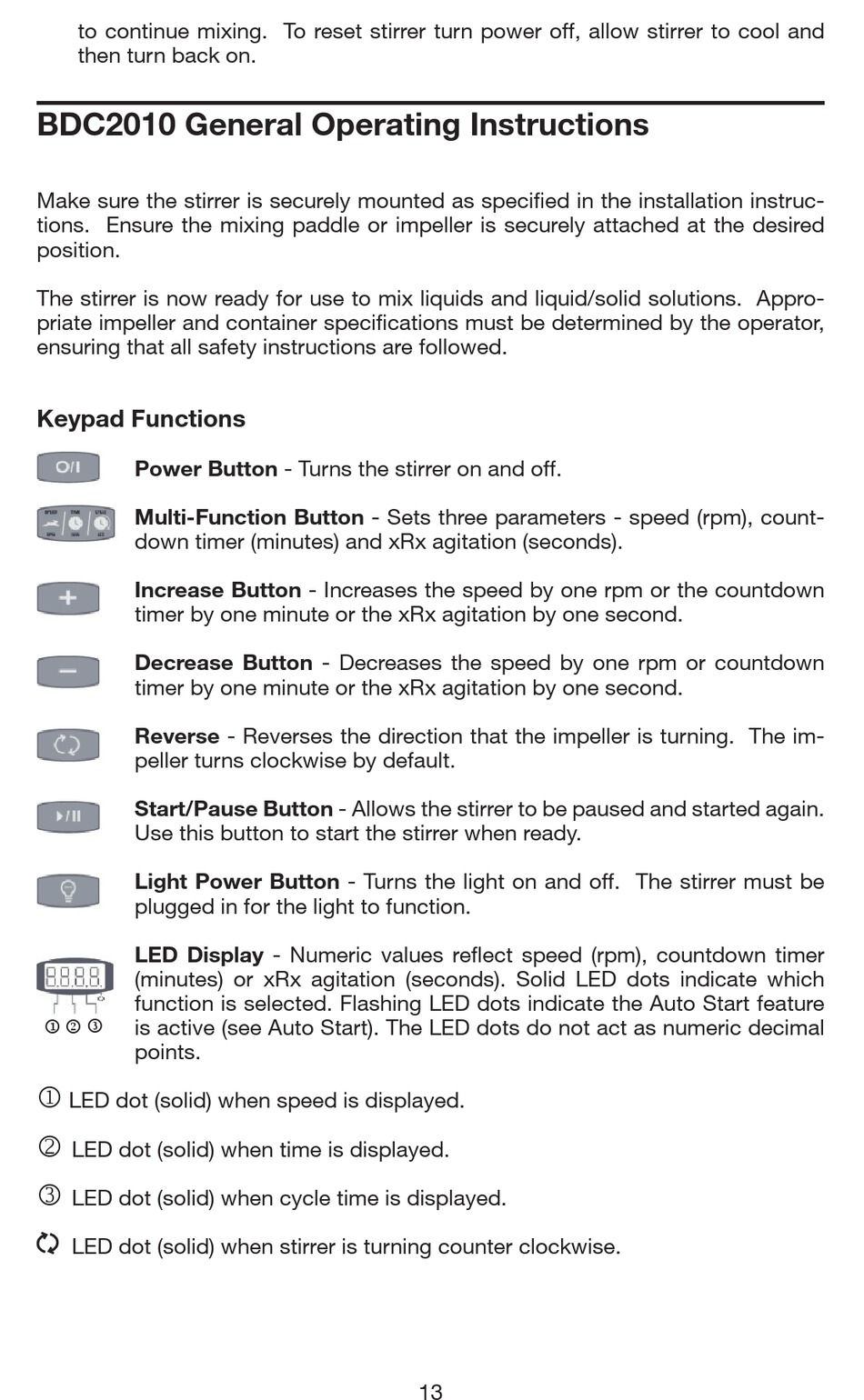

BDC2010 General Operating Instructions

Make sure the stirrer is securely mounted as specified in the installation instruc-
tions. Ensure the mixing paddle or impeller is securely attached at the desired
position.
The stirrer is now ready for use to mix liquids and liquid/solid solutions. Appro-
priate impeller and container specifications must be determined by the operator,
ensuring that all safety instructions are followed.
Keypad Functions
Power Button - Turns the stirrer on and off.
Multi-Function Button - Sets three parameters - speed (rpm), count-
down timer (minutes) and xRx agitation (seconds).
Increase Button - Increases the speed by one rpm or the countdown
timer by one minute or the xRx agitation by one second.
Decrease Button - Decreases the speed by one rpm or countdown
timer by one minute or the xRx agitation by one second.
Reverse - Reverses the direction that the impeller is turning. The im-
peller turns clockwise by default.
Start/Pause Button - Allows the stirrer to be paused and started again.
Use this button to start the stirrer when ready.
Light Power Button - Turns the light on and off. The stirrer must be
plugged in for the light to function.
LED Display - Numeric values reflect speed (rpm), countdown timer
(minutes) or xRx agitation (seconds). Solid LED dots indicate which
function is selected. Flashing LED dots indicate the Auto Start feature
is active (see Auto Start). The LED dots do not act as numeric decimal
j  
points.
j
LED dot (solid) when speed is displayed.

LED dot (solid) when time is displayed.

LED dot (solid) when cycle time is displayed.
LED dot (solid) when stirrer is turning counter clockwise.
13
