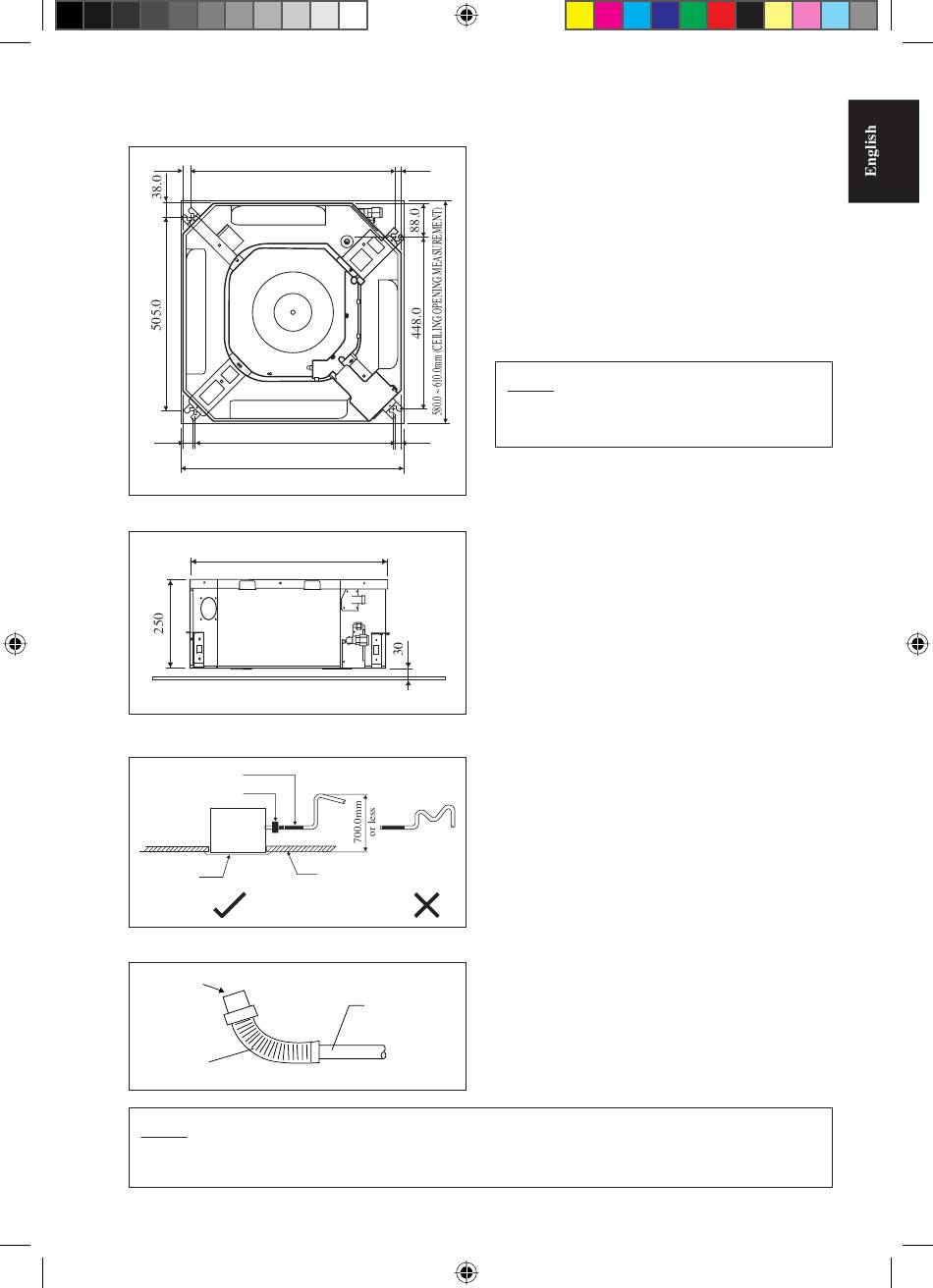

Unit Installation
Figure A
15.0
32.0
580.0 ~ 610.0mm (CEILING OPENING MEASUREMENT)
Unit Hanging
Drain Piping Work
Flexible Hose
Pipe Clamp
Indoor
Unit
Panel
Drain Test
Feed Water
Flexible Drain Hose
NOTE
This indoor unit uses a drain pump for condensed water drainage. Install the unit horizontally to prevent
water leakage or condensation around the air outlet.
1 IM 5CKC-0912(0)DAIKIN-EN.indd 7 1 IM 5CKC-0912(0)DAIKIN-EN.indd 7
538.0 18.0
529.0 19.0
All dimensions are in mm
570 (UNIT SIZE)
All dimensions are in mm
Ceiling
Main Drain Pipe
• Measure and mark the position for the hanging rod.
Drill the hole for the angle nut on the ceiling and fix
the hanging rod.
• The installation template is extended according to
temperature and humidity. Check on dimensions
in use.
• The dimensions of the installation template are the
same as those of the ceiling opening dimensions.
• Before ceiling laminating work is completed, be sure
to fit the installation template to the indoor unit.
NOTE
Be sure to discuss the ceiling drilling work with
the installers concerned.
• Confirm the pitch of the hanging rod as per Figure A.
• Hold the unit and hang it on the hanging rod with
the nut and washer.
• Adjust the unit height to 30mm between the indoor
unit bottom surface and the ceiling surface.
• Confirm with a level gauge that the unit is installed
horizontally and tighten the nut and bolt to prevent
unit falling and vibration.
• Open the ceiling board along the outer edge of the
paper installation template.
• Avoid installing the drain pipe in upward gradient
after the drain connection.
• Ensure the height of drain pipe from ceiling is 700mm
or less if it is necessary to increase the height of drain
pipe to prevent water leak.
• Avoid installing the drain pipe in up and down slope
to prevent reversed water flow.
• During the drain pipe connection, be careful not to exert
extra force on the drain connector at indoor unit.
• The outside diameter of the drain connection at the
flexible drain hose is 20mm.
• Be sure to execute heat insulation (polyethylene
foam with thickness more than 8mm) on the drain
piping to avoid the condensed water dripping inside
the room.
• Connect the main drain pipe to the flexible drain hose.
• Feed water from flexible drain hose to check the
piping for leakage.
• When the test is completed, connect the flexible drain
hose to the drain connector on the indoor unit.
1-7
