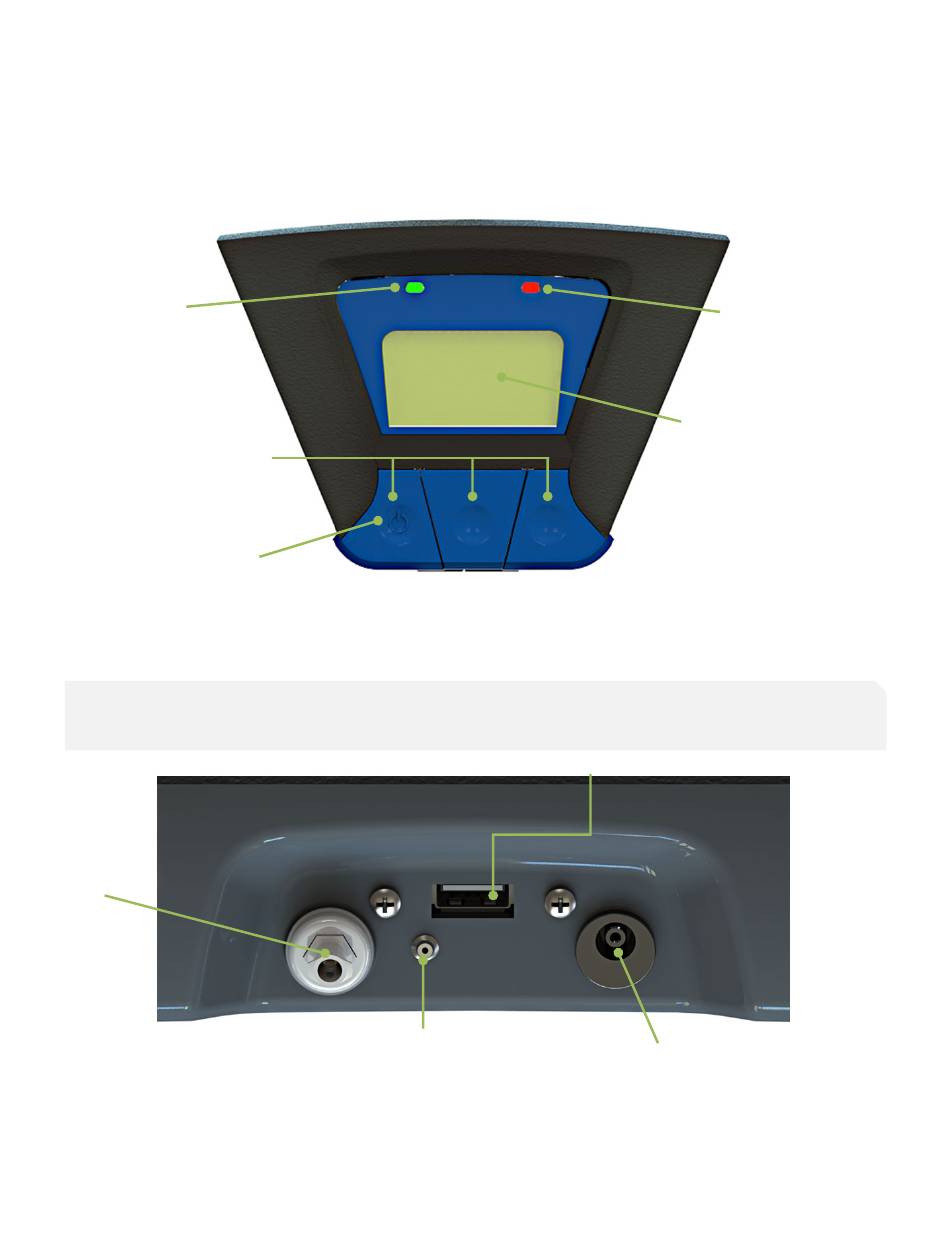

Control Panel

The Control Panel serves as the main user interface. The Control Panel features three soft key
buttons that change their function as the instrument changes modes. The current function for each
button is displayed above the Soft Key Buttons on the LCD graphic display. Red and Green LED's
at the top of the Control Panel are used for visual status indications.
Green LED
Soft Keys Buttons
Power On/Off

Back Panel Connections

The connections located on the back panel are illustrated below.
CAUTION:
free and clear at all times. Do not operate near open flame.
Sample Inlet
Manual Part Number:
5-06-7000-70-2
The sample outlet port should never be obstructed. Keep the sample outlet port
Sample Outlet
USB Port
Manual File:
MN-A-0289 Rev. E
Red LED
Graphic Display
12 VDC Outlet
Input (AC Adapter)
Page 1-13
