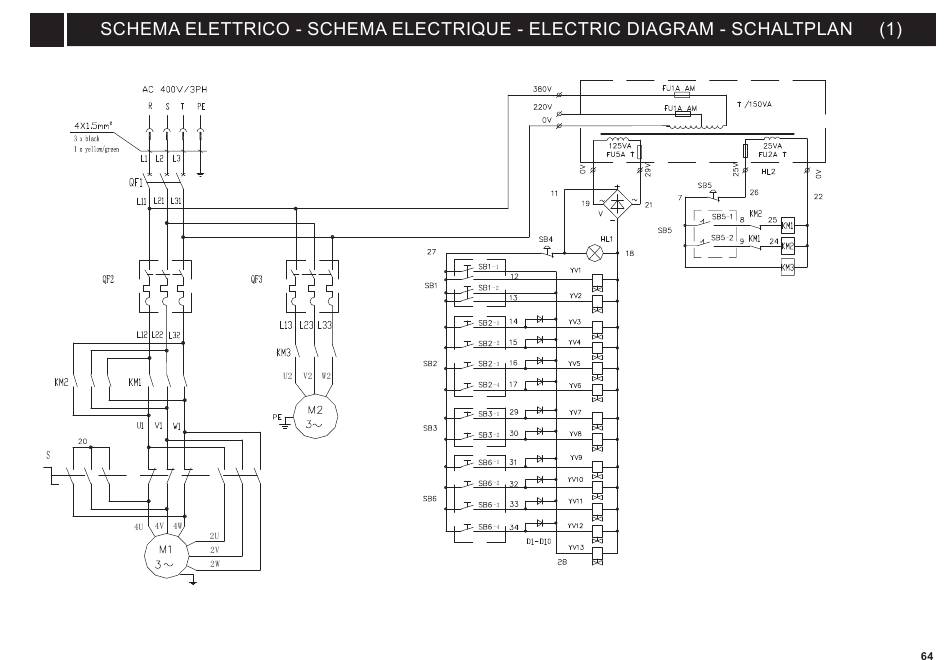

Breaker
Breaker
6.3~10A
4~6.3A
High speed
Low speed
CHUCK MOTOR
2.6KW/3.2KW
Chuck switch
Joystick 1
Tool switch
PUMP MOTOR
2.2KW
Pedal switch
Joystick 2
Emergency knob
Chuck closing
Chuck opening
Chuck arm lifting
Chuck arm lowering
Carriage moving leftward
Carriage moving rightward
Tool arm turning clockwise
Tool arm turning anti-clockwise
Tool arm lifting
Tool arm lowering
Tool arm moving leftwards
Tool arm moving rightwards
Contactor chuck clockwise rotation
Contactor chuck anticlockwise rotation
Contactor hydraulic motor protection
