Installation
The isolating switch must be of an approved type and provide a 3 mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements)
• The isolating switch will be easily accessible to the customer with the hob ins-
talled
• You consult local building authorities and by-laws if in doubt regarding installa-
tion
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces surrounding the hob.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface
(use the packaging). Do not apply force onto the cont-
rols protruding from the hob.
Adjusting the bracket position
Fix the hob on the work surface by screwing the bra-
ckets on the bottom case of the hob (see picture).
Cautions
• The hob must be installed by qualified personnel or technicians.
• The hob will not be installed directly above a dishwasher, fridge, freezer,
washing machine or clothes dryer, as the humidity may damage the hob
electronics
• The induction hotplate shall be installed such that better heat radiation
can be ensured to enhance its reliability.
• The wall and induced heating zone above the table surface shall with-
stand heat.
• To avoid any damage, the sandwich layer and adhesive must be resistant
to heat.

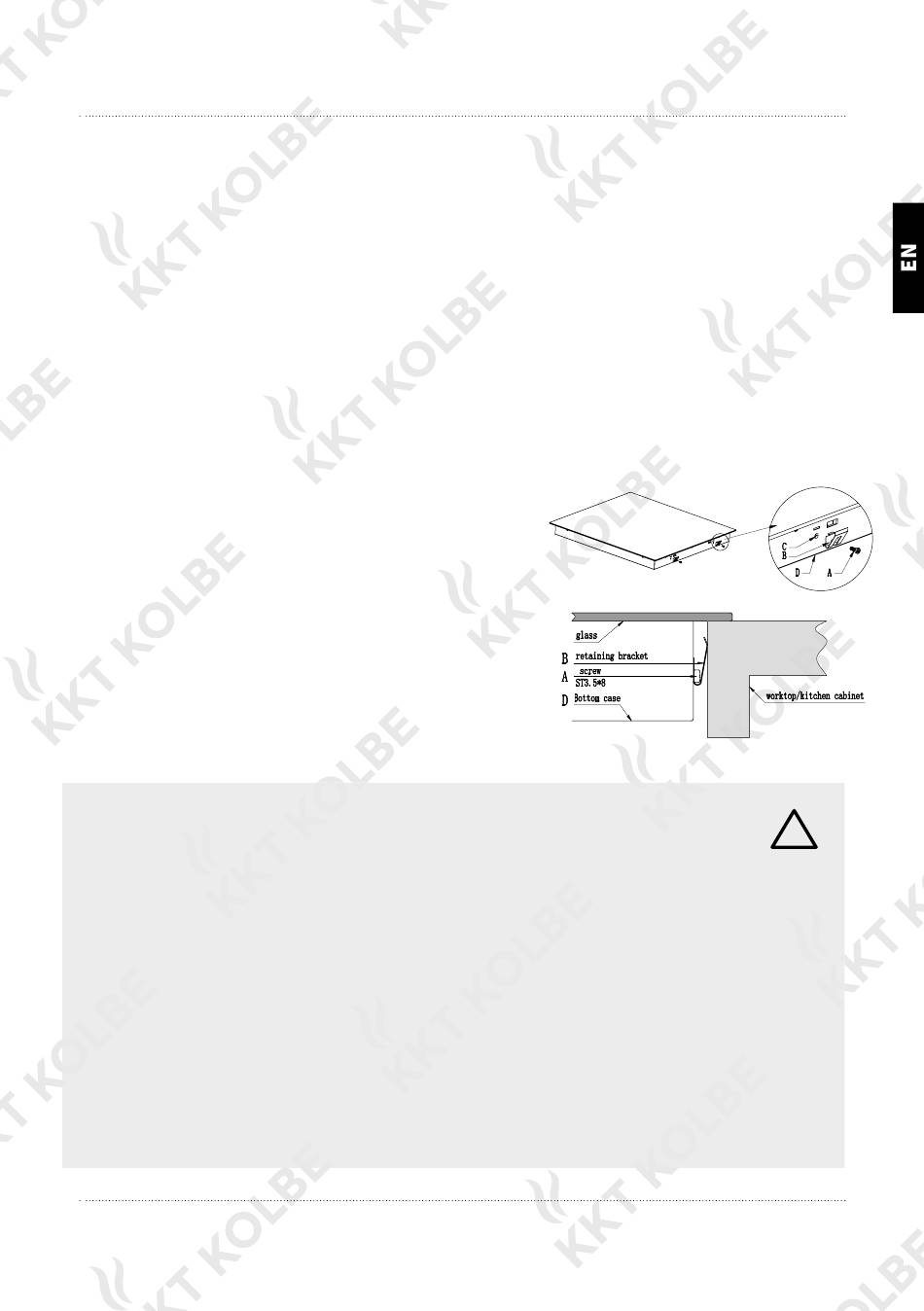

A Screw
B Retaining bracket
C Screw hole
D Bottom case
!
