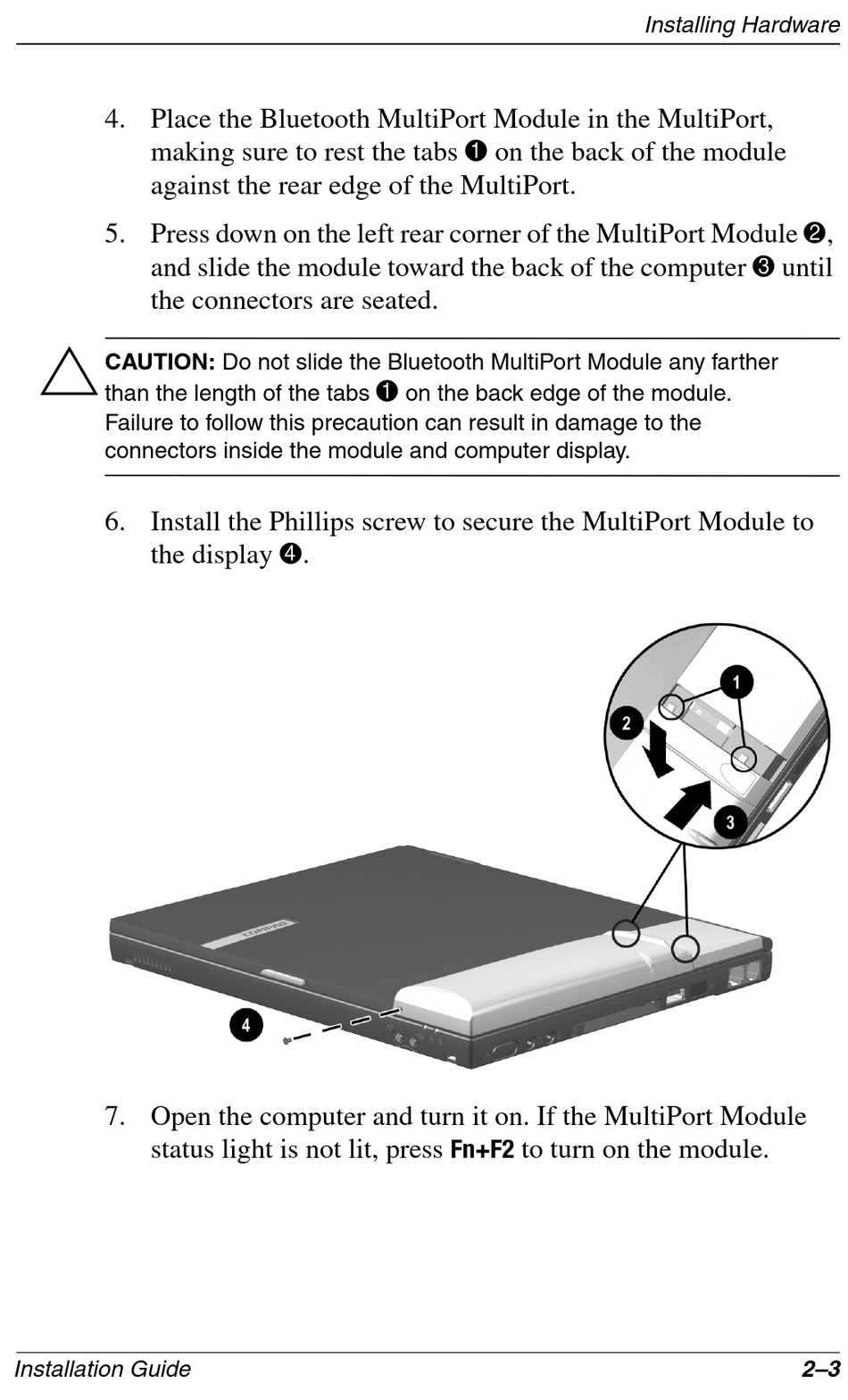

4. Place the Bluetooth MultiPort Module in the MultiPort,
making sure to rest the tabs 1 on the back of the module
against the rear edge of the MultiPort.
5. Press down on the left rear corner of the MultiPort Module 2,
and slide the module toward the back of the computer 3 until
the connectors are seated.
Ä
CAUTION: Do not slide the Bluetooth MultiPort Module any farther
than the length of the tabs
Failure to follow this precaution can result in damage to the
connectors inside the module and computer display.
6. Install the Phillips screw to secure the MultiPort Module to
the display 4.
7. Open the computer and turn it on. If the MultiPort Module
status light is not lit, press
Installation Guide
1
on the back edge of the module.
to turn on the module.
Fn+F2
Installing Hardware
2–3
