Installing Hardware

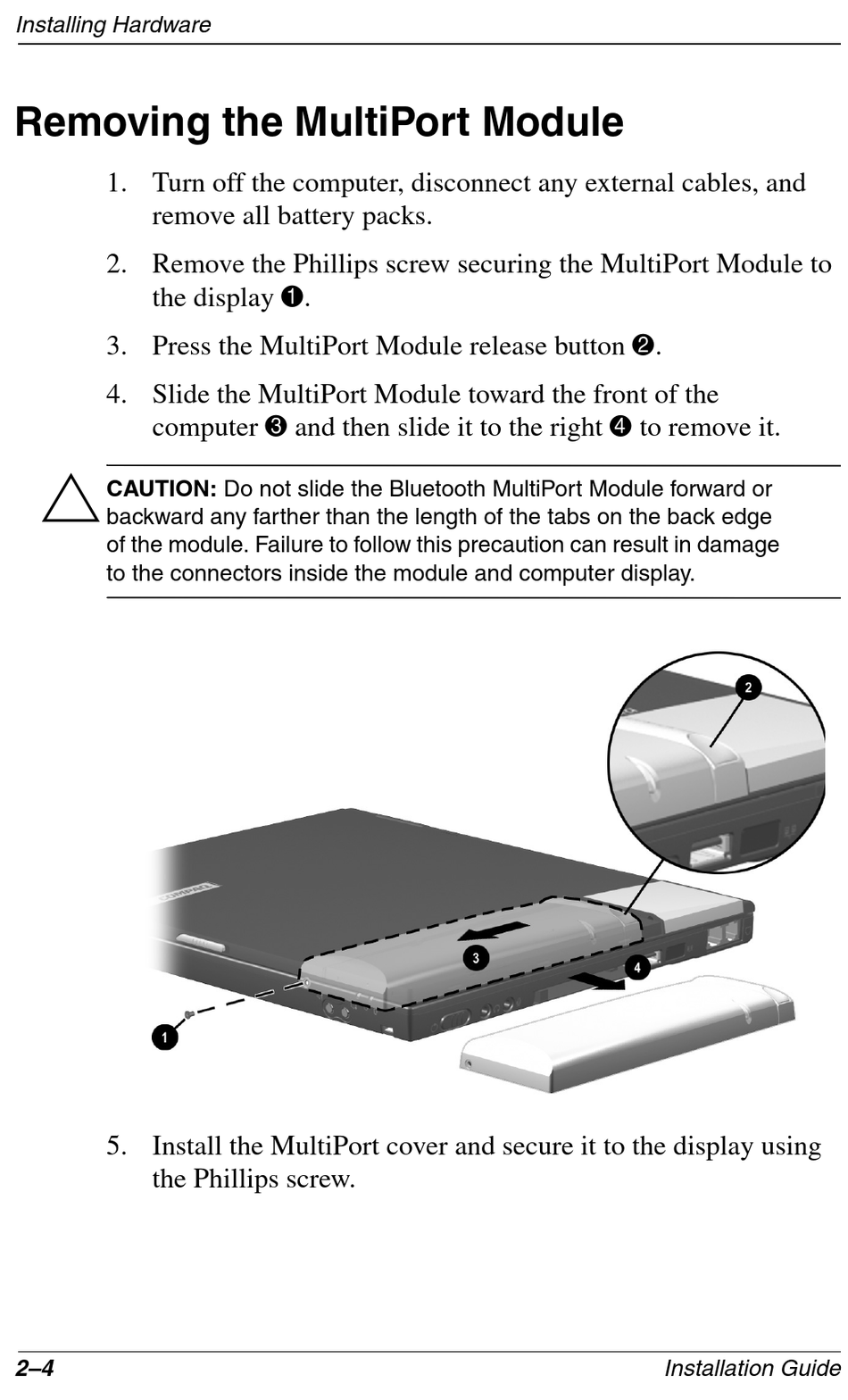

Removing the MultiPort Module

1. Turn off the computer, disconnect any external cables, and
remove all battery packs.
2. Remove the Phillips screw securing the MultiPort Module to
the display 1.
3. Press the MultiPort Module release button 2.
4. Slide the MultiPort Module toward the front of the
computer 3 and then slide it to the right 4 to remove it.
Ä
CAUTION: Do not slide the Bluetooth MultiPort Module forward or
backward any farther than the length of the tabs on the back edge
of the module. Failure to follow this precaution can result in damage
to the connectors inside the module and computer display.
5. Install the MultiPort cover and secure it to the display using
the Phillips screw.
2–4 Installation Guide
