Installing Hardware

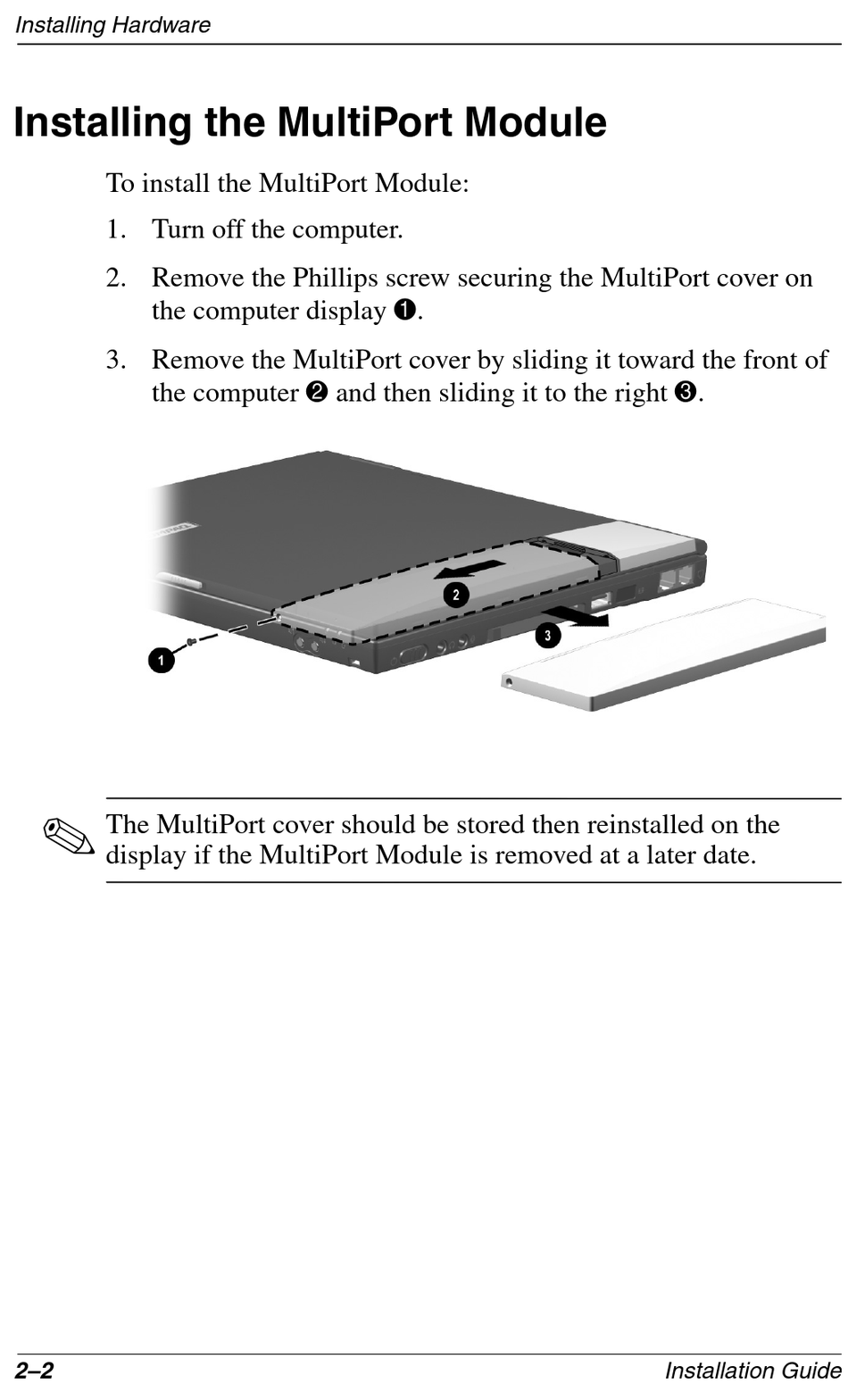

Installing the MultiPort Module

To install the MultiPort Module:
1. Turn off the computer.
2. Remove the Phillips screw securing the MultiPort cover on
the computer display 1.
3. Remove the MultiPort cover by sliding it toward the front of
the computer 2 and then sliding it to the right 3.
✎
The MultiPort cover should be stored then reinstalled on the
display if the MultiPort Module is removed at a later date.
2–2 Installation Guide
