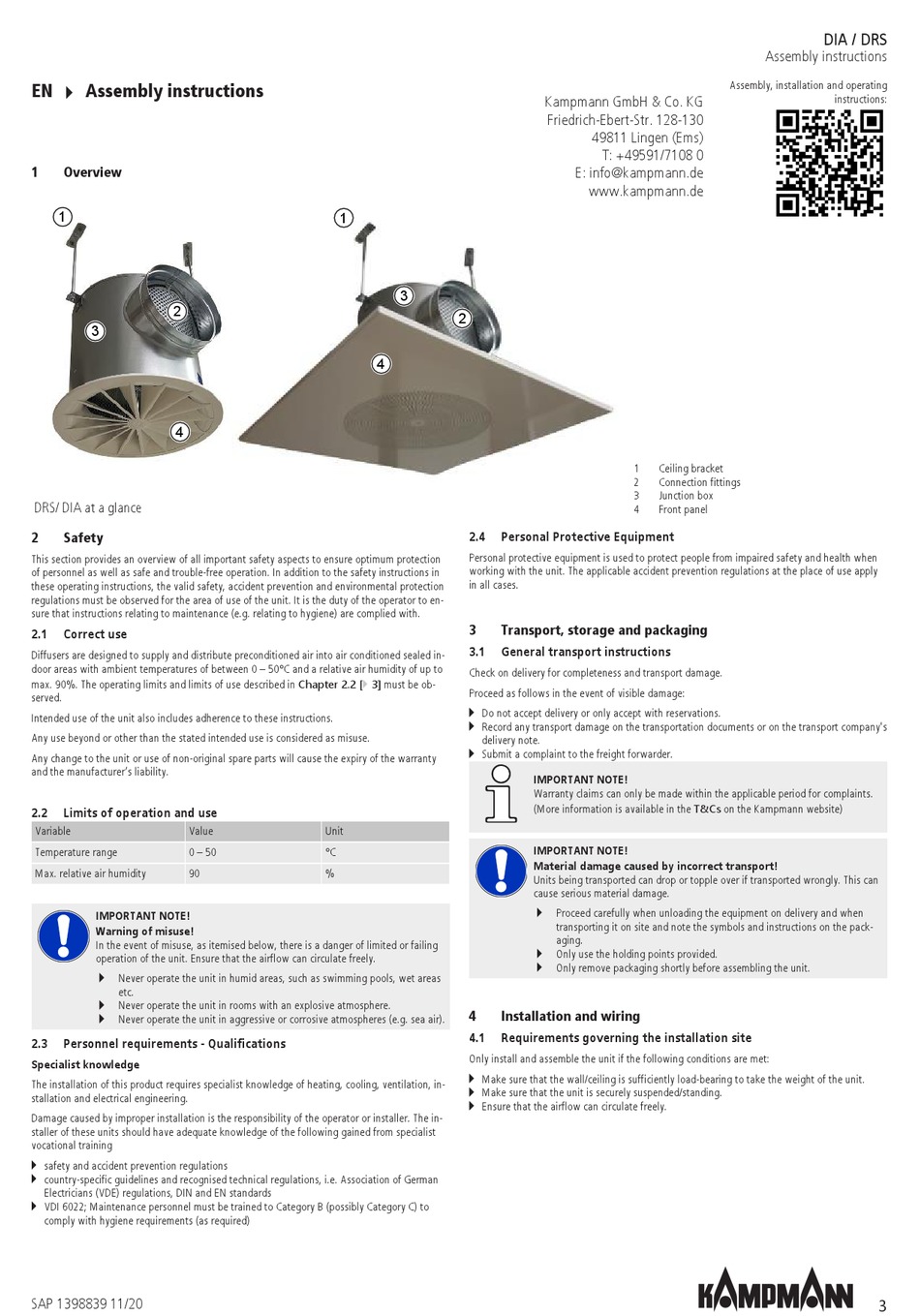

Kampmann DRS Montageanleitung Seite 3

EN Assembly instructions
1 Overview
1
2
3
4
DRS/ DIA at a glance
2 Safety
This section provides an overview of all important safety aspects to ensure optimum protection
of personnel as well as safe and trouble-free operation. In addition to the safety instructions in
these operating instructions, the valid safety, accident prevention and environmental protection
regulations must be observed for the area of use of the unit. It is the duty of the operator to en-
sure that instructions relating to maintenance (e.g. relating to hygiene) are complied with.
2.1 Correct use
Diffusers are designed to supply and distribute preconditioned air into air conditioned sealed in-
door areas with ambient temperatures of between 0 – 50°C and a relative air humidity of up to
max. 90%. The operating limits and limits of use described in Chapter 2.2 [} 3] must be ob-
served.
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any change to the unit or use of non-original spare parts will cause the expiry of the warranty
and the manufacturer's liability.
2.2 Limits of operation and use
Variable Value
Temperature range 0 – 50
Max. relative air humidity 90
IMPORTANT NOTE!
Warning of misuse!
In the event of misuse, as itemised below, there is a danger of limited or failing
operation of the unit. Ensure that the airflow can circulate freely.
Never operate the unit in humid areas, such as swimming pools, wet areas
etc.
Never operate the unit in rooms with an explosive atmosphere.
Never operate the unit in aggressive or corrosive atmospheres (e.g. sea air).
2.3 Personnel requirements - Qualifications
Specialist knowledge
The installation of this product requires specialist knowledge of heating, cooling, ventilation, in-
stallation and electrical engineering.
Damage caused by improper installation is the responsibility of the operator or installer. The in-
staller of these units should have adequate knowledge of the following gained from specialist
vocational training
safety and accident prevention regulations
country-specific guidelines and recognised technical regulations, i.e. Association of German
Electricians (VDE) regulations, DIN and EN standards
VDI 6022; Maintenance personnel must be trained to Category B (possibly Category C) to
comply with hygiene requirements (as required)
SAP 1398839 11/20
1
3
2
4
2.4
Personal protective equipment is used to protect people from impaired safety and health when
working with the unit. The applicable accident prevention regulations at the place of use apply
in all cases.
3
3.1
Check on delivery for completeness and transport damage.
Proceed as follows in the event of visible damage:
Do not accept delivery or only accept with reservations.
Record any transport damage on the transportation documents or on the transport company's
delivery note.
Submit a complaint to the freight forwarder.
Unit
°C
%
4
4.1
Only install and assemble the unit if the following conditions are met:
Make sure that the wall/ceiling is sufficiently load-bearing to take the weight of the unit.
Make sure that the unit is securely suspended/standing.
Ensure that the airflow can circulate freely.
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.kampmann.de
1 Ceiling bracket
2 Connection fittings
3 Junction box
4 Front panel
Personal Protective Equipment
Transport, storage and packaging
General transport instructions
IMPORTANT NOTE!
Warranty claims can only be made within the applicable period for complaints.
(More information is available in the T&Cs on the Kampmann website)
IMPORTANT NOTE!
Material damage caused by incorrect transport!
Units being transported can drop or topple over if transported wrongly. This can
cause serious material damage.
Proceed carefully when unloading the equipment on delivery and when
transporting it on site and note the symbols and instructions on the pack-
aging.
Only use the holding points provided.
Only remove packaging shortly before assembling the unit.
Installation and wiring
Requirements governing the installation site
DIA / DRS
Assembly instructions
Assembly, installation and operating
instructions:
3
