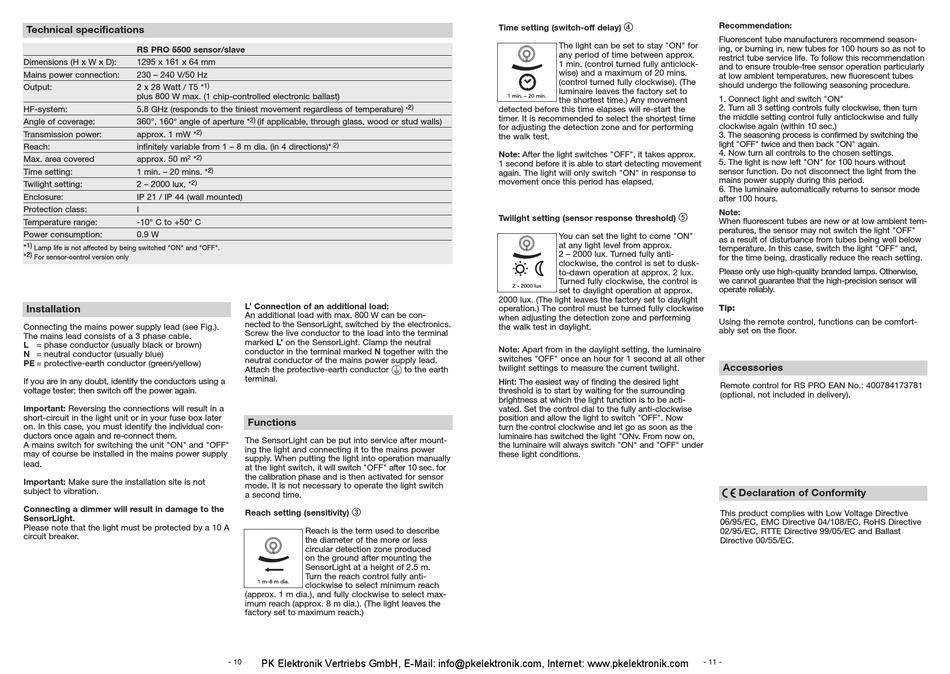

Technical specifications

RS PRO 5500 sensor/slave
Dimensions (H x W x D): 1295 x 161 x 64 mm
Mains power connection: 230 – 240 V/50 Hz
Output: 2 x 28 Watt / T5 *
plus 800 W max. (1 chip-controlled electronic ballast)
HF-system: 5.8 GHz (responds to the tiniest movement regardless of temperature)
Angle of coverage: 360°, 160° angle of aperture *
Transmission power: approx. 1 mW * 2)
Reach: infinitely variable from 1 – 8 m dia. (in 4 directions)*
Max. area covered approx. 50 m 2 * 2)
Time setting: 1 min. – 20 mins. *
Twilight setting: 2 – 2000 lux, * 2)
Enclosure: IP 21 / IP 44 (wall mounted)
Protection class: I
Temperature range: -10° C to +50° C
Power consumption: 0.9 W
* 1) Lamp life is not affected by being switched "ON" and "OFF".
2) For sensor-control version only
*
Installation
Connecting the mains power supply lead (see Fig.).
The mains lead consists of a 3 phase cable.
L = phase conductor (usually black or brown)
N = neutral conductor (usually blue)
PE = protective-earth conductor (green/yellow)
If you are in any doubt, identify the conductors using a
voltage tester; then switch off the power again.
Important: Reversing the connections will result in a
short-circuit in the light unit or in your fuse box later
on. In this case, you must identify the individual con-
ductors once again and re-connect them.
A mains switch for switching the unit "ON" and "OFF"
may of course be installed in the mains power supply
lead.
Important: Make sure the installation site is not
subject to vibration.
Connecting a dimmer will result in damage to the
SensorLight.
Please note that the light must be protected by a 10 A
circuit breaker.
1)
2)
(if applicable, through glass, wood or stud walls)
2)
2)
L' Connection of an additional load:
An additional load with max. 800 W can be con-
nected to the SensorLight, switched by the electronics.
Screw the live conductor to the load into the terminal
marked L' on the SensorLight. Clamp the neutral
conductor in the terminal marked N together with the
neutral conductor of the mains power supply lead.
Attach the protective-earth conductor
terminal.
Functions
The SensorLight can be put into service after mount-
ing the light and connecting it to the mains power
supply. When putting the light into operation manually
at the light switch, it will switch "OFF" after 10 sec. for
the calibration phase and is then activated for sensor
mode. It is not necessary to operate the light switch
a second time.
Reach setting (sensitivity) c
Reach is the term used to describe
the diameter of the more or less
circular detection zone produced
on the ground after mounting the
SensorLight at a height of 2.5 m.
Turn the reach control fully anti-
1 m–8 m dia.
clockwise to select minimum reach
(approx. 1 m dia.), and fully clockwise to select max-
imum reach (approx. 8 m dia.). (The light leaves the
factory set to maximum reach.)
PK Elektronik Vertriebs GmbH, E-Mail: info@pkelektronik.com, Internet: www.pkelektronik.com
- 10 -
Time setting (switch-off delay)
The light can be set to stay "ON" for
any period of time between approx.
1 min. (control turned fully anticlock-
wise) and a maximum of 20 mins.
(control turned fully clockwise). (The
luminaire leaves the factory set to
1 min. – 20 min.
the shortest time.) Any movement
* 2) detected before this time elapses will re-start the
timer. It is recommended to select the shortest time
for adjusting the detection zone and for performing
the walk test.
Note: After the light switches "OFF", it takes approx.
1 second before it is able to start detecting movement
again. The light will only switch "ON" in response to
movement once this period has elapsed.
Twilight setting (sensor response threshold)
You can set the light to come "ON"
at any light level from approx.
2 – 2000 lux. Turned fully anti-
clockwise, the control is set to dusk-
to-dawn operation at approx. 2 lux.
Turned fully clockwise, the control is
2 - 2000 lux
set to daylight operation at approx.
2000 lux. (The light leaves the factory set to daylight
operation.) The control must be turned fully clockwise
when adjusting the detection zone and performing
the walk test in daylight.
Note: Apart from in the daylight setting, the luminaire
switches "OFF" once an hour for 1 second at all other
twilight settings to measure the current twilight.
to the earth
Hint: The easiest way of finding the desired light
threshold is to start by waiting for the surrounding
brightness at which the light function is to be acti-
vated. Set the control dial to the fully anti-clockwise
position and allow the light to switch "OFF". Now
turn the control clockwise and let go as soon as the
luminaire has switched the light "ONv. From now on,
the luminaire will always switch "ON" and "OFF" under
these light conditions.
Recommendation:
d
Fluorescent tube manufacturers recommend season-
ing, or burning in, new tubes for 100 hours so as not to
restrict tube service life. To follow this recommendation
and to ensure trouble-free sensor operation particularly
at low ambient temperatures, new fluorescent tubes
should undergo the following seasoning procedure.
1. Connect light and switch "ON"
2. Turn all 3 setting controls fully clockwise, then turn
the middle setting control fully anticlockwise and fully
clockwise again (within 10 sec.)
3. The seasoning process is confirmed by switching the
light "OFF" twice and then back "ON" again.
4. Now turn all controls to the chosen settings.
5. The light is now left "ON" for 100 hours without
sensor function. Do not disconnect the light from the
mains power supply during this period.
6. The luminaire automatically returns to sensor mode
after 100 hours.
Note:
e
When fluorescent tubes are new or at low ambient tem-
peratures, the sensor may not switch the light "OFF"
as a result of disturbance from tubes being well below
temperature. In this case, switch the light "OFF" and,
for the time being, drastically reduce the reach setting.
Please only use high-quality branded lamps. Otherwise,
we cannot guarantee that the high-precision sensor will
operate reliably.
Tip:
Using the remote control, functions can be comfort-
ably set on the floor.
Accessories
Remote control for RS PRO EAN No.: 400784173781
(optional, not included in delivery).

Declaration of Conformity

This product complies with Low Voltage Directive
06/95/EC, EMC Directive 04/108/EC, RoHS Directive
02/95/EC, RTTE Directive 99/05/EC and Ballast
Directive 00/55/EC.
