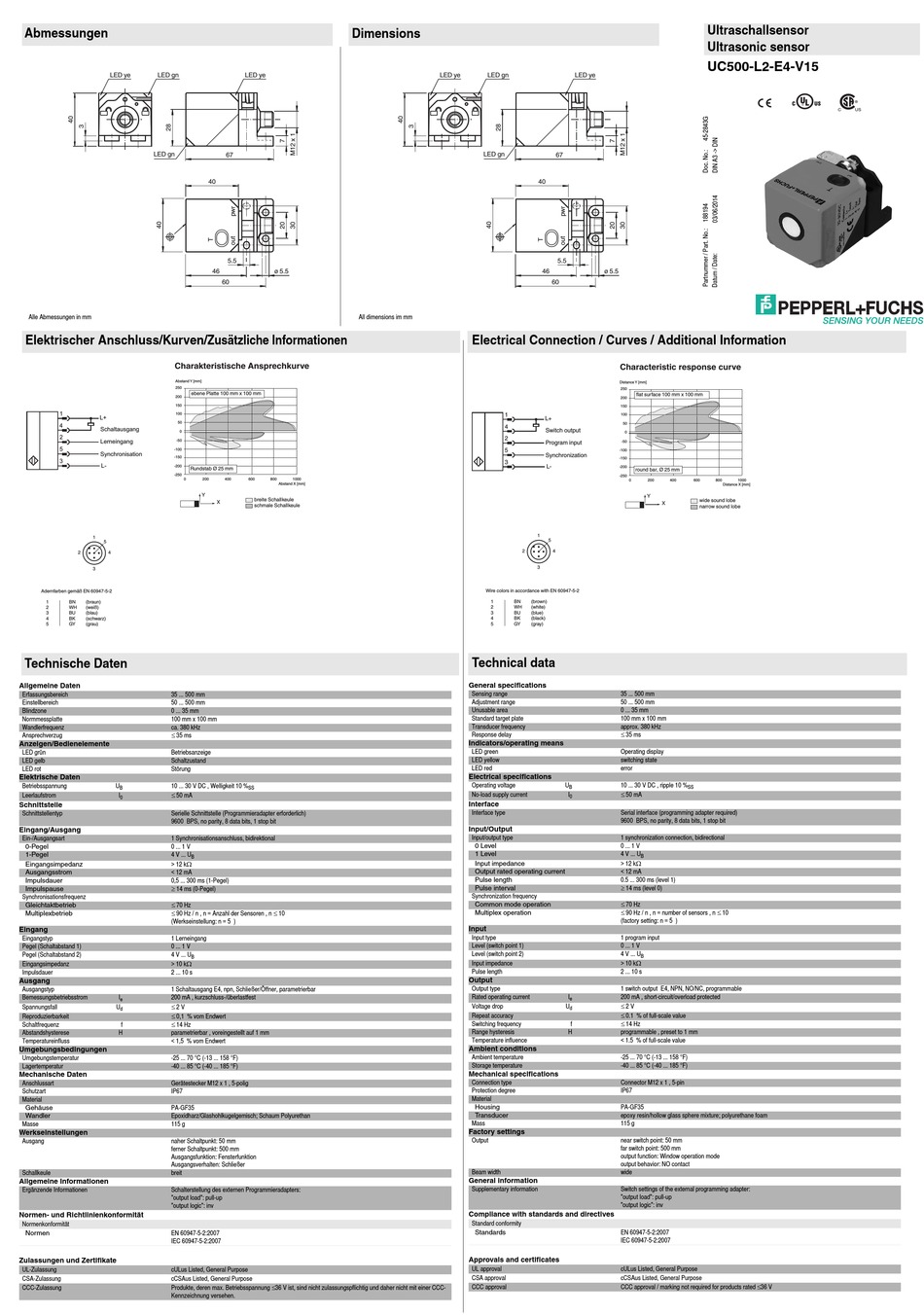

Ultraschallsensor

Werbung

Abmessungen
LED ye
LED gn
LED gn
Alle Abmessungen in mm
Elektrischer Anschluss/Kurven/Zusätzliche Informationen
Charakteristische Ansprechkurve
Abstand Y [mm]
250
ebene Platte 100 mm x 100 mm
200
150
1
100
L+
50
4
Schaltausgang
0
2
Lerneingang
-50
5
-100
Synchronisation
-150
3
L-
-200
Rundstab Ø 25 mm
-250
0
1
5
2
4
3
Adernfarben gemäß EN 60947-5-2
1
BN
(braun)
2
WH
(weiß)
3
BU
(blau)
4
BK
(schwarz)
5
GY
(grau)
Technische Daten
Allgemeine Daten
Erfassungsbereich
35 ... 500 mm
Einstellbereich
50 ... 500 mm
Blindzone
0 ... 35 mm
Normmessplatte
100 mm x 100 mm
Wandlerfrequenz
ca. 380 kHz
 35 ms
Ansprechverzug
Anzeigen/Bedienelemente
LED grün
Betriebsanzeige
LED gelb
Schaltzustand
LED rot
Störung
Elektrische Daten
Betriebsspannung
U
10 ... 30 V DC , Welligkeit 10 %
B
 50 mA
Leerlaufstrom
I
0
Schnittstelle
Serielle Schnittstelle (Programmieradapter erforderlich) 
Schnittstellentyp
9600 BPS, no parity, 8 data bits, 1 stop bit
Eingang/Ausgang
Ein-/Ausgangsart
1 Synchronisationsanschluss, bidirektional
0-Pegel
0 ... 1 V
1-Pegel
4 V ... U
B
Eingangsimpedanz
> 12 k
Ausgangsstrom
< 12 mA
Impulsdauer
0,5 ... 300 ms (1-Pegel)
 14 ms (0-Pegel)
Impulspause
Synchronisationsfrequenz
 70 Hz
Gleichtaktbetrieb
 90 Hz / n , n = Anzahl der Sensoren , n  10 
Multiplexbetrieb
(Werkseinstellung: n = 5 )
Eingang
Eingangstyp
1 Lerneingang
Pegel (Schaltabstand 1)
0 ... 1 V
Pegel (Schaltabstand 2)
4 V ... U
B
Eingangsimpedanz
> 10 k
Impulsdauer
2 ... 10 s
Ausgang
Ausgangstyp
1 Schaltausgang E4, npn, Schließer/Öffner, parametrierbar
Bemessungsbetriebsstrom
I
200 mA , kurzschluss-/überlastfest
e
 2 V
Spannungsfall
U
d
 0,1 % vom Endwert
Reproduzierbarkeit
 14 Hz
Schaltfrequenz
f
Abstandshysterese
H
parametrierbar , voreingestellt auf 1 mm
Temperatureinfluss
< 1,5 % vom Endwert
Umgebungsbedingungen
Umgebungstemperatur
-25 ... 70 °C (-13 ... 158 °F)
Lagertemperatur
-40 ... 85 °C (-40 ... 185 °F)
Mechanische Daten
Anschlussart
Gerätestecker M12 x 1 , 5-polig
Schutzart
IP67
Material
Gehäuse
PA-GF35
Wandler
Epoxidharz/Glashohlkugelgemisch; Schaum Polyurethan
Masse
115 g
Werkseinstellungen
naher Schaltpunkt: 50 mm 
Ausgang
ferner Schaltpunkt: 500 mm 
Ausgangsfunktion: Fensterfunktion 
Ausgangsverhalten: Schließer
Schallkeule
breit
Allgemeine Informationen
Schalterstellung des externen Programmieradapters: 
Ergänzende Informationen
"output load": pull-up 
"output logic": inv
Normen- und Richtlinienkonformität
Normenkonformität
EN 60947-5-2:2007 
Normen
IEC 60947-5-2:2007
Zulassungen und Zertifikate
UL-Zulassung
cULus Listed, General Purpose
CSA-Zulassung
cCSAus Listed, General Purpose
Produkte, deren max. Betriebsspannung 36 V ist, sind nicht zulassungspflichtig und daher nicht mit einer CCC-
CCC-Zulassung
Kennzeichnung versehen.
Dimensions
LED ye
67
40
5.5
46
ø 5.5
60
All dimensions im mm
200
400
600
800
1000
Abstand X [mm]
Y
breite Schallkeule
X
schmale Schallkeule
SS
LED ye
LED gn
LED ye
LED gn
67
40
5.5
46
ø 5.5
60
Electrical Connection / Curves / Additional Information
1
L+
4
Switch output
2
Program input
5
Synchronization
3
L-
1
5
2
4
3
Wire colors in accordance with EN 60947-5-2
1
BN
(brown)
2
WH
(white)
3
BU
(blue)
4
BK
(black)
5
GY
(gray)
Technical data
General specifications
Sensing range
Adjustment range
Unusable area
Standard target plate
Transducer frequency
Response delay
Indicators/operating means
LED green
LED yellow
LED red
Electrical specifications
Operating voltage
U
B
No-load supply current
I
0
Interface
Interface type
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Output rated operating current
Pulse length
Pulse interval
Synchronization frequency
Common mode operation
Multiplex operation
Input
Input type
Level (switch point 1)
Level (switch point 2)
Input impedance
Pulse length
Output
Output type
Rated operating current
I
e
Voltage drop
U
d
Repeat accuracy
Switching frequency
f
Range hysteresis
H
Temperature influence
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
Protection degree
Material
Housing
Transducer
Mass
Factory settings
Output
Beam width
General information
Supplementary information
Compliance with standards and directives
Standard conformity
Standards
Approvals and certificates
UL approval
CSA approval
CCC approval
Ultraschallsensor
Ultrasonic sensor
UC500-L2-E4-V15
Characteristic response curve
Distance Y [mm]
250
flat surface 100 mm x 100 mm
200
150
100
50
0
-50
-100
-150
-200
round bar, Ø 25 mm
-250
0
200
400
600
800
1000
Distance X [mm]
Y
wide sound lobe
X
narrow sound lobe
35 ... 500 mm
50 ... 500 mm
0 ... 35 mm
100 mm x 100 mm
approx. 380 kHz
 35 ms
Operating display
switching state
error
10 ... 30 V DC , ripple 10 %
SS
 50 mA
Serial interface (programming adapter required) 
9600 BPS, no parity, 8 data bits, 1 stop bit
1 synchronization connection, bidirectional
0 ... 1 V
4 V ... U
B
> 12 k
< 12 mA
0.5 ... 300 ms (level 1)
 14 ms (level 0)
 70 Hz
 90 Hz / n , n = number of sensors , n  10 
(factory setting: n = 5 )
1 program input
0 ... 1 V
4 V ... U
B
> 10 k
2 ... 10 s
1 switch output E4, NPN, NO/NC, programmable
200 mA , short-circuit/overload protected
 2 V
 0.1 % of full-scale value
 14 Hz
programmable , preset to 1 mm
< 1.5 % of full-scale value
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
Connector M12 x 1 , 5-pin
IP67
PA-GF35
epoxy resin/hollow glass sphere mixture; polyurethane foam
115 g
near switch point: 50 mm 
far switch point: 500 mm 
output function: Window operation mode 
output behavior: NO contact
wide
Switch settings of the external programming adapter: 
"output load": pull-up 
"output logic": inv
EN 60947-5-2:2007 
IEC 60947-5-2:2007
cULus Listed, General Purpose
cCSAus Listed, General Purpose
CCC approval / marking not required for products rated 36 V
