PEERLESS PARAMOUNT PF640 Anbringung Und Zusammenbau Seite 7

For Flat Back Screen
Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown
2-1
below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen
2-2
as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not
over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
SCREEN
ADAPTER
BRACKET (BB)
SCREEN
SPACER
BRACKET (BB)
7 of 34

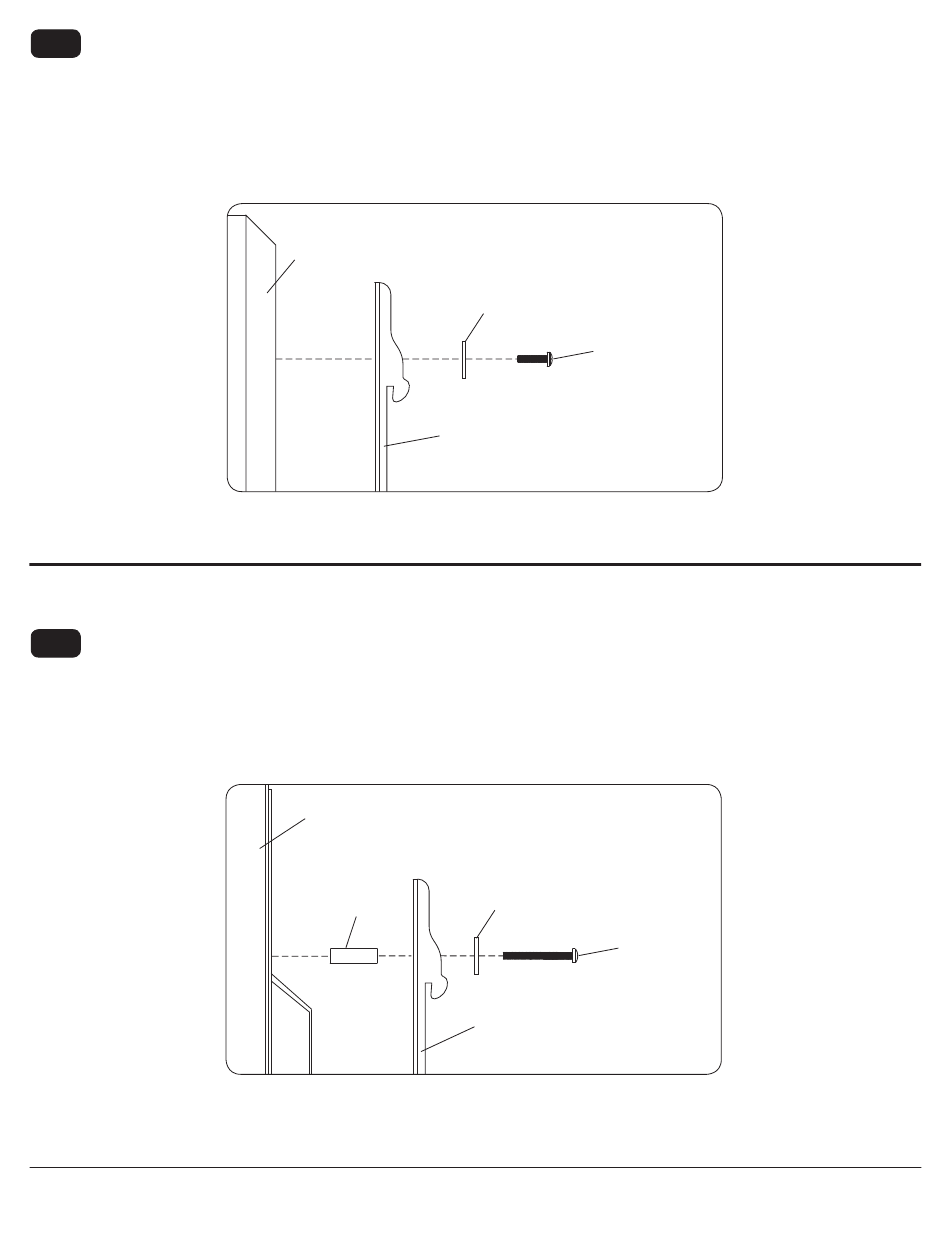

fi g. 2.1
WASHER
SCREW
fi g. 2.2
WASHER
SCREW
ADAPTER
