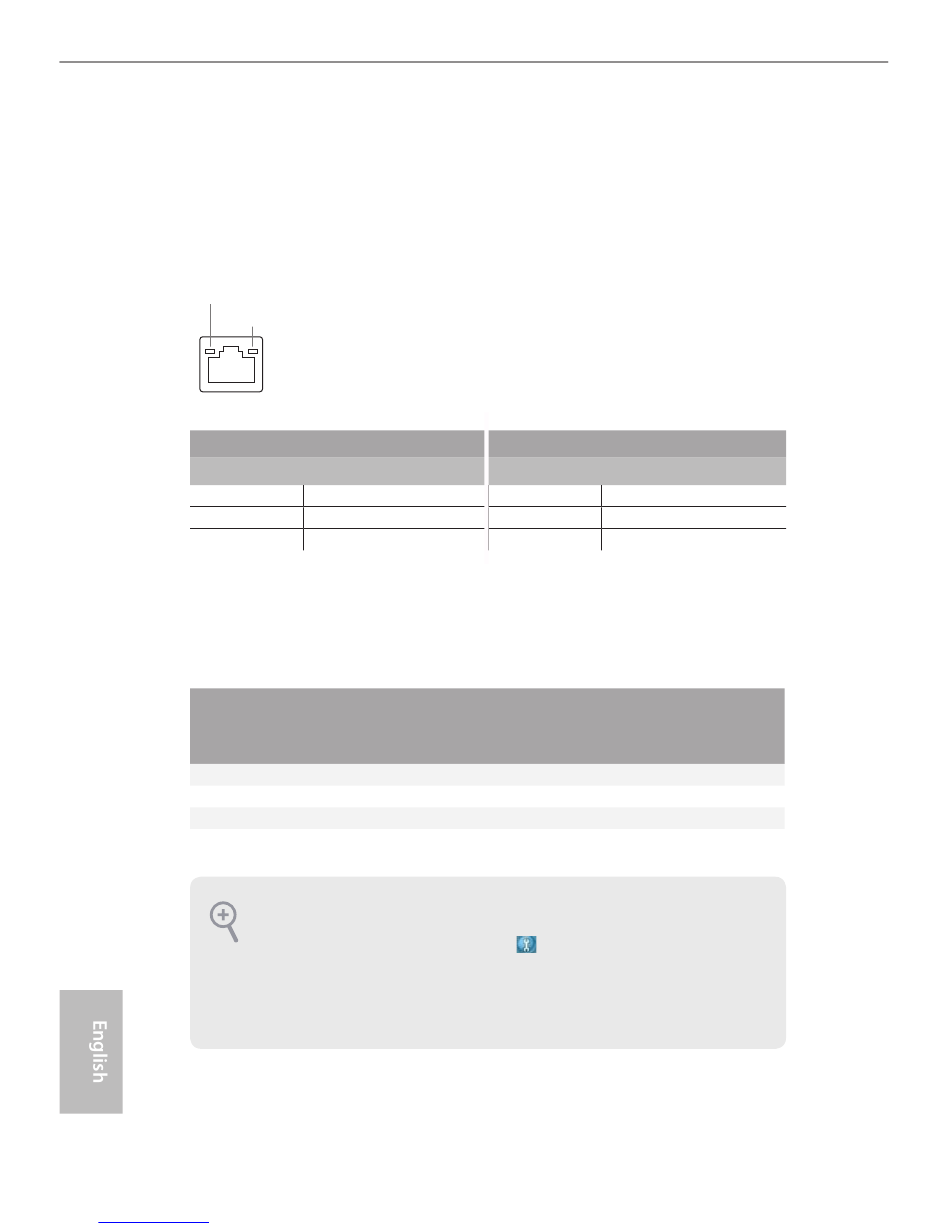

* HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them. Please refer
to the BIOS setup option "HDMI/DP Switch" on page 41 of user manual in the support CD.
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
*** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Front Speaker
Channels
(No. 8)
2
V
4
V
6
V
8
V
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find the "Mixer" tool
on your system. Please select "Mixer ToolBox"
streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are
allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/
Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front
panel audio.
manuals search engine
Speed LED
Status
Description
Off
10Mbps connection
Orange
100Mbps connection
Green
1Gbps connection
Rear Speaker
Central / Bass
(No. 6)
(No. 5)
--
--
V
--
V
V
V
V
, click "Enable playback multi-
Line In or
Side Speaker
(No. 7)
--
--
--
V
