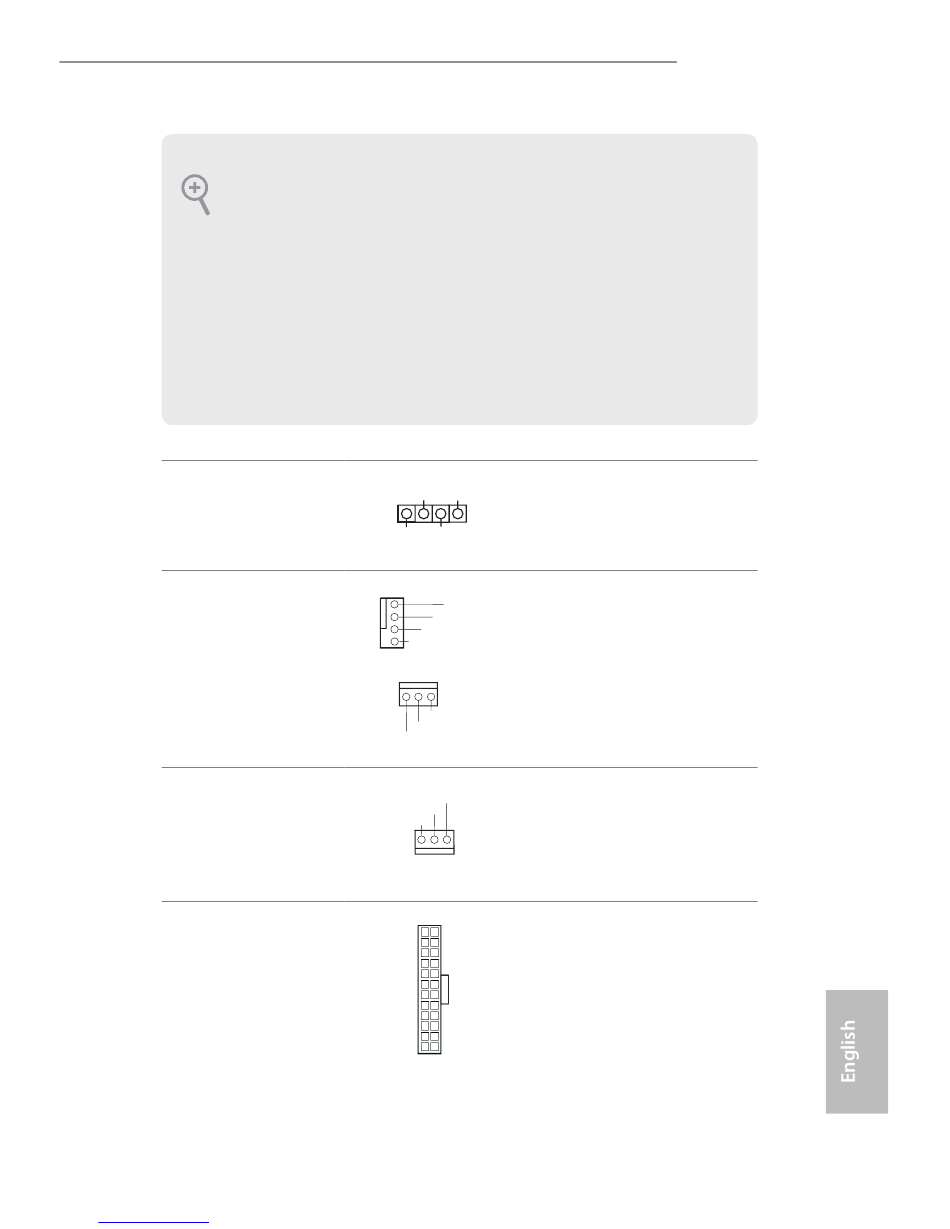

Chassis Speaker Header
(4-pin SPEAKER1)
(see p.1, No. 12)
Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 4)
(3-pin CHA_FAN2)
(see p.1, No. 6)
CPU Fan Connector
(3-pin CPU_FAN1)
(see p.1, No. 13)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)
Downloaded from www.Manualslib.com
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to
connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel
and adjust "Recording Volume".
DUMMY
1
1
2
3
4
FAN_VOLTAGE
manuals search engine
Please connect the chassis
SPEAKER
speaker to this header.
+5V DUMMY
Please connect fan cables
GND
+12V to the fan connectors and
FAN_SPEED
FAN_SPEED_CONTROL match the black wire to
the ground pin.
GND
+12V
FAN_SPEED
Please connect fan cables
FAN_SPEED
to the fan connectors and
GND
match the black wire to
the ground pin.
This motherboard pro-
12 24
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
1 13
13.
