Invacare® HomeFill® II

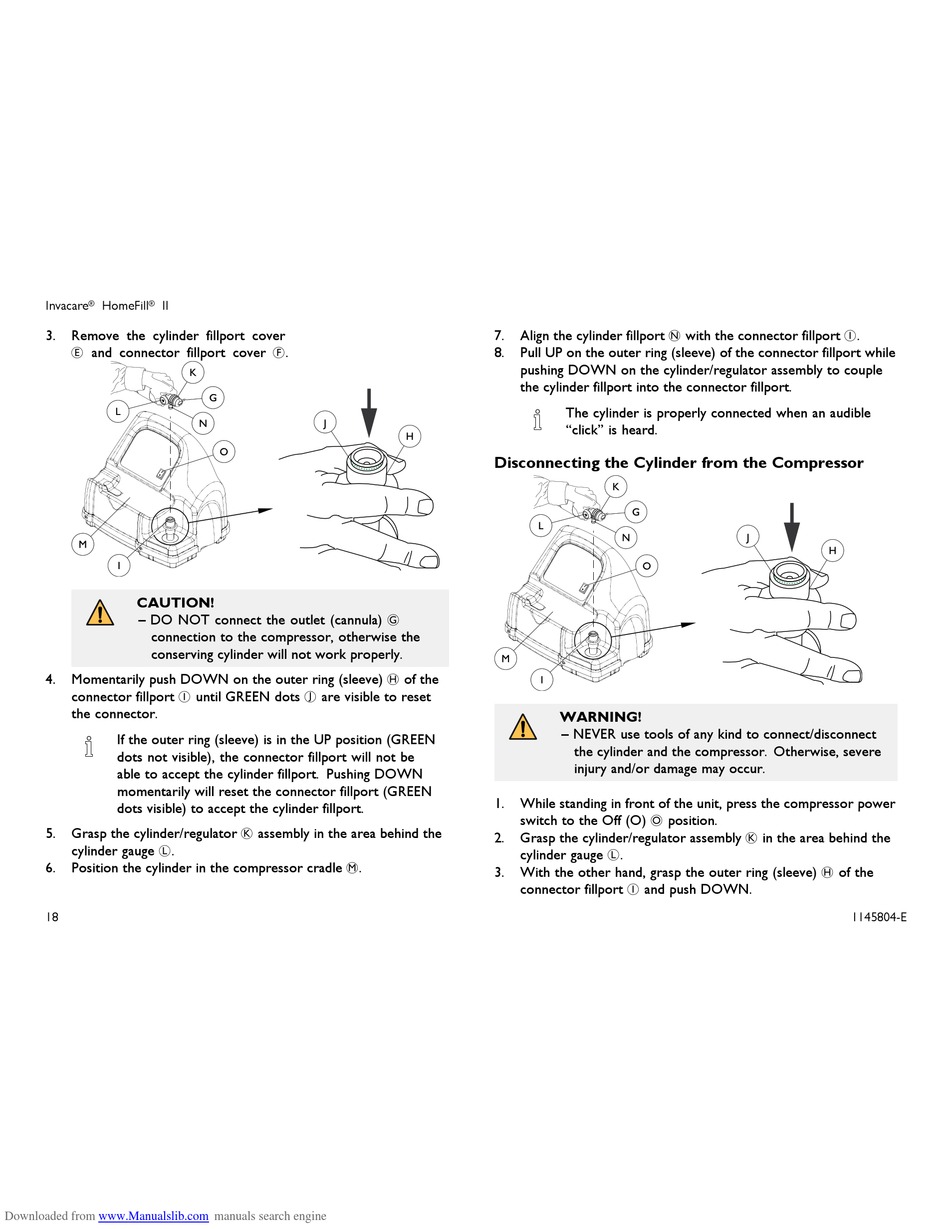

3. Remove the cylinder fillport cover
E and connector fillport cover F.
CAUTION!
– DO NOT connect the outlet (cannula) G
connection to the compressor, otherwise the
conserving cylinder will not work properly.
4. Momentarily push DOWN on the outer ring (sleeve) H of the
connector fillport I until GREEN dots J are visible to reset
the connector.
If the outer ring (sleeve) is in the UP position (GREEN
dots not visible), the connector fillport will not be
able to accept the cylinder fillport. Pushing DOWN
momentarily will reset the connector fillport (GREEN
dots visible) to accept the cylinder fillport.
5. Grasp the cylinder/regulator K assembly in the area behind the
cylinder gauge L.
Position the cylinder in the compressor cradle M.
6.
18
Downloaded from www.Manualslib.com manuals search engine
Align the cylinder fillport N with the connector fillport I.
7.
8. Pull UP on the outer ring (sleeve) of the connector fillport while
pushing DOWN on the cylinder/regulator assembly to couple
the cylinder fillport into the connector fillport.
The cylinder is properly connected when an audible
"click" is heard.
Disconnecting the Cylinder from the Compressor
WARNING!
– NEVER use tools of any kind to connect/disconnect
the cylinder and the compressor. Otherwise, severe
injury and/or damage may occur.
1. While standing in front of the unit, press the compressor power
switch to the Off (O) O position.
2. Grasp the cylinder/regulator assembly K in the area behind the
cylinder gauge L.
With the other hand, grasp the outer ring (sleeve) H of the
3.
connector fillport I and push DOWN.
1145804-E
