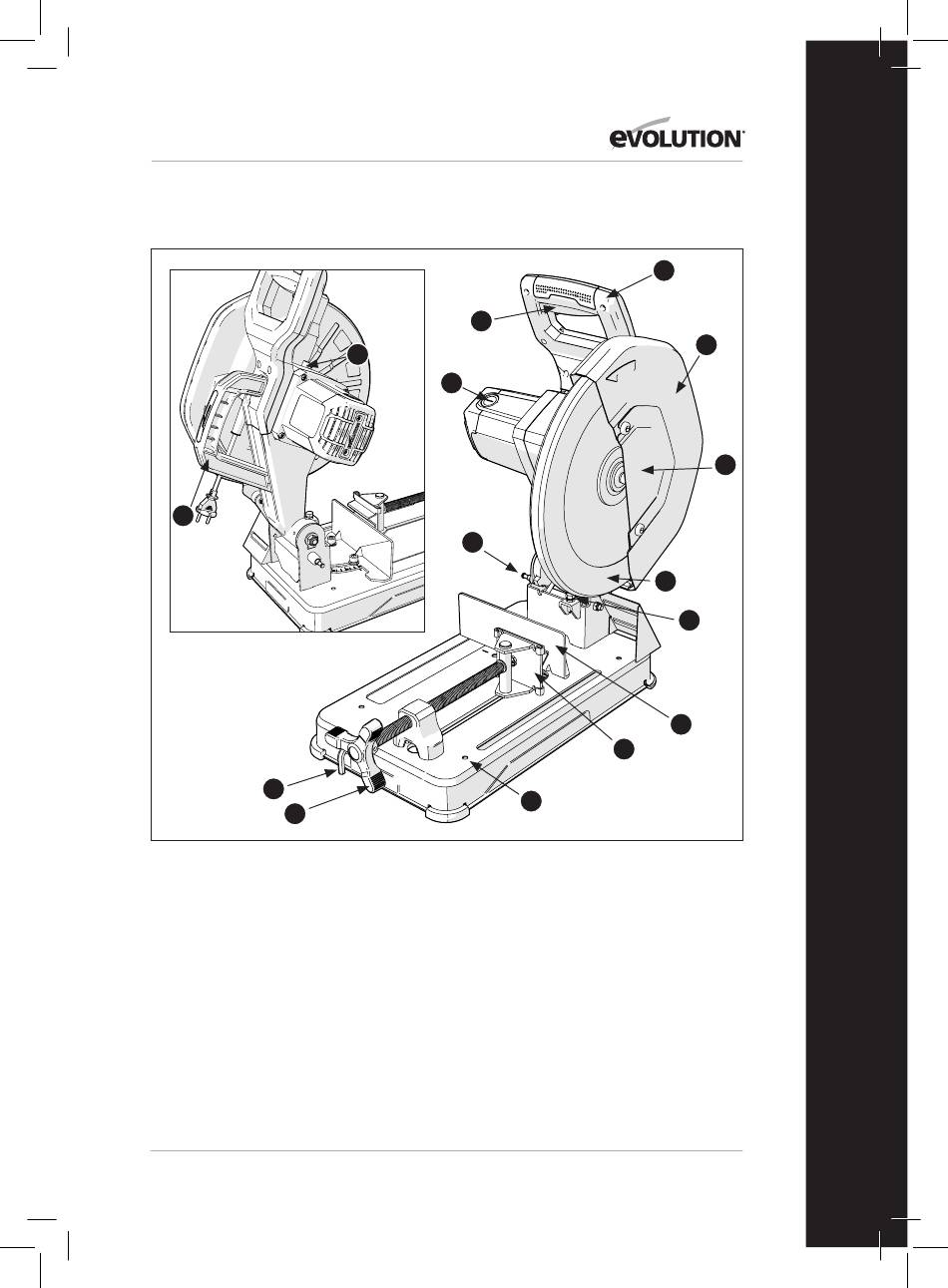

MACHINE OVERVIEW

15
9
12
1. LOWER BLADE GUARD
2. UPPER BLADE GUARD
3. FRONT SWIVELLING VICE JAW
4. REPOSITIONABLE REAR VICE JAW
5. CUTTING HANDLE
6. CUTTING HEAD HOLD DOWN PIN
7. TRAVEL STOP ADJUSTMENT SCREW
8. WORK BENCH MOUNTING HOLES X4
9. BLADE CHANGE HEX KEY
10. BLADE ARBOR GUARD
11. ARBOR LOCK BUTTON
12. VICE HANDLE
14
11
13
6
8
13. CARBON BRUSHES ACCESS CAP
14. ON/OFF TRIGGER SWITCH
15. CARRY HANDLE
11
5
2
10
1
7
4
3
