Resistor:
l
To differentiate the units of resistors, such symbol as K is
used: the symbol K means 1000 ohm and the resistor
without any symbol is ohm-type resistor.
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to elec-
trolytic capacitor, the expression " capacitance/with-stand
voltage" is used.
Parts marked with " A" ( ANT ) are important for main-
l
taining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
Schematic diagram and Wiring Side of P.W.Board for this
l
model are subject to change for improvement without prior
notice.
1
0
0
2
3
4
5

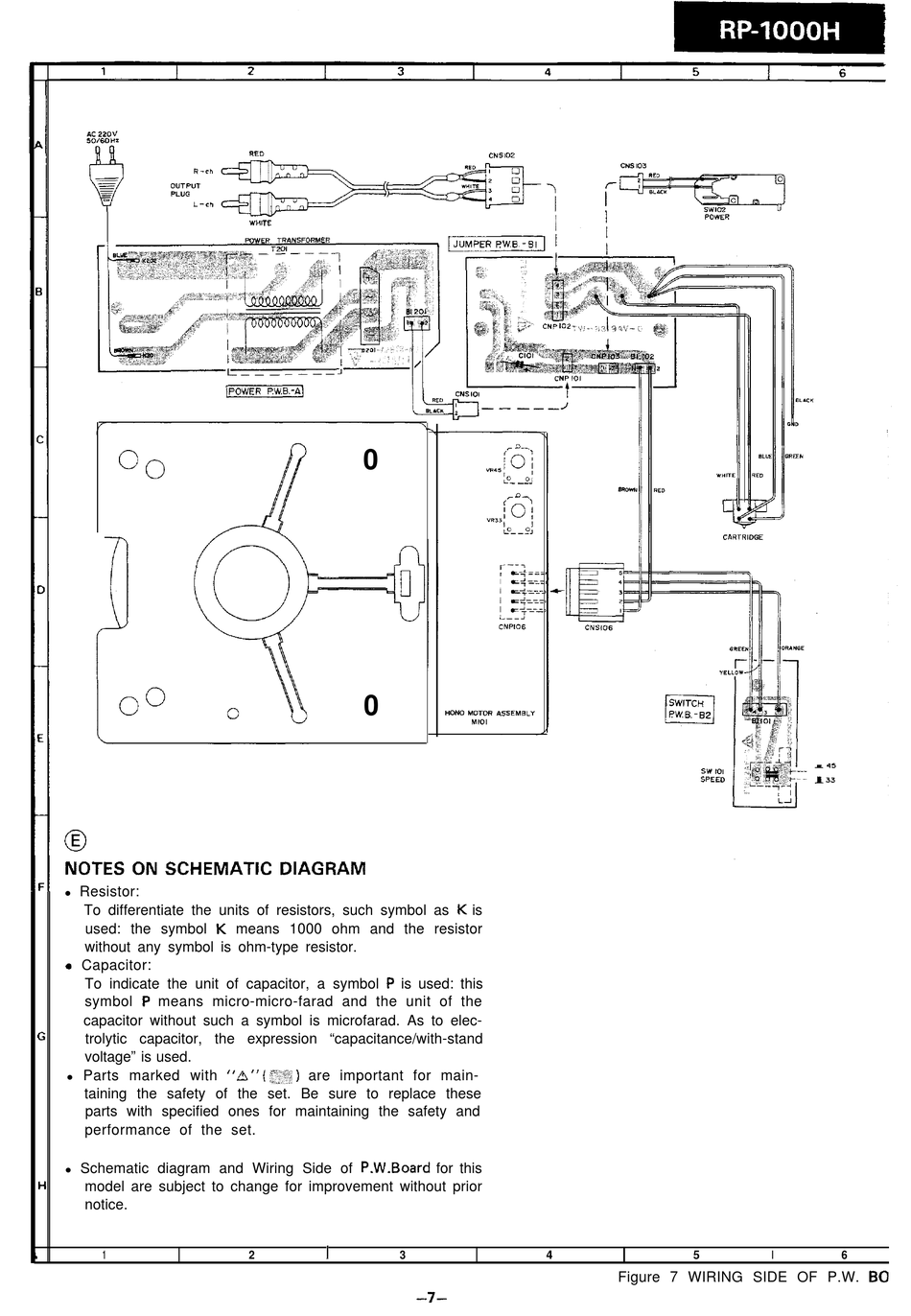

Figure 7 WIRING SIDE OF P.W. BO
I
6
