Installation Overview - HomeMatic IP HmIP-BROLL Installations- Und Bedienungsanleitung

Rollladenaktor für markenschalter
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Device overview (see figure 1):
(A)
System button (teach-in button and LED)
(B)
Connecting terminal L ( phase conductor)
(C)
Connecting terminal 1 (motor „down")
(D)
Connecting terminal 2 (motor "up")
(E)
Connecting cable for N (neutral conductor)

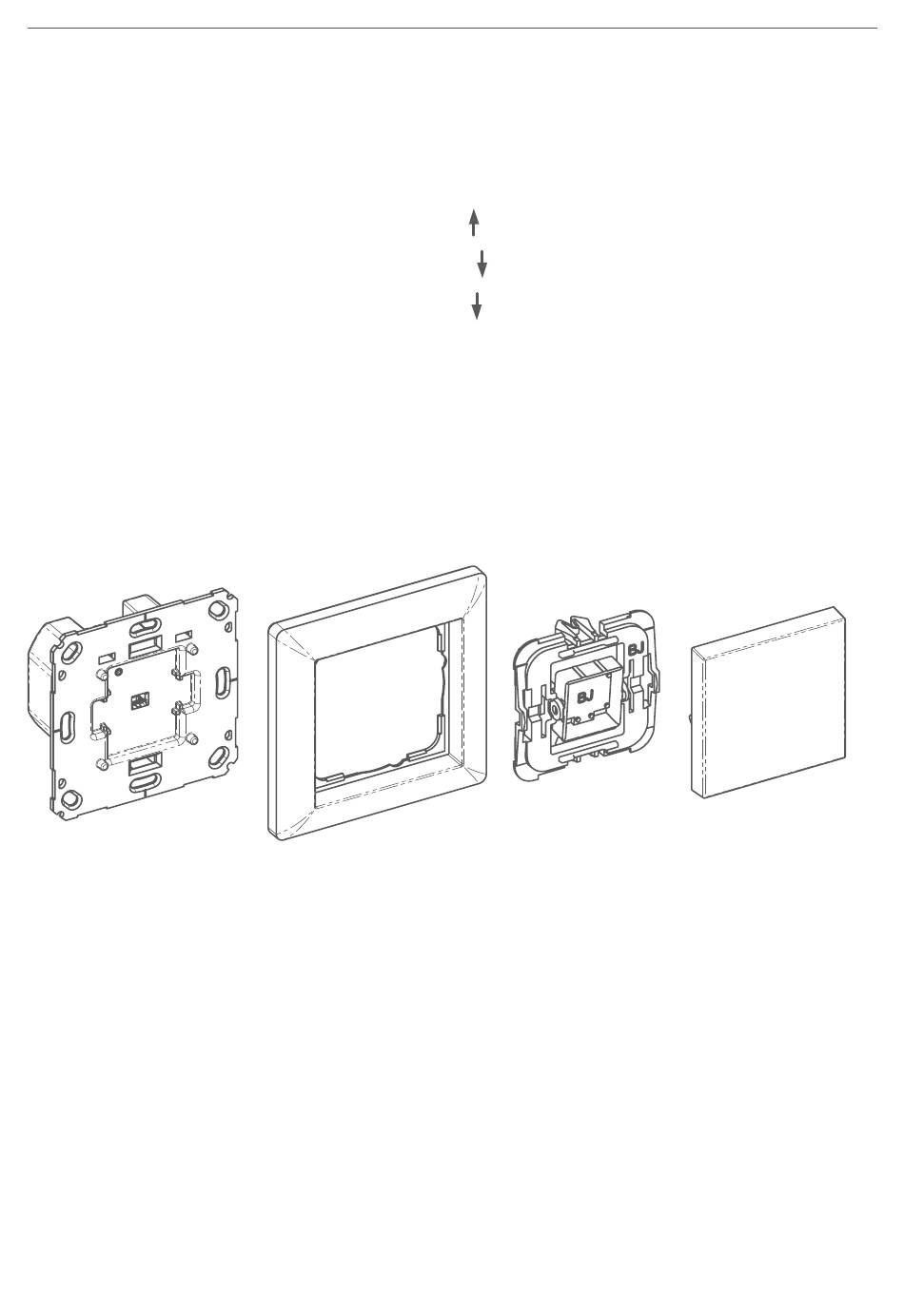

Installation overview

Homematic IP
Shutter Actuator
Example for
existing frame
Function and device overview
Example for
adapter
Example for
existing rocker
