Installation Instructions - Eneo HDB-2080Z03IR D Schnellinstallationsanleitung

Installation instructions

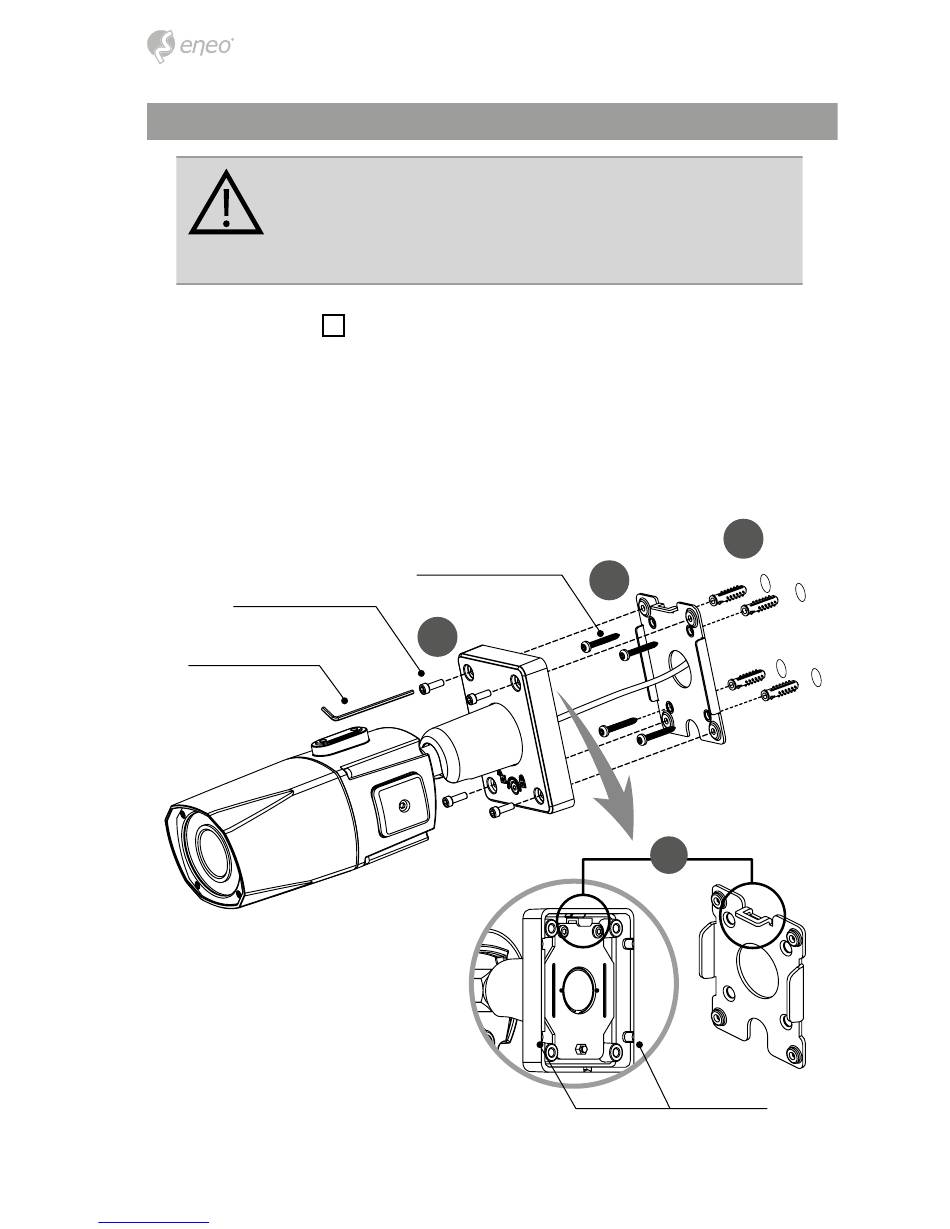

1. Locate the mounting template at the installation position and drill the ceiling or
2. Place the easy bracket on pre-drilled position and fix it through using mounting
3. Route the power cable to the connecting place. Hook up the camera bracket with
4. Fix the camera bracket through using assembly screws (4x14mm).
5. Set the camera's viewing angle.
6. Put the sunshield to the camera unit and tighten the sunshield-bolts.
16
Downloaded from www.Manualslib.com
CAUTION: The camera's base should be attached to a structural
object, such as concrete, hard wood, wall stud or ceiling rafter
that supports the weight of the camera. If necessary use appro-
priate mounting material (e.g. anchors) instead of the material
enclosed with the camera.
wall if needed. The easy bracket can not be installed on the ceiling.
i
screws(4x30mm). Skip this step when an easy bracket is not installed.
the easy bracket as illustrated below.
Assembly Screw: 4x14mm
Torque Wrench
manuals search engine
Mounting Screw 1: 4x30mm
4
1
2
3
Cable exit
