Power Supply Connections - Eneo HDB-2080Z03IR D Schnellinstallationsanleitung

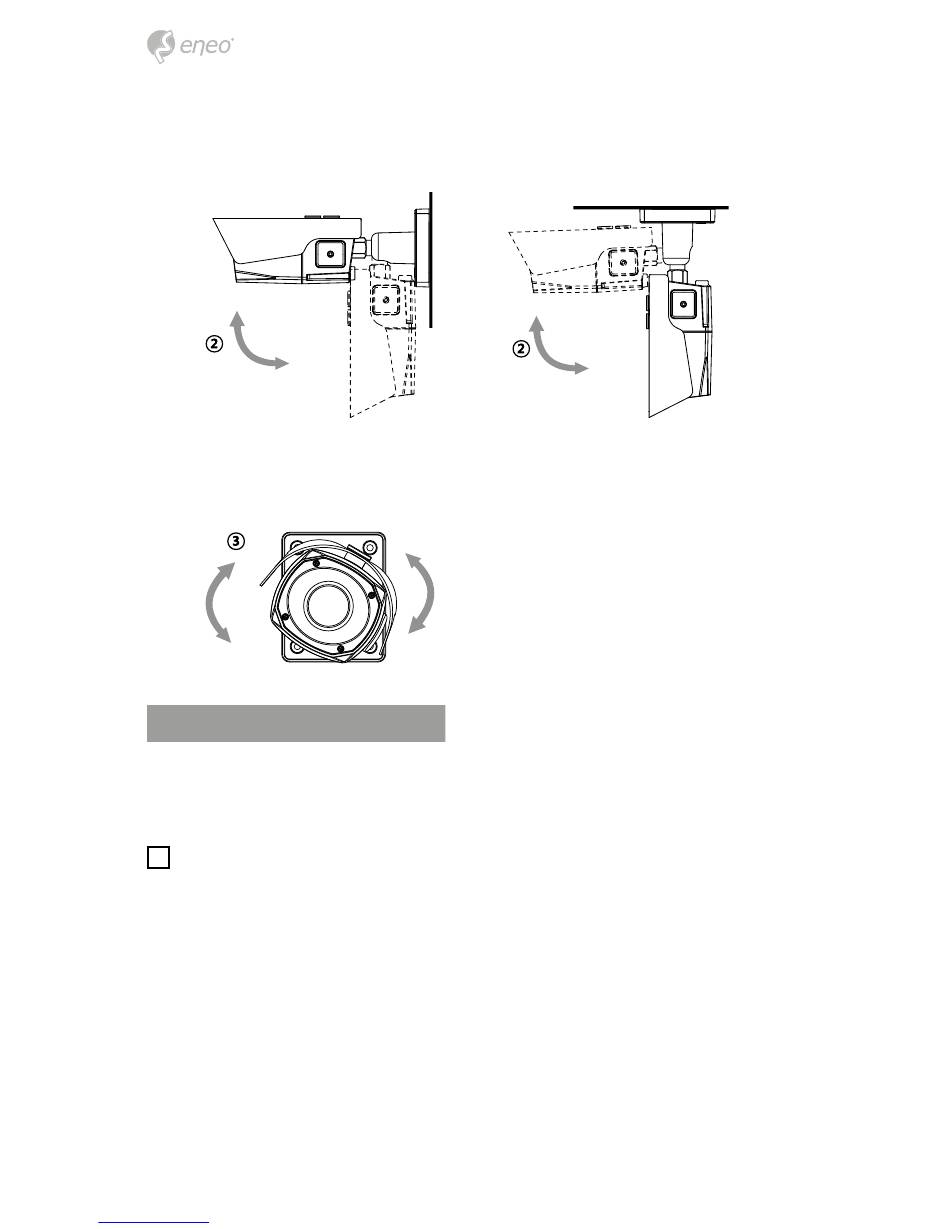

2. Tilt limit: Tilt is limited to 0°(2°) min ~ 90° max. for wall(ceiling) installation respec-
on the wall
3. Inclination limit (Horizontal image alignment): Inclination limited to +/-90° max.

Power supply connections

Make sure the power is removed before the installation. Camera can work with either
24AC or 12VDC, dual voltage power. Primary and secondary grounds are completely
isolated to avoid the possible ground-loop problems.
i In case that HD-SDI/EX-SDI Inputs are not supported in monitor, please use HD-SDI/
EX-SDI Converter to connect HD-SDI/EX-SDI cable with monitor. Some computer moni-
tors or TVs may not support 30p/25p. In this case, HD-SDI/EX-SDI DVR which can convert
the frame rate to 60p/50p is highly recommended. Please check specification of monitor
before installation.
