[Stopwatch function]
Stopwatch 1/20 second hand turns a full circle in a second at 1/20
second intervals.
Stopwatch minute hand turns a full circle in 60 minutes at one-minute
intervals.
Stopwatch second hand turns a full circle in 60 seconds at 1/5 sec.
intervals.
Stopwatch hour hand turns a full circle in 12 hours while moving
correspondingly with the stopwatch minute hand.
(6) Additional function: Reset switch, accumulated elapsed time counter, split
time function, battery end of life indicator
(7) Battery: SR927SW ; 1 piece
(8) Battery life: Approx. 3 years if the stopwatch is used for less than 2 hours
a day.
(9) IC (Integrated Circuit): C-MOS-1C ; 1 piece
* The above specifications are subject to change without notice for improvement.

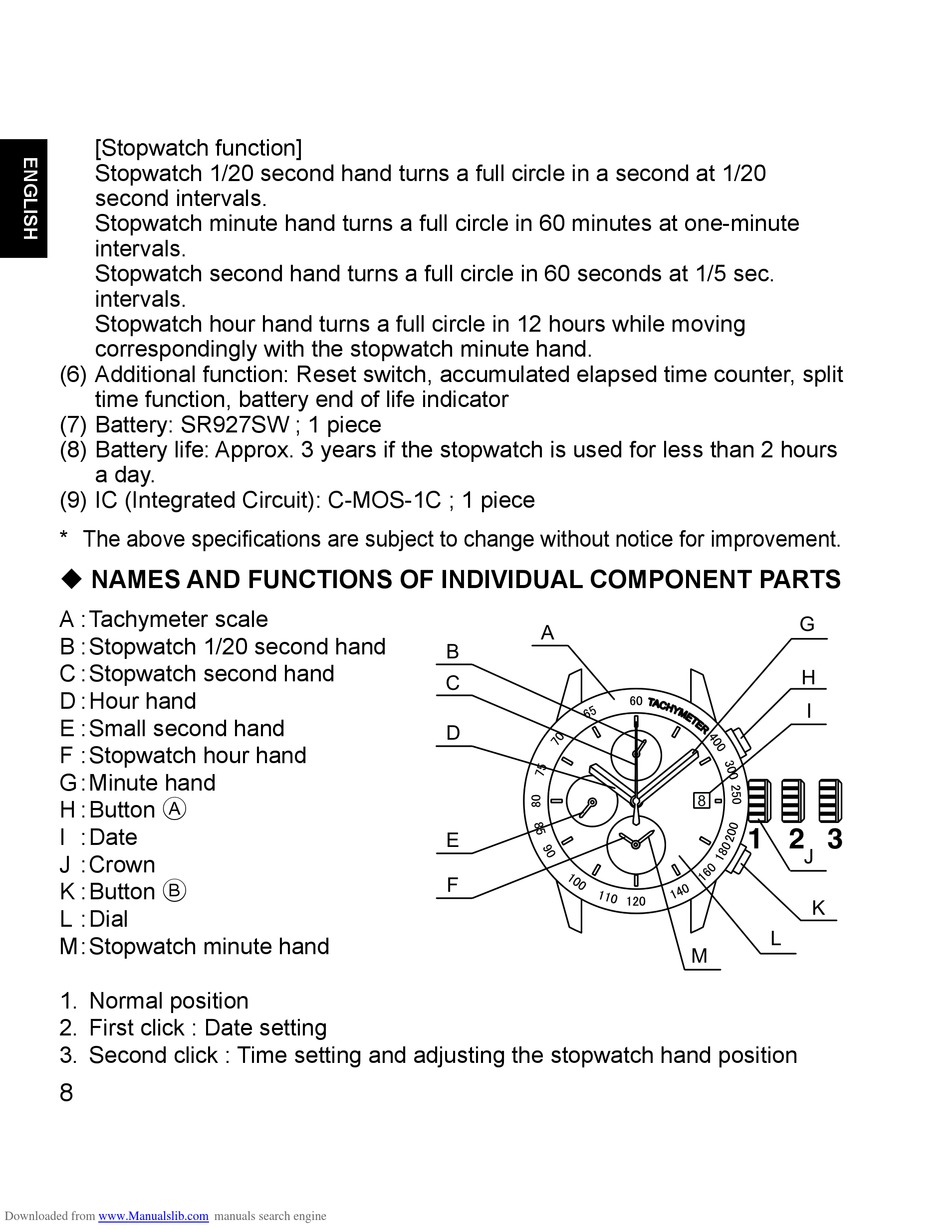

 NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS
A : Tachymeter scale
B : Stopwatch 1/20 second hand
C : Stopwatch second hand
D : Hour hand
E : Small second hand
F : Stopwatch hour hand
G : Minute hand
H : Button A
I : Date
J : Crown
K : Button B
L : Dial
M : Stopwatch minute hand
1. Normal position
2. First click : Date setting
3. Second click : Time setting and adjusting the stopwatch hand position
8
Downloaded from www.Manualslib.com manuals search engine
A
B
C
D
E
F
G
H
I
8
1 2 3
J
K
L
M
