Monocular Course Microscope Model 200 LED (115 V) 1013364
Monocular Course Microscope Model 200 LED (230 V) 1013142
Instruction Manual
07/13 ALF
•
For power supply use only electrical sockets
with ground contact.
The monocular course microscope allows two-
dimensional viewing of objects (thin sections of
plant or animal specimen) in 40x to 400x magni-
fication.
The microscope 1013364 is for operation with a
mains voltage of 115 V (±10%), and the
1013142 unit is for operation with 230 V (±10%).
Stand: Robust, all metal stand with arm perma-
nently connected to the base. Focussing by
means of separate knobs for coarse and fine
adjustment located on either side of the stand
Downloaded from
www.Manualslib.com
®
1. Safety notes
2. Description, technical data
manuals search engine
PHYSICS
and operated by rack and pinion drive with
dovetail teeth, adjustable stopper for protecting
the object stage and objective
Tube: Monocular inclined 45°, head rotation
360°
Eyepiece: Widefield eyepiece WF 10x 18 mm
Objectives: Revolver with 3 DIN achromatic
objectives 4x / 0.10, 10x / 0.25, 40x / 0.65 (with
specimen protection)
Magnification: 40x, 100x, 400x
Object stage: 127 x 132 mm
clips
Illumination: Adjustable LED lighting integrated
in base
Power supply: Via plug-in power supply 6 V
DC, 200 mA
Mains connection: 1013364: 115 V, 50/60 Hz;
1013142: 230 V, 50/60 Hz
1

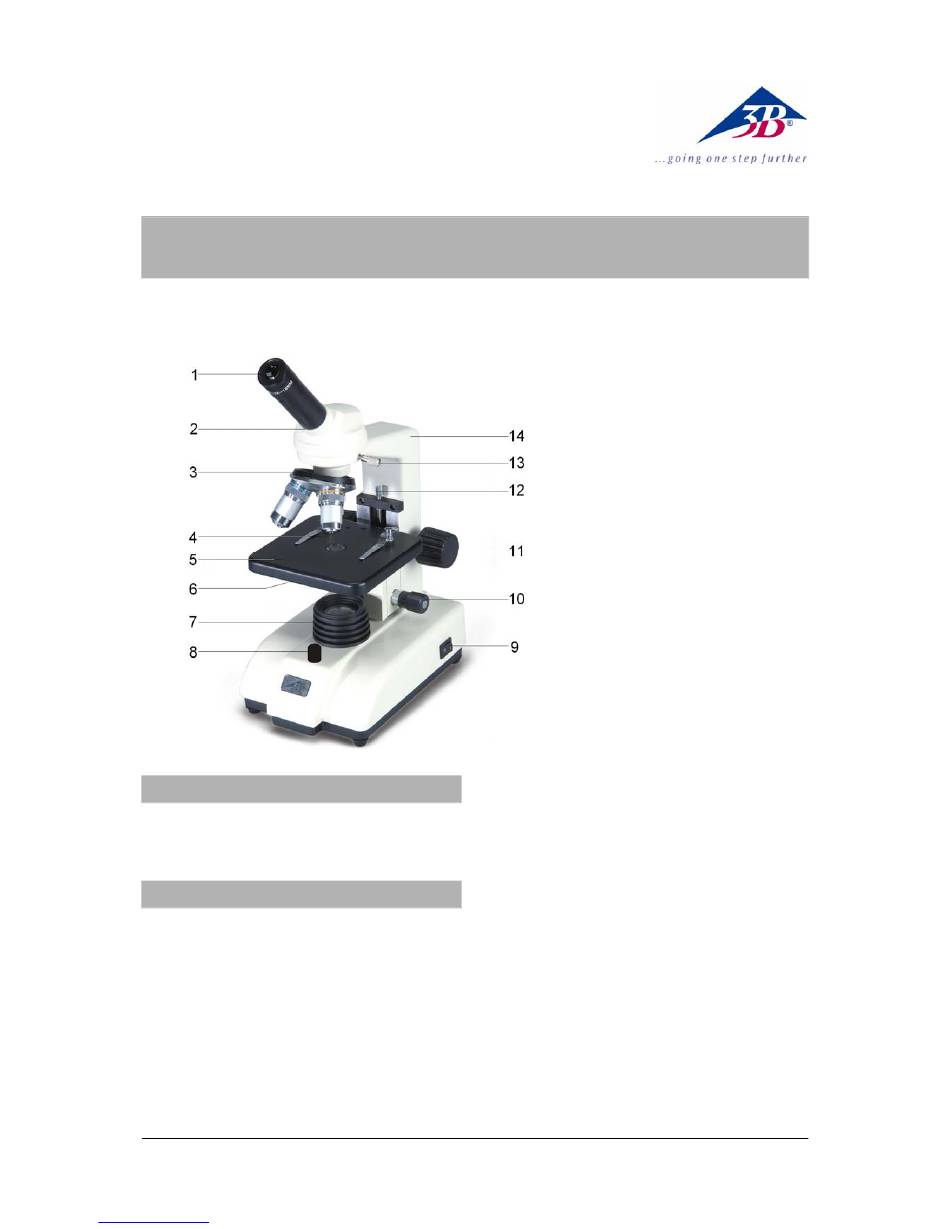

1 Eyepiece
2 Tube
3 Revolver with objectives
4 Specimen clips
5 Object stage
6 Condensor with iris
diaphragm and filter holder
7 Lamp housing
8 Illumination control
9 Mains switch
10 Adjustment knob for fine
focusing
11 Adjustment knob for coarse
focusing
12 Lock screw for object stage
13 Head lock screw
14 Stand
2
with 2 specimen
