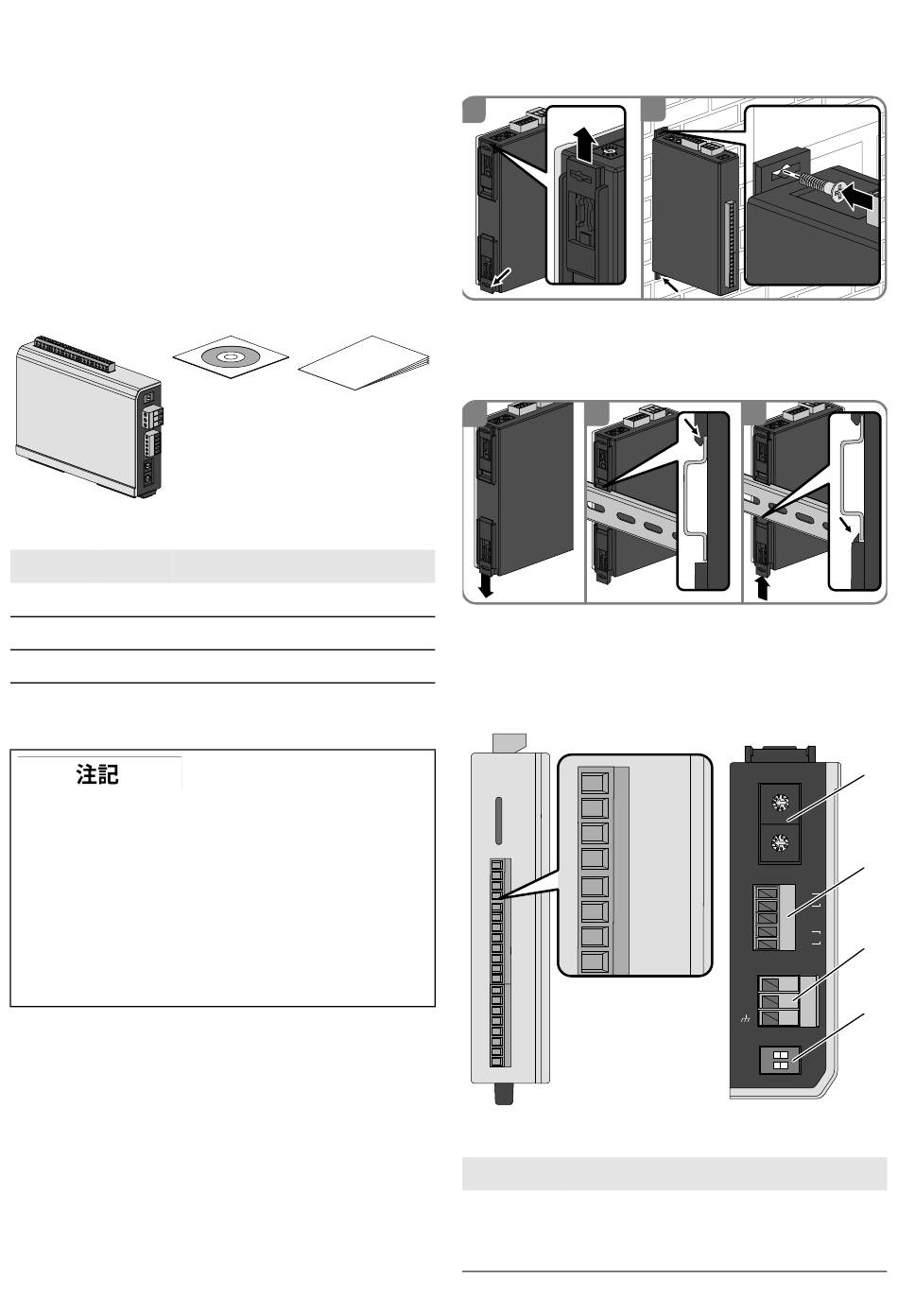

4 I/O Box
4 I/O Box
4.1 梱包内容
梱包内容に、注文品がすべて揃っていることと、
外から見える傷がないことを確認してください。
部品に抜けや損傷がある場合には、取扱販売店ま
でご連絡ください。
梱包内容には、製品の設置に必要のない部品が含
まれていることもあります。
A
図 8I/O Box の梱包内容
位置
数量
表記
A
1
I/O Box
B
1
CD
C
1
設置クイックガイド
4.2 I/O Box の取り付け
水分の浸入による本体とケーブルの損傷
Inverter Manager と I/O Box は防水加工されていま
せん。そのため、水分が浸入して本体とケーブ
ルが損傷する可能性があります。
• Inverter Manager と I/O Box は必ず屋内の湿り
気のない場所か、少なくとも保護等級 IP54
(NEMA 3R)を満たす防水加工された筐体内
に設置してください。
162
IMVIOBOX-IA-xx-18
C
B
4.2.1 方法 1:壁面に取り付ける
1
4.2.2 方法 2:DIN レールに取り付
ける
2
1
4.3 I/O Box への接続
4.3.1 概要
A
COM0
DI0
DI1
DI2
DI3
GND
DI4
DI5
DI6
DI7
COM1
DIO0
DIO1
DIO2
DIO3
GND
DIO4
DIO5
DIO6
DIO7
図 9I/O Box への接続の概要
位置
表記
A
デジタル信号源の入力端子(DI0 か
ら DI5 の入力端子を使用可能、他の
端子は機能しません)
SMA Solar Technology AG
2
3
COM0
DI0
DI1
DI2
DI3
D1+
GND
D1-
GND
DI4
D2+
D2-
DI5
V+
V-
Rep
Dual
Run
Initial
設置説明書
B
X10
X1
C
P1
P2
D
E
