Installation and Operating Instructions

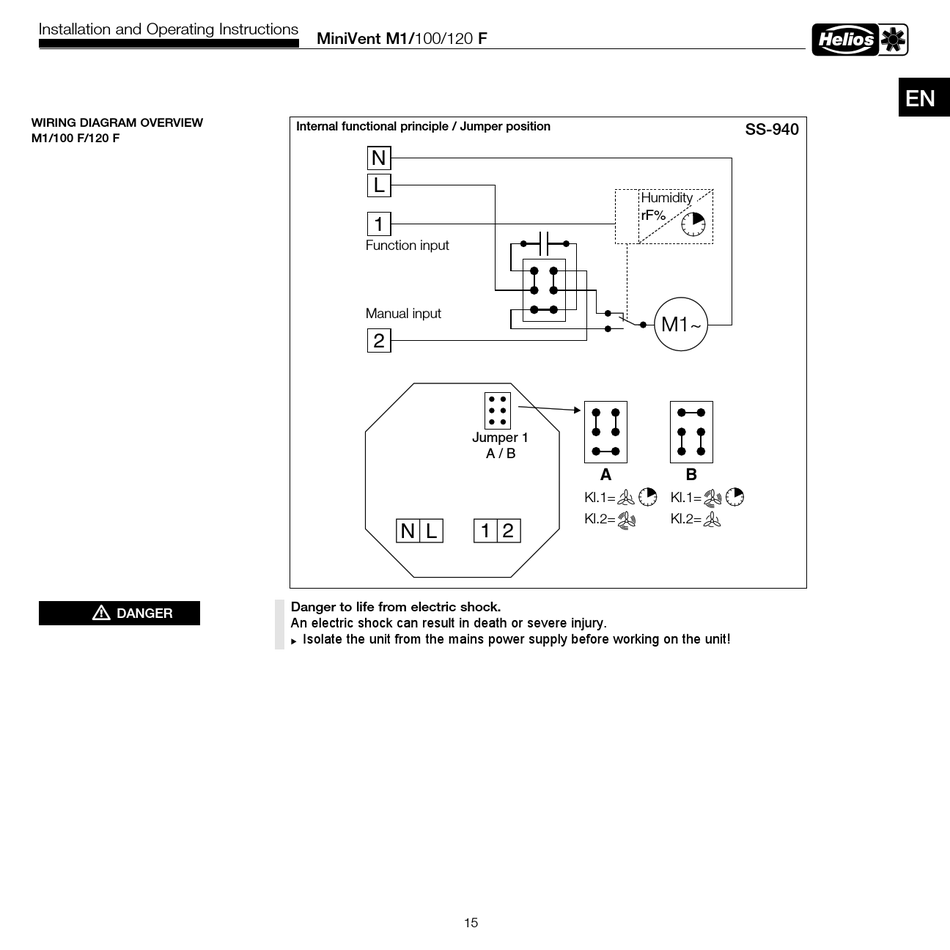

WIRING DIAGRAM OVERVIEW
M1/100 F/120 F
m
DANGER
MiniVent M1/100/120 F
Internal functional principle / Jumper position
M1/... F, Prinzip
N
L
1
Function input
Funktions-
Eingang
Manual input
Manueller-Eingang
2
N L
Danger to life from electric shock .
An electric shock can result in death or severe injury .
 Isolate the unit from the mains power supply before working on the unit !
15
Humidity
Feuchte
rF%
Jumper 1
A / B
A
Kl.1=
Kl.2=
1 2
SS-940 SS-940
M1~
B
Kl.1=
Kl.2=
EN
