MULTIFUNCTIONAL LCD AND NAVIGATION
The LCD dispose of max three display lines and is regrouped in 3 different menus to ensure the best compromise between
simplest use for the deployment, installation and configuration process. The different menus give access to all data required
for monitoring and maintenance of the FNet system.
• FNet Coordinator is actually in installation process and at least one endpoint has already been installed in the
Network. It indicates that the installation process has not been finished and still needs to run the procedure of
« Build/Sychronize the Network »
• It indicates the last GPRS signal level and will be actualized after each GPRS connection. If the GPRS connection
failed due to missing signal, the icon disappears. One blinking bar represents a very poor GRPRS signal.
One bar is low GPRS signal and 3 bars is high.
• Coordinator is equipped with GPRS-Modem option
• Coordinator is not equipped with AC 110V...230 V - 50/60Hz
• Coordinator is processing a task in the corresponding menu.

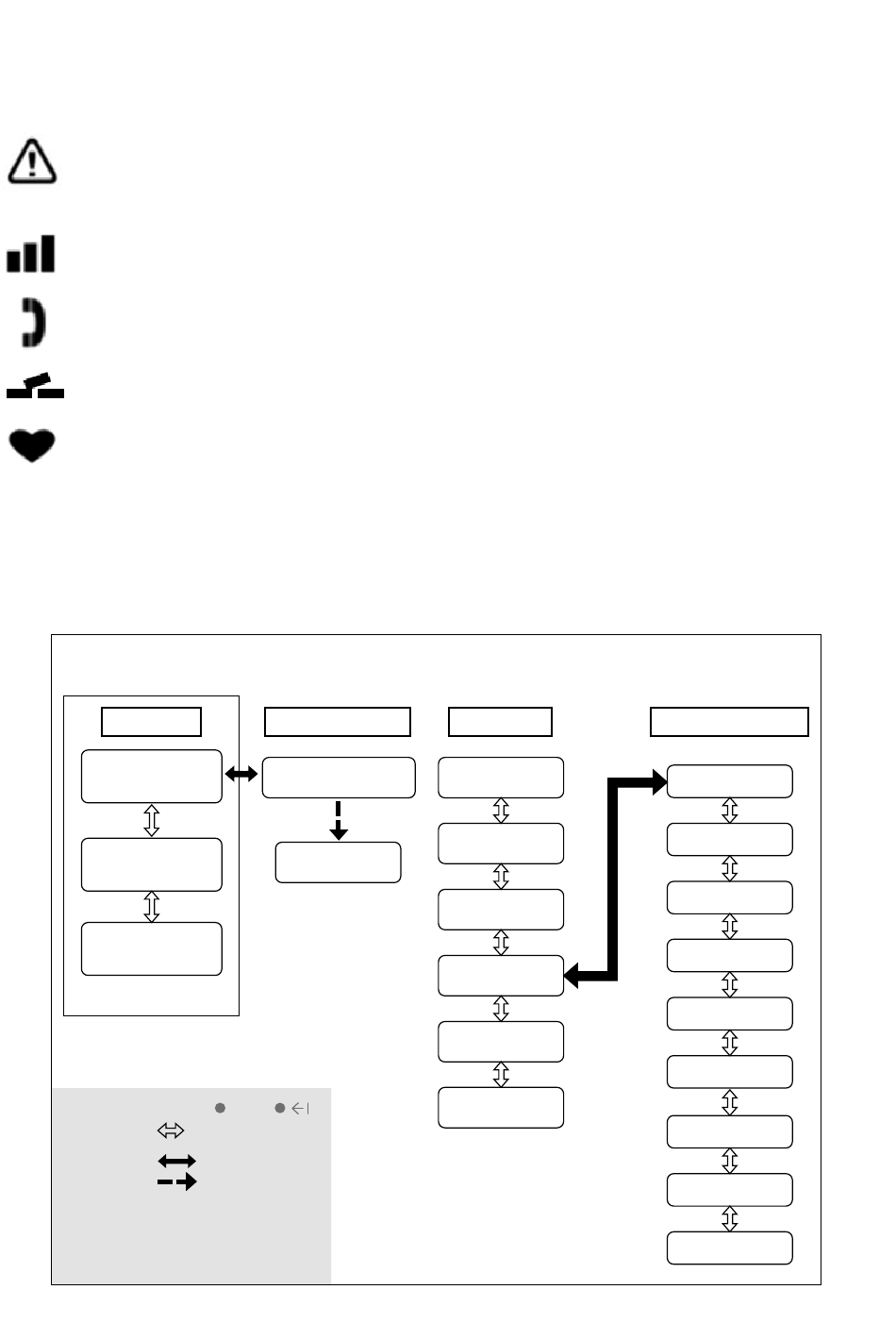

The following diagram describes the Display sequences and the navigation inside the different menus.
SCREEN NAVIGATION ON FNET COORDINATOR
Start menu
Commissioning
Test GPRS**
Information
Short press:
Long press:
Automatic:
* : function only available in OPERATING (display available)
** : function only available with a GPRS board connected
but always displayed
time out on each menu entered is
- Global approx. 2 min
- In Install or search MIU : time out is 5h
Date & Time Menu
YYYY/MM/DD hh:mm:ss
2016/05/26
00:02:08
Search others FNet
(ESC)
Hoch
Runter
ESC
ENTER
Main menu
Pairing router/s
Scan router link
Install MIU
Build network
Maintenance menu
Coord information
Maintenance menu
Install FNet report
Install Node report
Lock the network*
Unlock the network*
Test GPRS**
Adjust Date/Time
Scan others FNet
Scan MIU
Change battery tash
